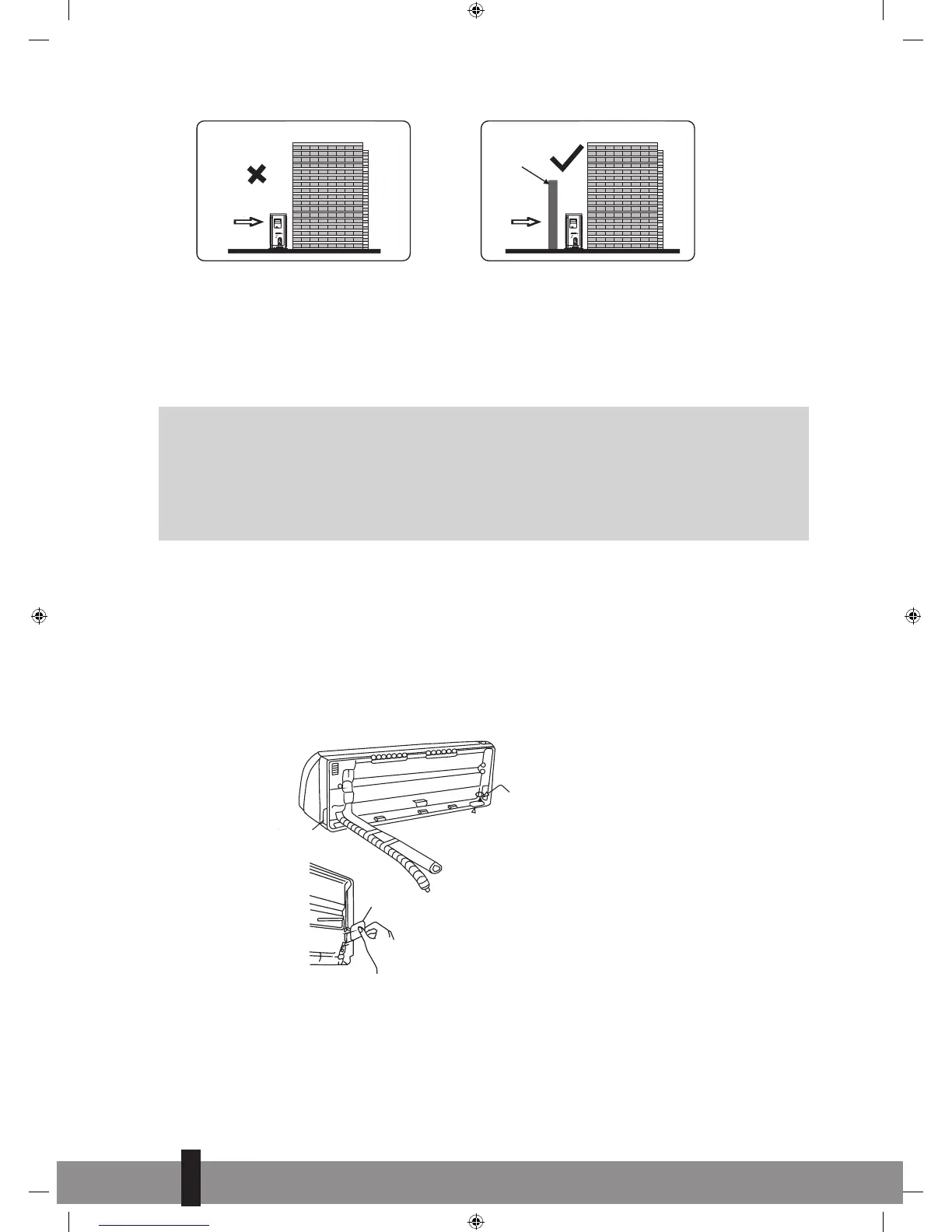

26
Strong
wind
Strong
wind
Barrier
Incorrect
Correct
Figure 6
Strong
wind
Strong
wind
Wall
Incorrect Correct
• If the exterior unit is installed on a roofing structure or exterior wall then it can result in bothersome
noise and vibrations.
• Ensure that the exterior unit can be attached to a stable substructure.
G
ATTENTION
If need suspending installation, the installation bracket should accord with all technical
requirements. The installation wall should be strong enough or actions to reinforce should be
taken. The connection between bracket and wall, bracket and the air conditioner should be firm,
stable and reliable. In case of any doubts or uncertainty do not attempt to install the unit but
have the support calculated and engineered by a skilled engineer.
5. POSSIBILITIES FOR INSTALLING THE PIPING FROM THE INTERIOR UNIT TO
THE EXTERIOR UNIT.
• The piping can be connected exiting from the left rear or right rear of the interior unit. Remove the
left or right breakout plate. See figure 7.
• The piping can be connected exiting from the left rear or right rear. See figure 7.
Cover for the right
piping
Cover for the left
piping
Cover for the piping
4
26
