S-JA2518
Left rear wall
hole 65mm
Right rear wall
hole 65mm
Indoor unit
outline
39mm
39mm
285mm
47.1mm
47.1mm
146.5mm
45mm 101.6mm
715mm
117.5mm115.6mm
233.1mm
398mm
6.2 Drilling the piping, condensation hose and cable feed-through.

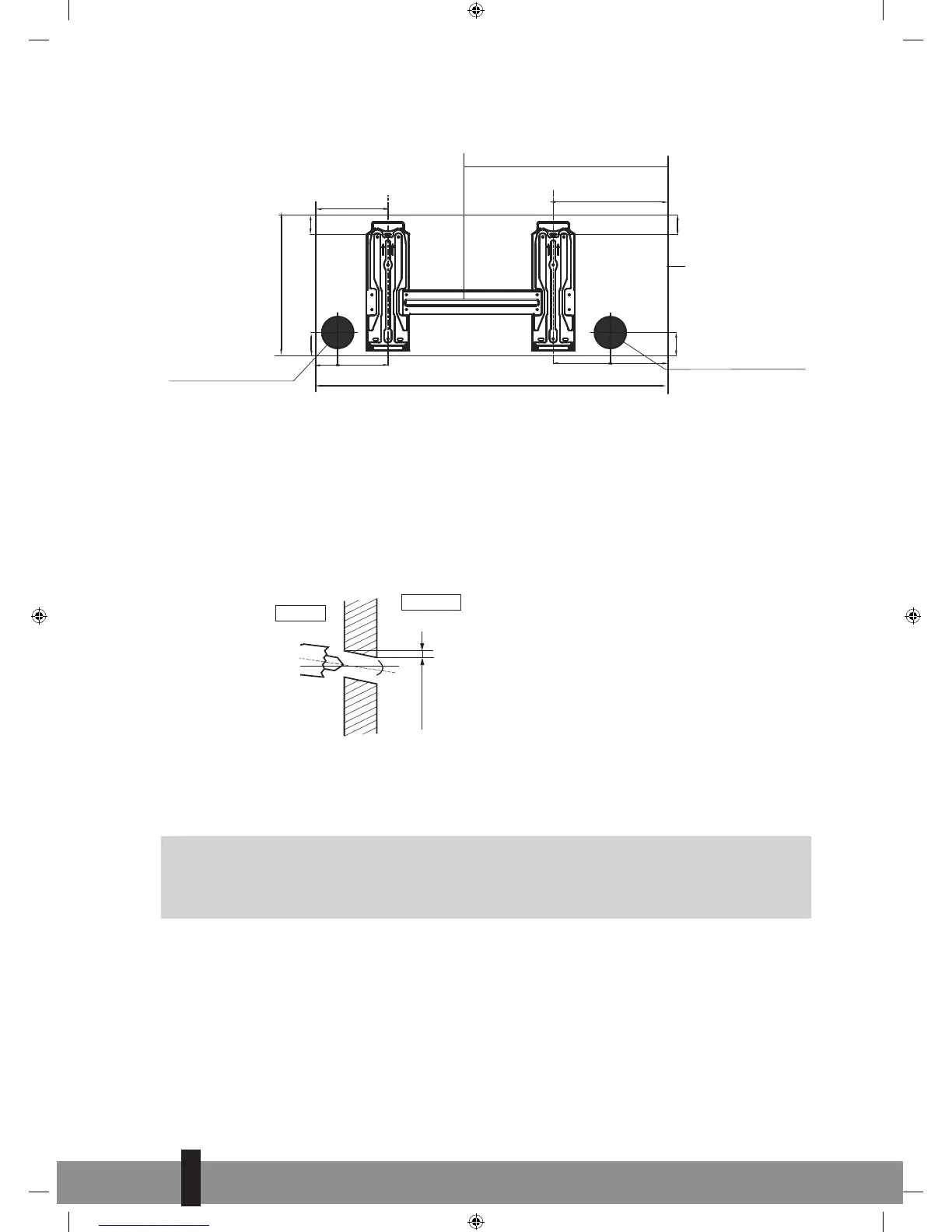

a. Determine the positions of the holes according to the diagram detailed in Fig. 9. Drill one (1) hole
(≥ 85 mm for S-JA2518 / ≥ 65 mm for S-JA2518) slanting slightly downwards to outdoor side, this will
prevent water to come indoors (fig 10).
b. Always use wall hole conduit when drilling metal grid, metal plate or the like.
Wall
Indoor
Outdoor
Figure 10
≥5°
5 - 7 mm
per 100 mm
7. CONNECTING THE COOLANT PIPES
G
TAKE CARE
Connecting the coolant pipes of an air conditioner must be carried out in accordance with the
applicable national regulations and laws. Connecting the coolant pipes may only be carried out
by an authorised fitter.
