t

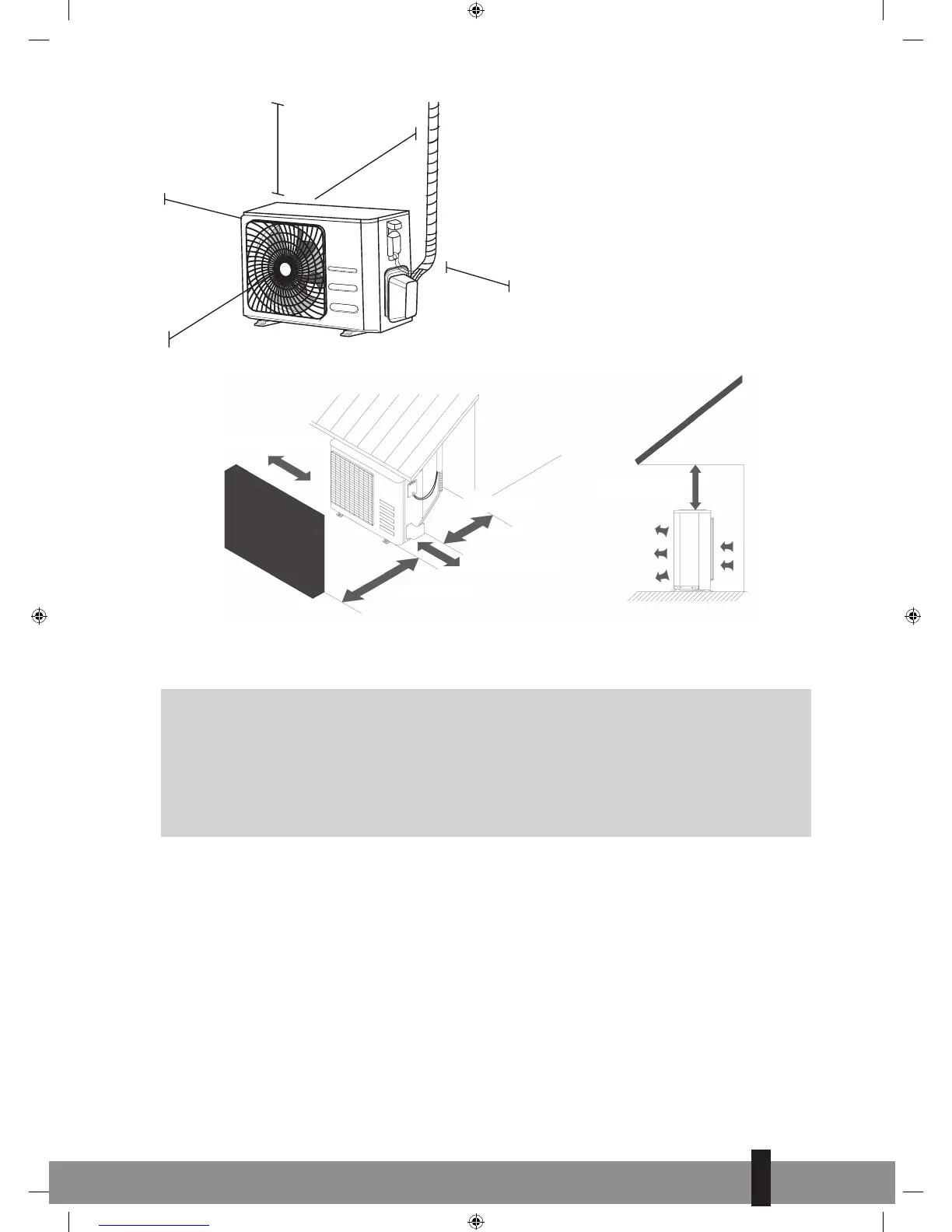

30cm (12in)
from back wall
Figure 5
More than 30cm
More than 200cm
More than 60cm
More than 30cm
More than 60cm
Fence or barrier
• When determining the location of the exterior unit take into account the possible location of the
interior unit. The interior and exterior units must be connected by pipes and cables.
G
TAKE CARE
For units with a capacity of up to 6.0 kW, the maximum pipe length between the inside and the
outside part is 20 metres. For units with a capacity > 6.0 kW, the maximum pipe length between
the inside and the outside part is 30 metres.
For units with a capacity of up to 6.0 kW, the maximum difference in height between the inside
and the outside part is 8 metres. For units with a capacity > 6.0 kW, the maximum difference in
height between the inside and the outside part is 20 metres.
• Do not place animals and plants or other obstacles in the path of the air inlet or outlet.
• Always install the air conditioner at an easily accessible location.
• Consult and follow local legislation regarding mounting and installation of air conditioner equip-
ment.
• In the case that the installation place is exposed to strong wind such as a seaside, make sure the fan
is operating properly by putting the unit lengthwise along the wall or using a dust or shield plates.
See picture 6.
