2 – Using SANsurfer Switch Manager
Using the Faceplate Display
59097-02 B 2-27
A
2.13
Using the Faceplate Display
The faceplate display shown in Figure 2-11 displays the switch name and
operational state, and port status. Consider the following functional elements of
the faceplate display:
Port Views and Status
Working with Ports
Faceplate Data Windows

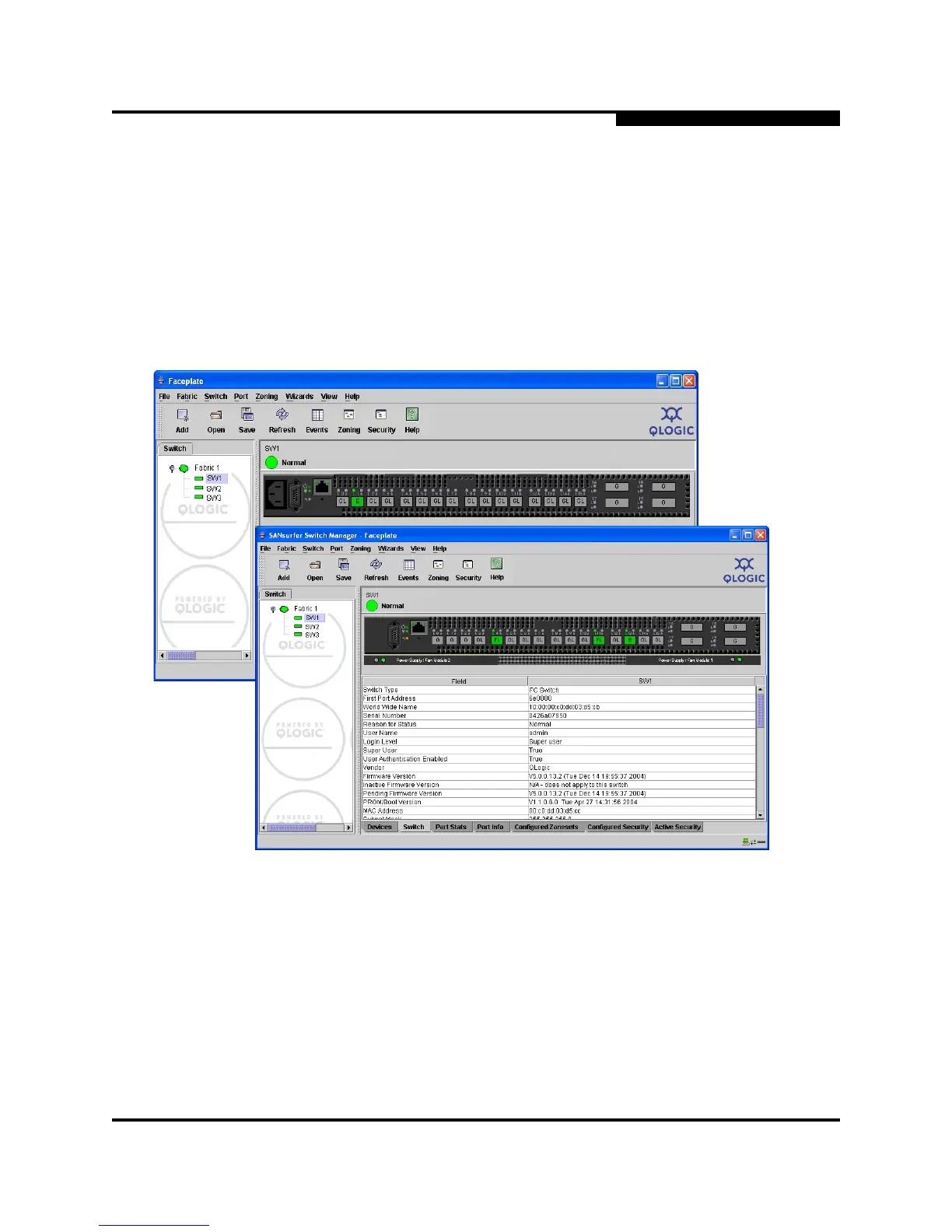

Figure 2-11. Faceplate Display
