2 – General Description
Serial Port
2-8 59265-00 A
S
Serial Port
The SANbox 5802V switch is equipped with an RS-232 serial port for
maintenance purposes as shown in Figure 2-6. You can manage the switch
through the serial port using the CLI.

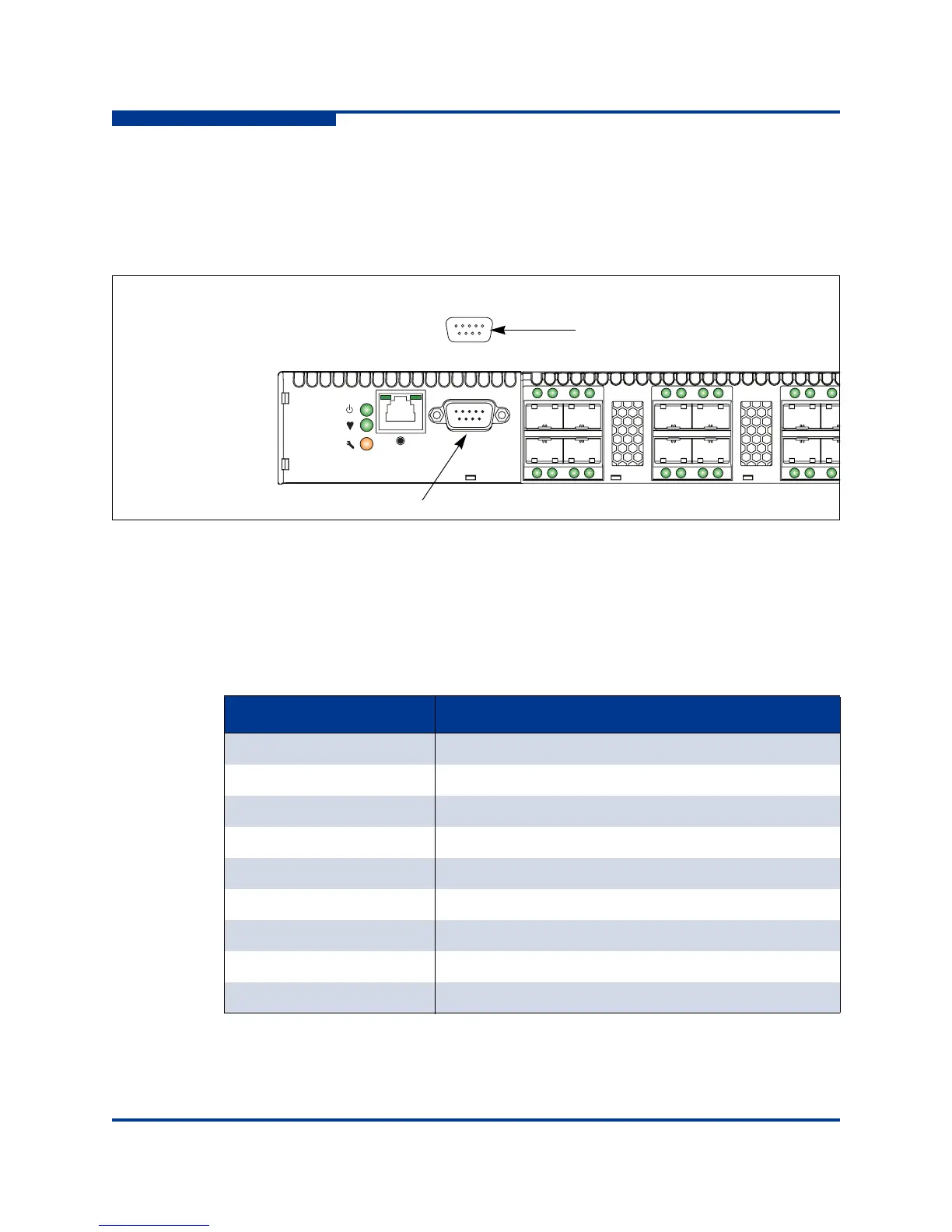

Figure 2-6 Serial Port and Pin Identification
The serial port requires a null-modem F/F DB9 cable. The pins on the switch
RS-232 connector are shown in Figure 2-6 and identified in Table 2-1. Refer to
“Connect the Workstation to the Switch” on page 4-12 for information about
connecting the management workstation through the serial port.
Table 2-1. Serial Port Pin Identification
Pin Number Description
1 Carrier Detect (DCD)
2 Receive Data (RxD)
3 Transmit Data (TxD)
4 Data Terminal Ready (DTR)
5 Signal Ground (GND)
6 Data Set Ready (DSR)
7 Request to Send (RTS)
8 Clear to Send (CTS)
9 Ring Indicator (RI)
15
69
RS-232 Connector
Pin Identification
Serial Port
