Power Supplies and Fans
The model 5802V switch has two, hot pluggable power supplies that convert
standard 100–240 VAC to DC voltages for the various switch circuits. Each power
supply has an AC power receptacle and two status LEDs as shown in Figure 2-7:
 The Power Supply Status LED (green) illuminates to indicate that the power
supply is receiving AC voltage and producing the proper DC voltages.
 The Power Supply Fault LED (amber) illuminates to indicate that a power
supply fault exists and requires attention.

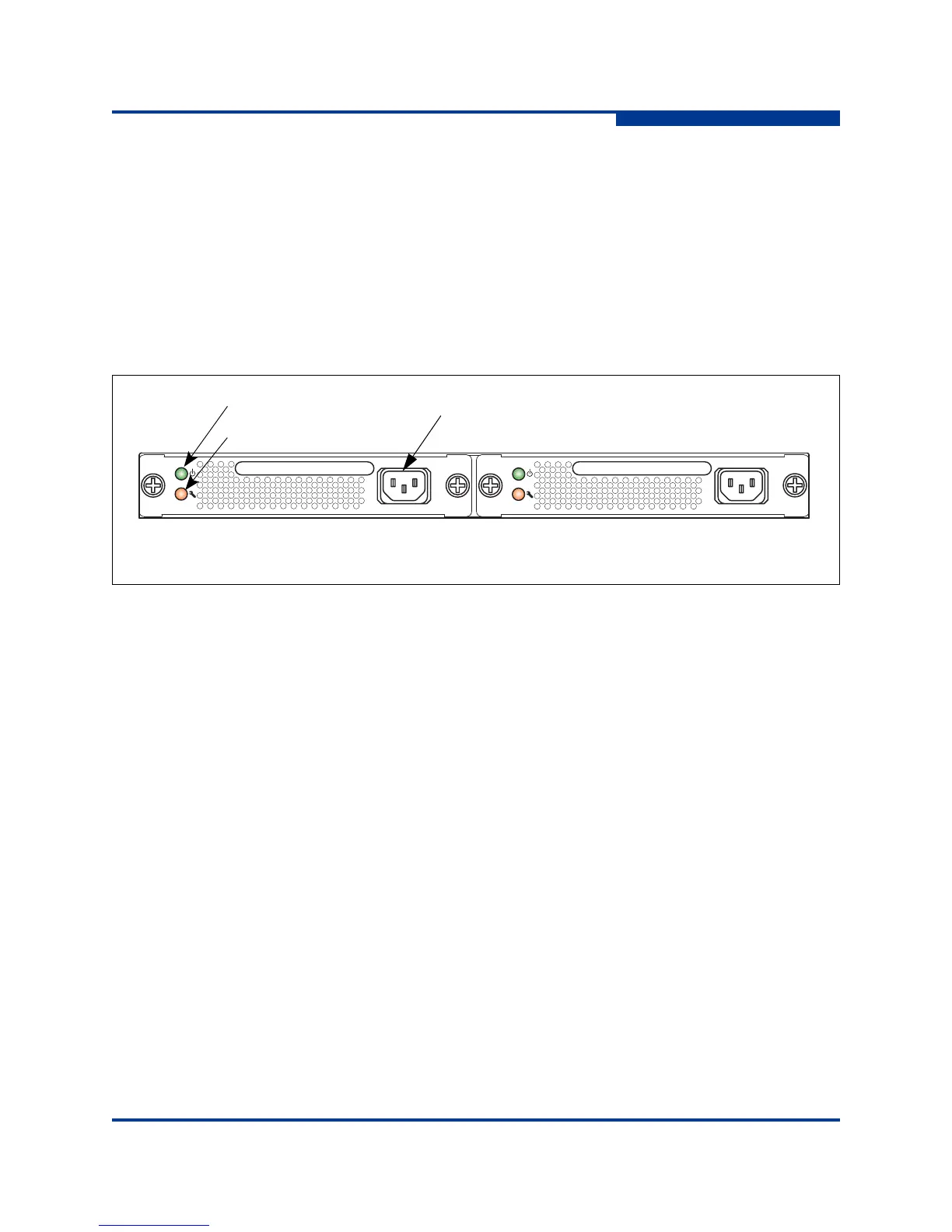

Figure 2-7 Power Supplies
Status LED (Green)
Fault LED (Amber)
AC Power
Receptacle
Power Supply 1 Power Supply 2
