3 – Planning
Multiple Chassis Fabrics
59265-00 A 3-11
A
Common Topologies
The SANbox 5802V switch supports the following topologies using the Fibre
Channel SFP ports:
Cascade Topology
Mesh Topology
MultiStage Topology
Cascade Topology
A cascade topology describes a fabric in which the switches are connected in
series. If you connect the last switch back to the first switch, you create a
cascade-with-a-loop topology as shown in Figure 3-6. The loop reduces latency
because any switch can route traffic in the shortest direction to any switch in the
loop. The loop also provides failover should a switch fail.
Using 20-port SANbox 5802V switches, the cascade fabric shown in Figure 3-6
has the following characteristics:
Each chassis link contributes up to 850 MB of bandwidth between chassis,
1700 MB in full duplex. However, because of the sequential structure, that
bandwidth will be shared by traffic between devices on other chassis.
Latency between any two ports is no more than two chassis hops.
Sixty-four Fibre Channel SFP ports are available for devices.

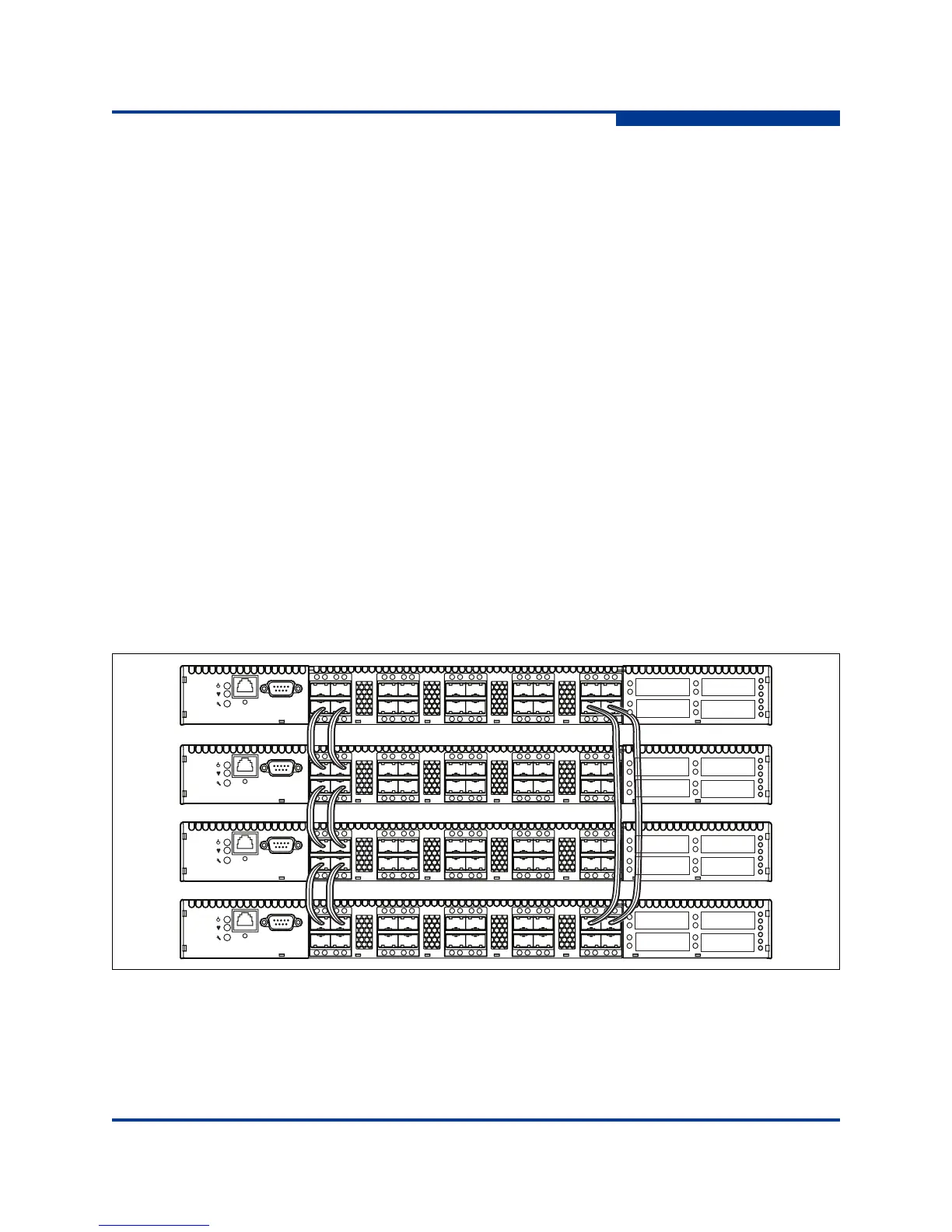

Figure 3-6 Cascade-with-a-Loop Topology
