Qlogic SANbox 5802V - Five Switch Stack; Four-Switch Stack

3 – Planning
Multiple Chassis Fabrics
59265-00 A 3-9
A

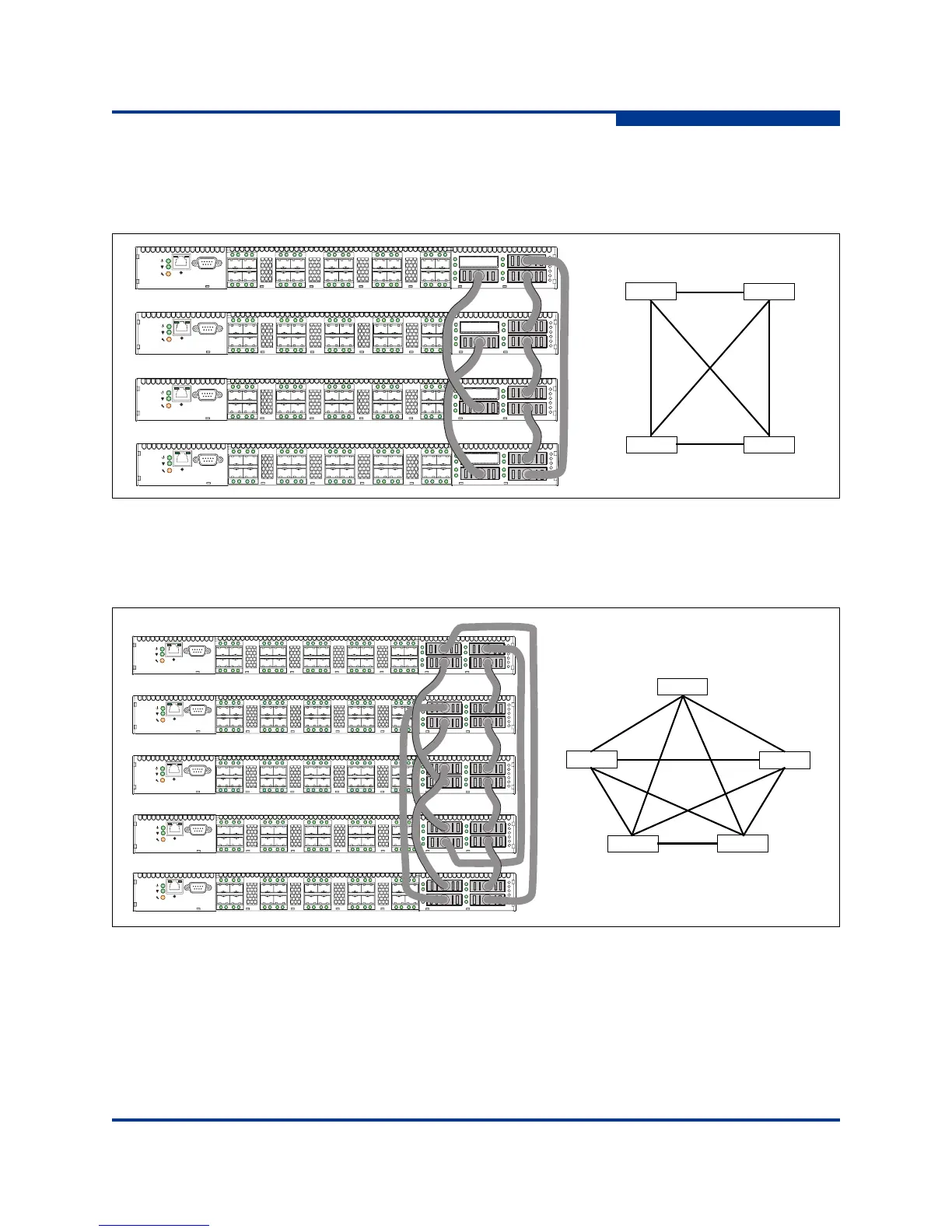

Figure 3-3 shows a four-switch stack of model 5802V switches using three 3-inch
and three 9-inch XPAK switch stacking cables. Eighty SFP ports are available for
devices.
Figure 3-3 Four-Switch Stack
Figure 3-4 shows a five-switch stack of model 5802V switches using ten XPAK
switch stacking cables. One hundred SFP ports are available for devices.
Figure 3-4 Five Switch Stack
