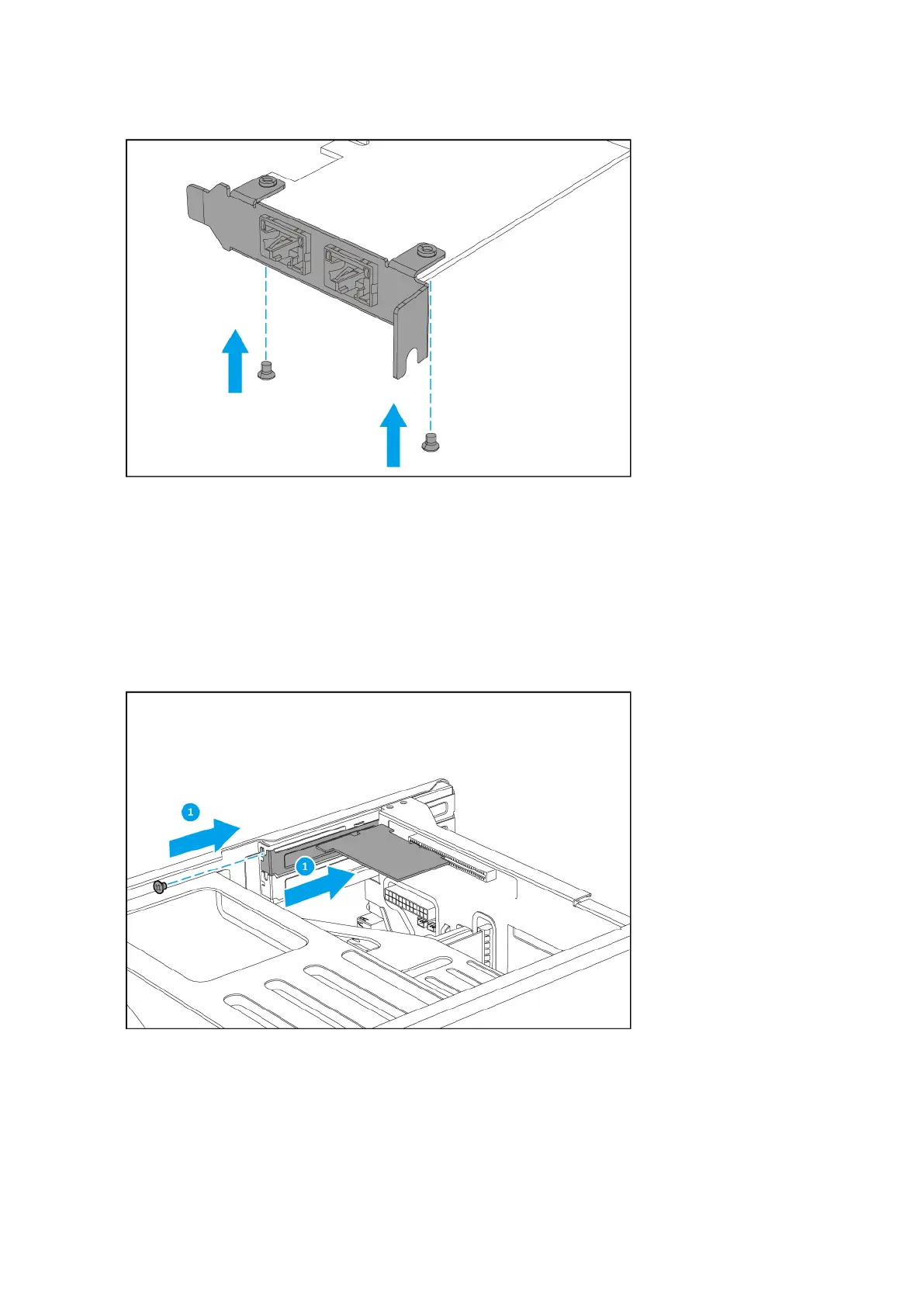

d. Verify that the bracket does not move.
8. Install the expansion card.
a. Hold the card by the edges.
b. Insert the card into the slot.
c. Attach the screw.
PCIe 3.0 x8
TS-1677X User Guide
Installation and Configuration 23
