QNAP TS-231 User Manual

93

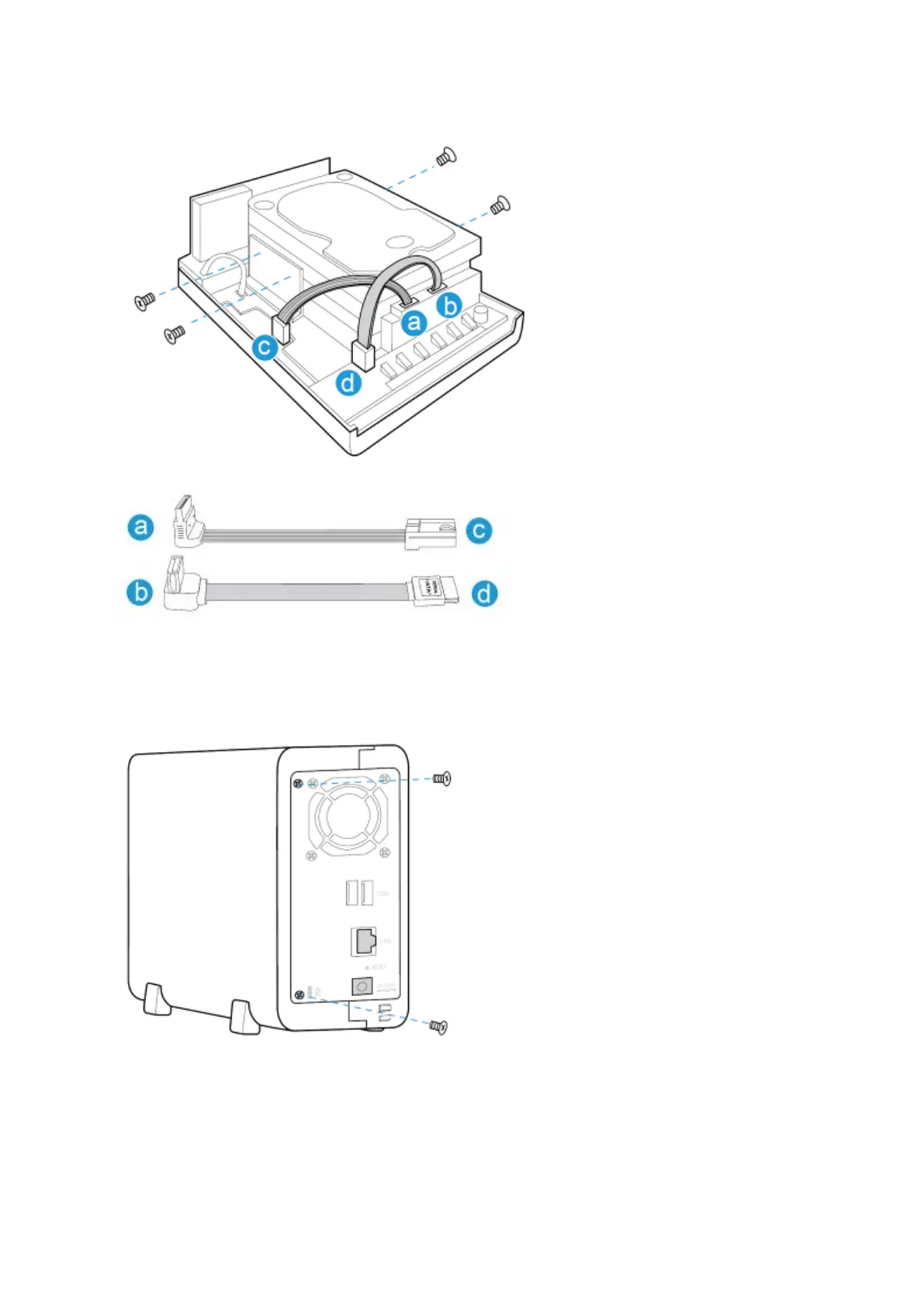

3. After installing the hard drives, cover the NAS with the case cover and fasten the round
head screws. Then, place the NAS vertically on the stands.
7.1.6. TAS-168, TAS-268, TS-128, TS-228
1. Remove the hand screw and the top cover.

QNAP TS-231 Specifications

General

Flash Memory	512MB
Drive Bays	2
LED Indicators	Status, LAN, USB, HDD1, HDD2
Form Factor	Tower
Power Supply	External Power Adapter, 60W, 100-240V
CPU	Annapurna Labs Alpine AL-212 1.7 GHz dual-core
RAM	512MB DDR3
Maximum Internal Raw Capacity	16TB (2 x 8TB HDD)
Network Interface	1 x Gigabit RJ45 Ethernet port
Buttons	Power, Reset
Weight	1.28 kg
Fan	1 x 70 mm, 12V DC
Operating System	QTS (Embedded Linux)
Power Consumption (In Operation)	15.6W
USB Ports	2 x USB 3.0
