QNAP TS-231 User Manual

94

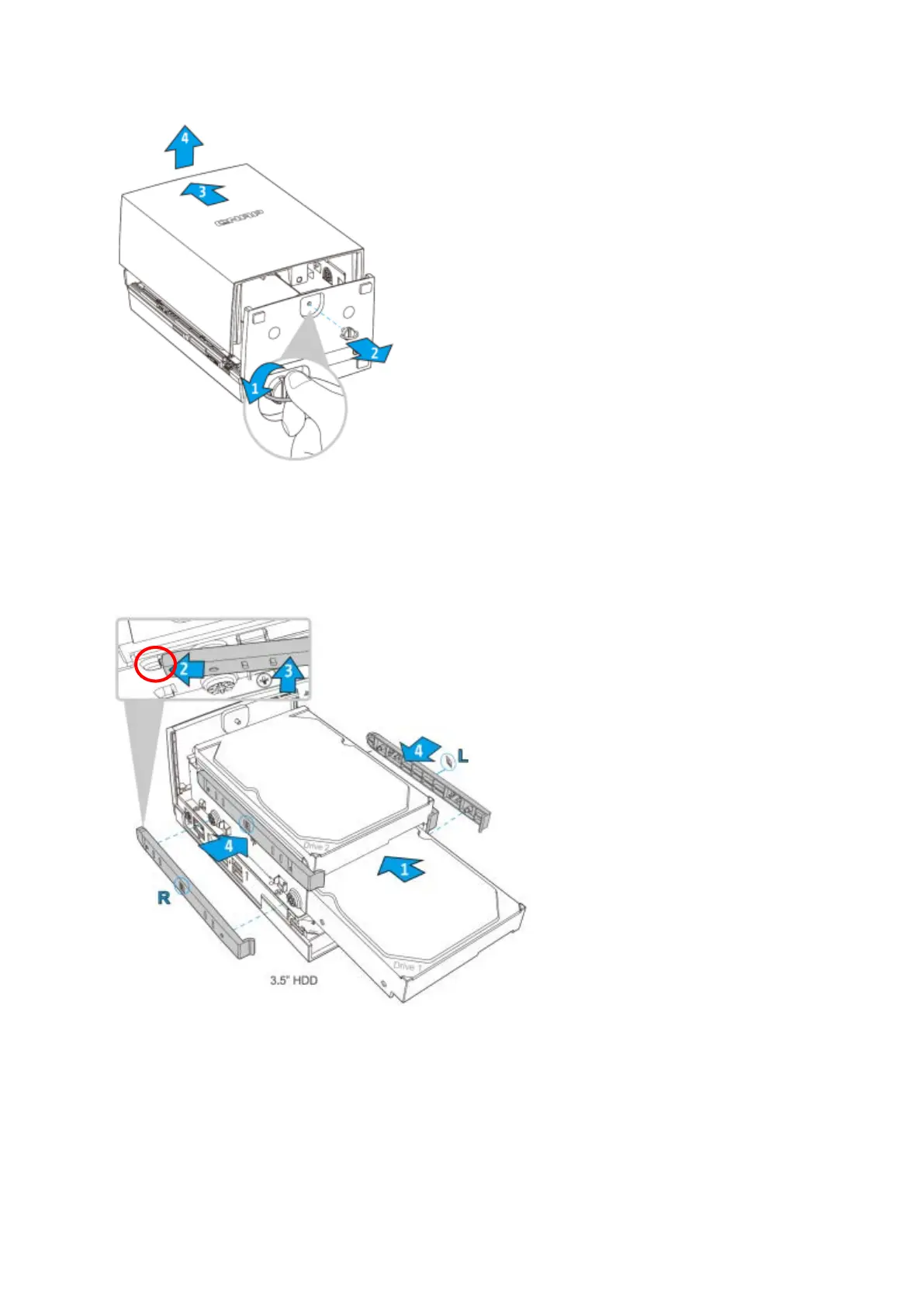

2. Put the hard drive in the hard drive cradle and slide it forwards to lock it into the SATA
connector. Clip in both brackets, slide the bracket into the hole in point 2 before pressing
the bracket towards the HDD (for the TAS-268, repeat the same step for the second
drive.)
3. Align point a on the case cover with point b on the front of the NAS (see figure below).
Push forward the case cover (step 2) and fasten the toolless screw to secure the case
cover.

QNAP TS-231 Specifications

General

Flash Memory	512MB
Drive Bays	2
LED Indicators	Status, LAN, USB, HDD1, HDD2
Form Factor	Tower
Power Supply	External Power Adapter, 60W, 100-240V
CPU	Annapurna Labs Alpine AL-212 1.7 GHz dual-core
RAM	512MB DDR3
Maximum Internal Raw Capacity	16TB (2 x 8TB HDD)
Network Interface	1 x Gigabit RJ45 Ethernet port
Buttons	Power, Reset
Weight	1.28 kg
Fan	1 x 70 mm, 12V DC
Operating System	QTS (Embedded Linux)
Power Consumption (In Operation)	15.6W
USB Ports	2 x USB 3.0
