b. Remove the screws that secure the system board tray to the bottom of the chassis.
Note
• The at head M3x4 screws require a Phillips #2 screwdriver.
• A torque of 5 kgf.cm (4.34 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
c. Place the chassis in its normal upright position.

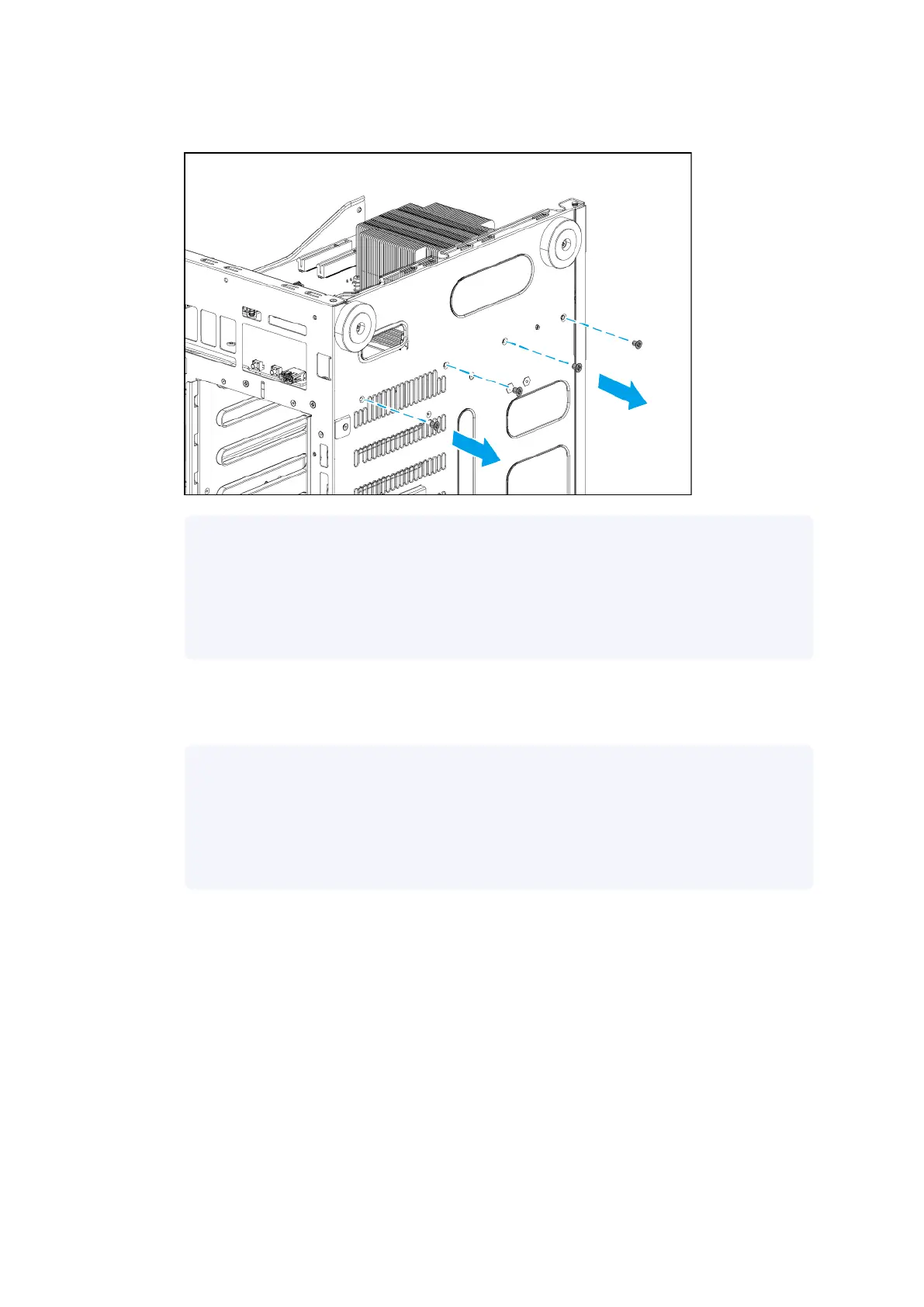

d. Remove the screws that secure the system board tray to the front of the chassis.
Note
• The at head M3x4 screws require a Phillips #2 screwdriver.
• A torque of 5 kgf.cm (4.34 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
| NAS Repair Manual
Category D NAS Models 113
