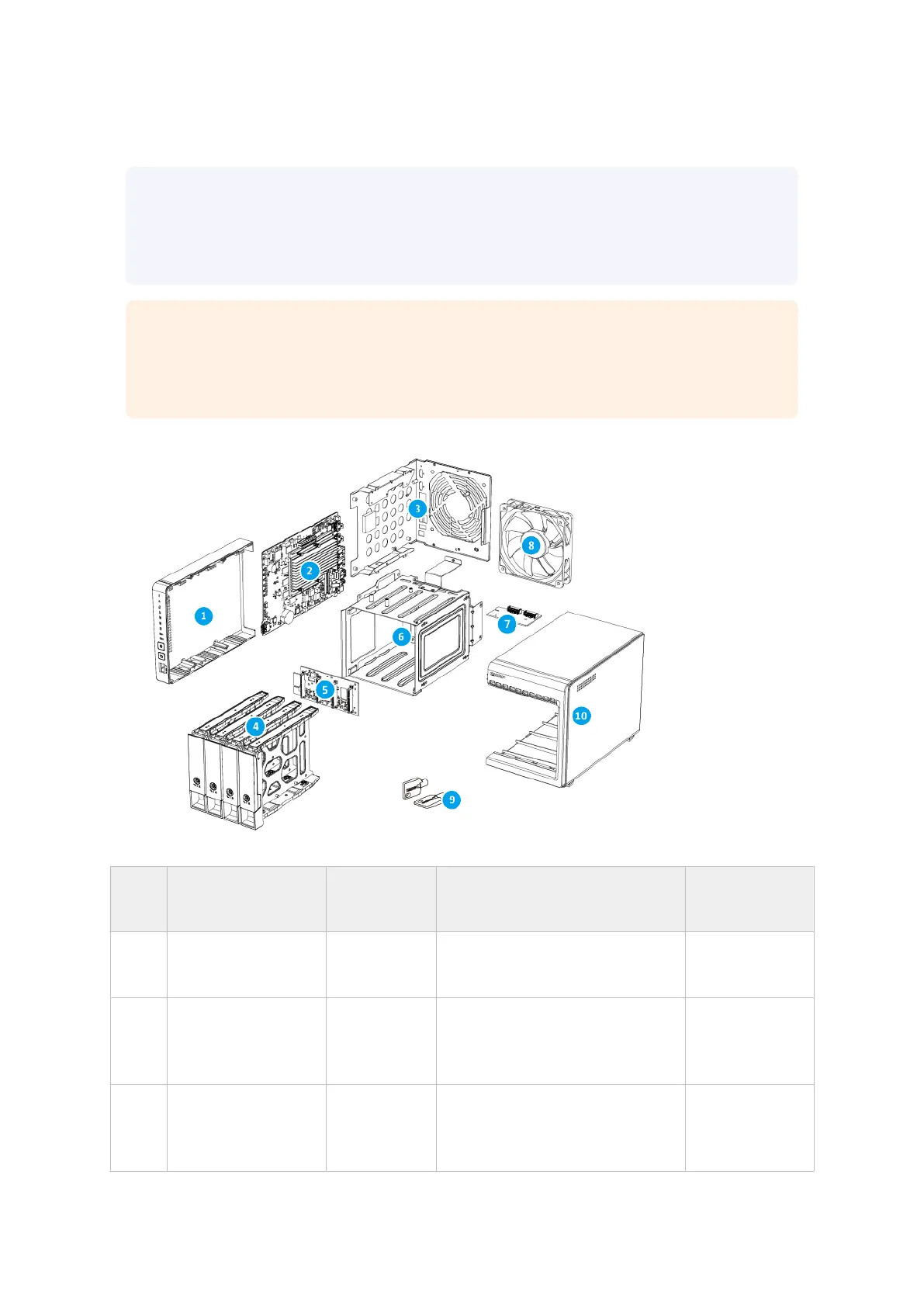

TS-453E components and screws
Note
The information presented here apply only to the representative model of the NAS category.
While all models within a NAS category have the same general structural design, their
components and screws may dier in size, quantity, and other specications.
Important
Recommended torque values are provided for electric screwdrivers. To avoid damage to the
screw or component, the actual torque setting should not exceed ± 0.5 kgf.cm (0.43 lbf.in) of
the recommended value, unless specied otherwise.
No. Component
(Quantity)
Screw Type
(Quantity)
Screwdriver
(Torque)
Attached To
1 Left panel
(1)
- - -
2 System board
(1)
Pan head
M3x5
(4)
Phillips #2
(7 kgf.cm / 6.08 lbf.in)
System board
tray
- HDMI ports on
system board
(2)
Flat head
M2x4
(2)
Phillips #1
(2 kgf.cm / 1.74 lbf.in)
System board
tray
(Rear panel)
