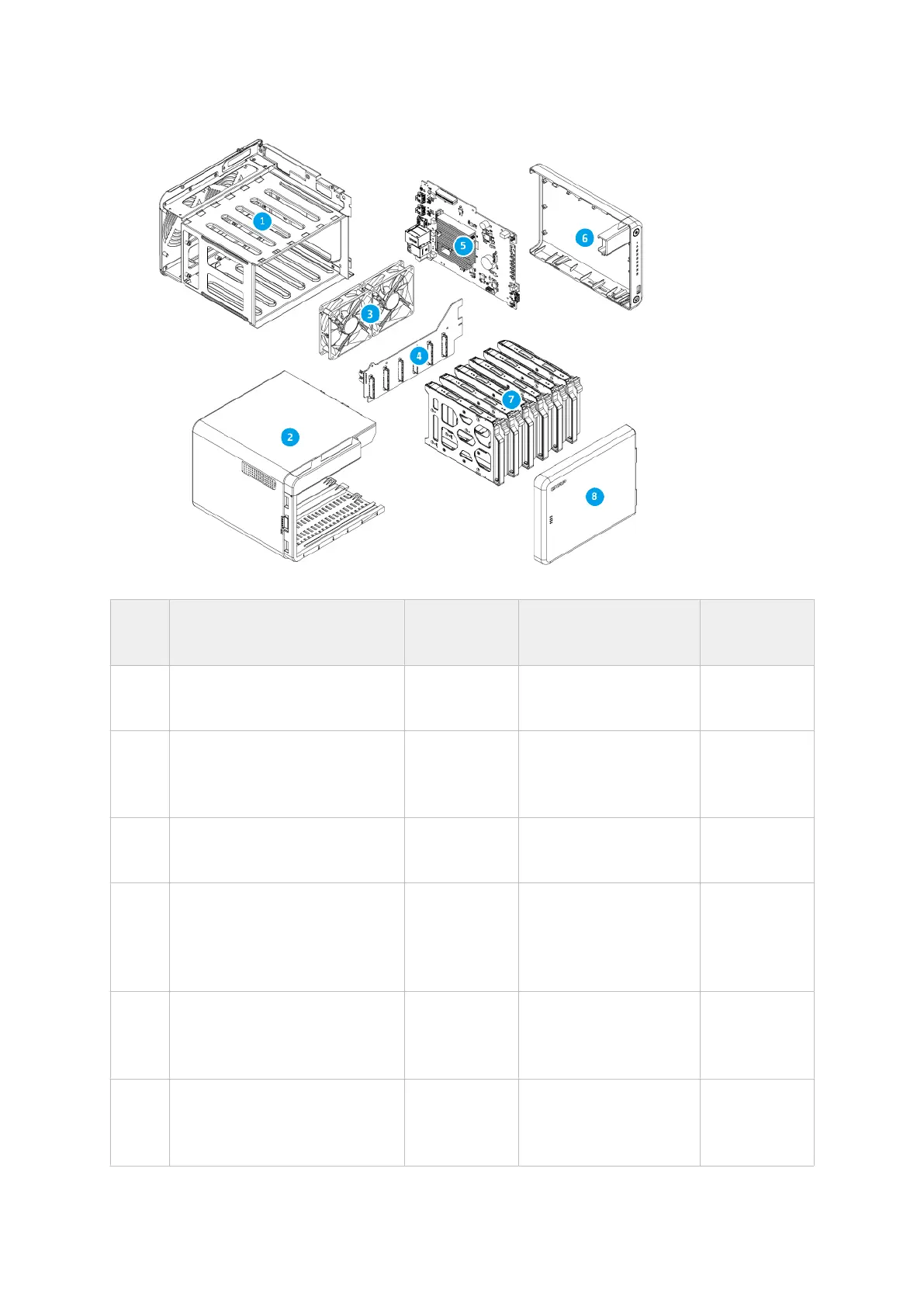

QNAP TS-AI642 Repair Manual

No. Component
(Quantity)
Screw Type
(Quantity)
Screwdriver
(Torque)
Attached To
1 Drive cage
(1)
- - -
- HDMI ports on system board
(2)
Flat head
M2x4
(2)
Phillips #1
(2 kgf.cm / 1.74 lbf.in)
Drive cage
(Rear panel)
2 Case cover
(1)
- - -
3 System fans
(2)
Flat head
Self-tapping
M5x10
(8)
Phillips #2
(5 kgf.cm / 4.34 lbf.in)
Drive cage
(Rear panel)
4 Backplane
(1)
Pan head
M3x5
(7)
Phillips #2
(7 kgf.cm / 6.08 lbf.in)
Drive cage
5 System board
(1)
Pan head
M3x5
(7)
Phillips #2
(5 kgf.cm / 4.34 lbf.in)
Right panel
