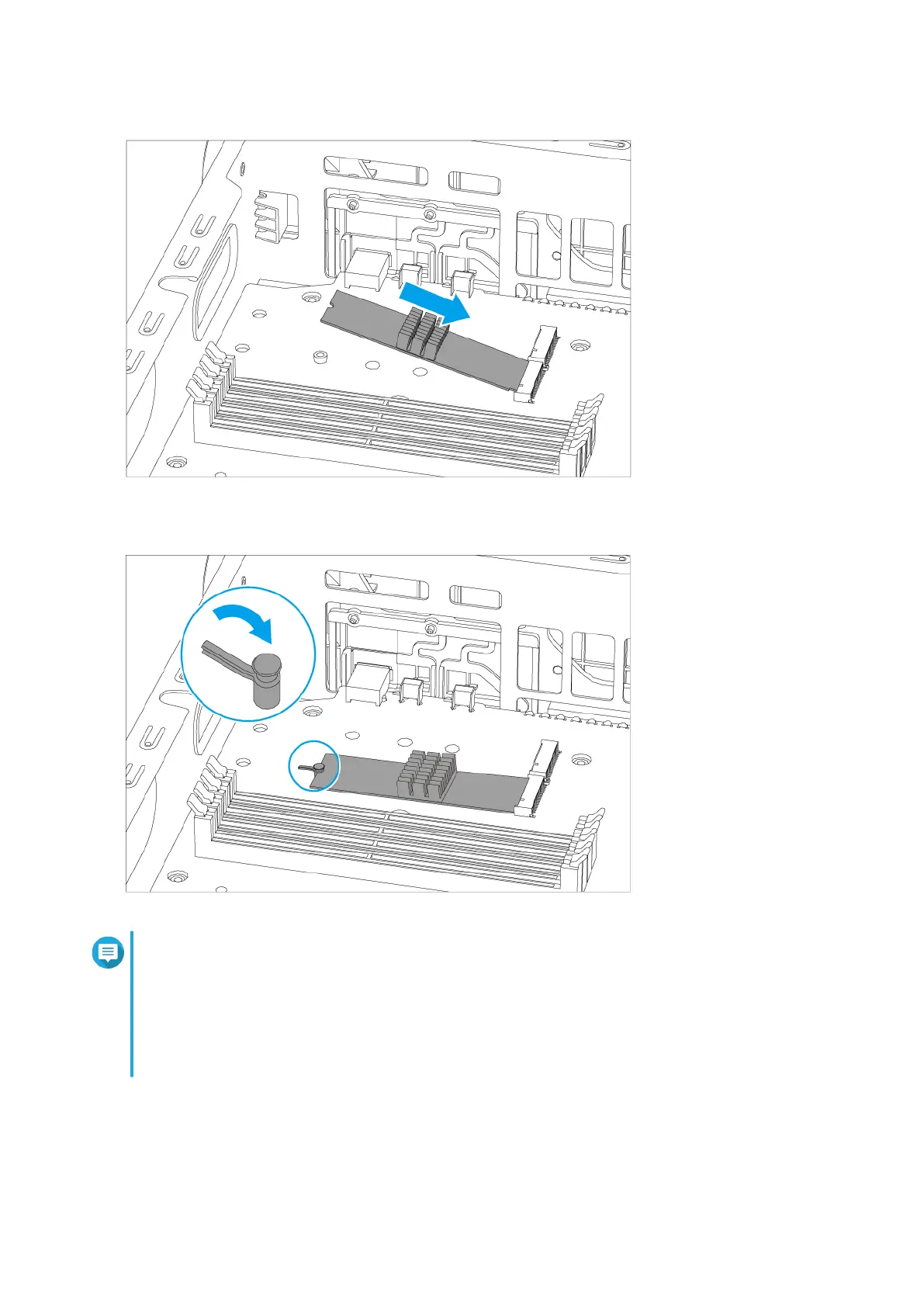

c. Insert the pushpin to secure the drive.
Note
For M.2 2110 SSDs, change the position of the pushpin first.
1. Turn the pushpin counter clockwise.
2. Pull out the pushpin, then insert the pushpin into the new position.
3. Turn the pushpin clockwise.
8. Attach the fan module.
a. Align the protruding part of the module with the hole on the chassis below the M.2 SSD slot.
b. Push the module toward the system board until the clip locks the module into place.
TS-hx86 User Guide
Installation and Configuration 29
