44

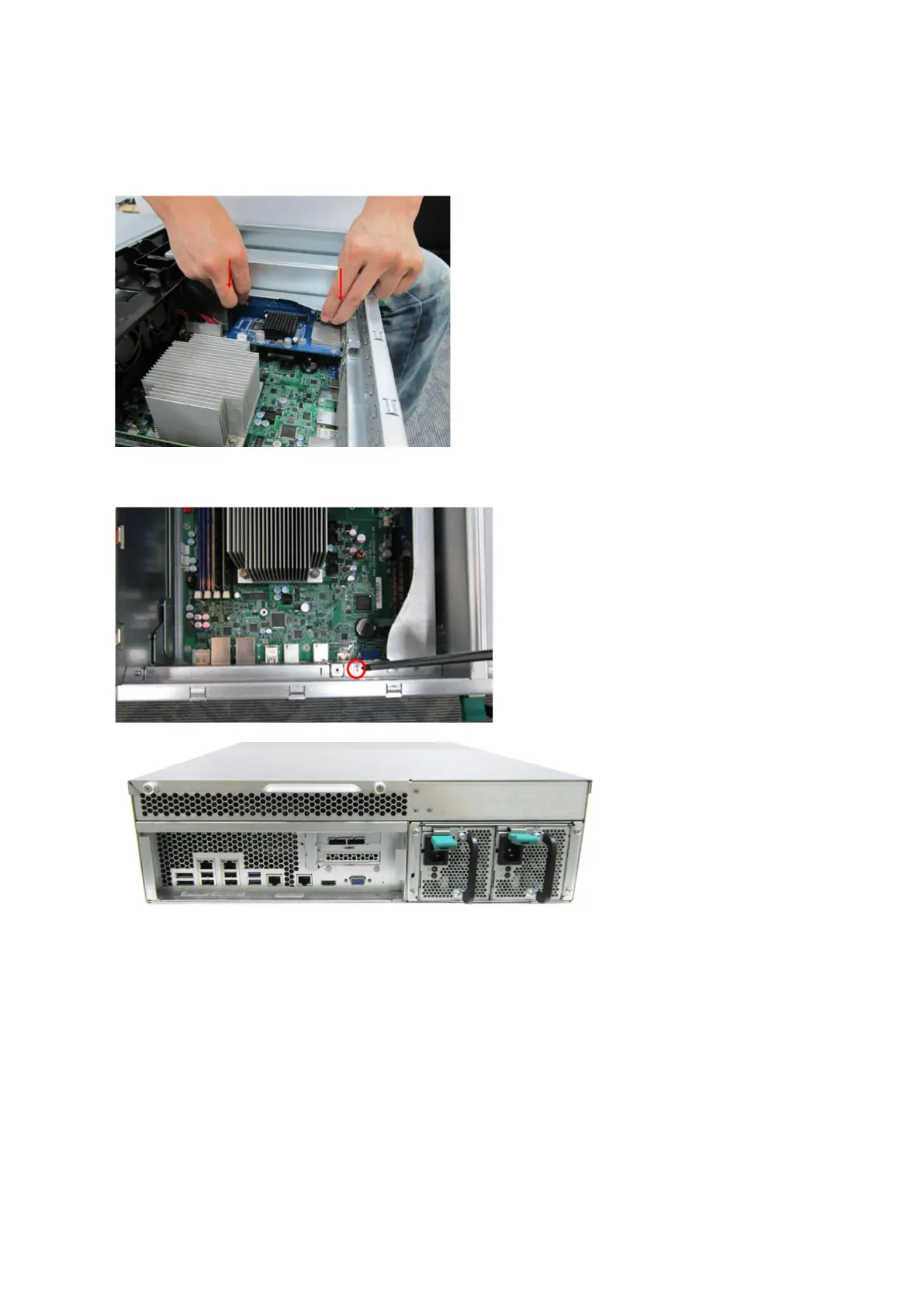

9. Grasp the metal edge of the riser card module. Align the notch on the gold edge of the
riser card with the notch in the PCIe slot. Insert the riser card module to the PCIe slot
until it cannot go any further.
10. Fasten the screws. Close the case cover and fasten the screws.
11. Connect the power adaptor and cables to the NAS.
12. To check that the network expansion is recognized by the NAS, power up the NAS and
login the web interface as an administrator. Go to “System Administration” >
“Network” > “TCP/IP” and check the total number of network interfaces.
