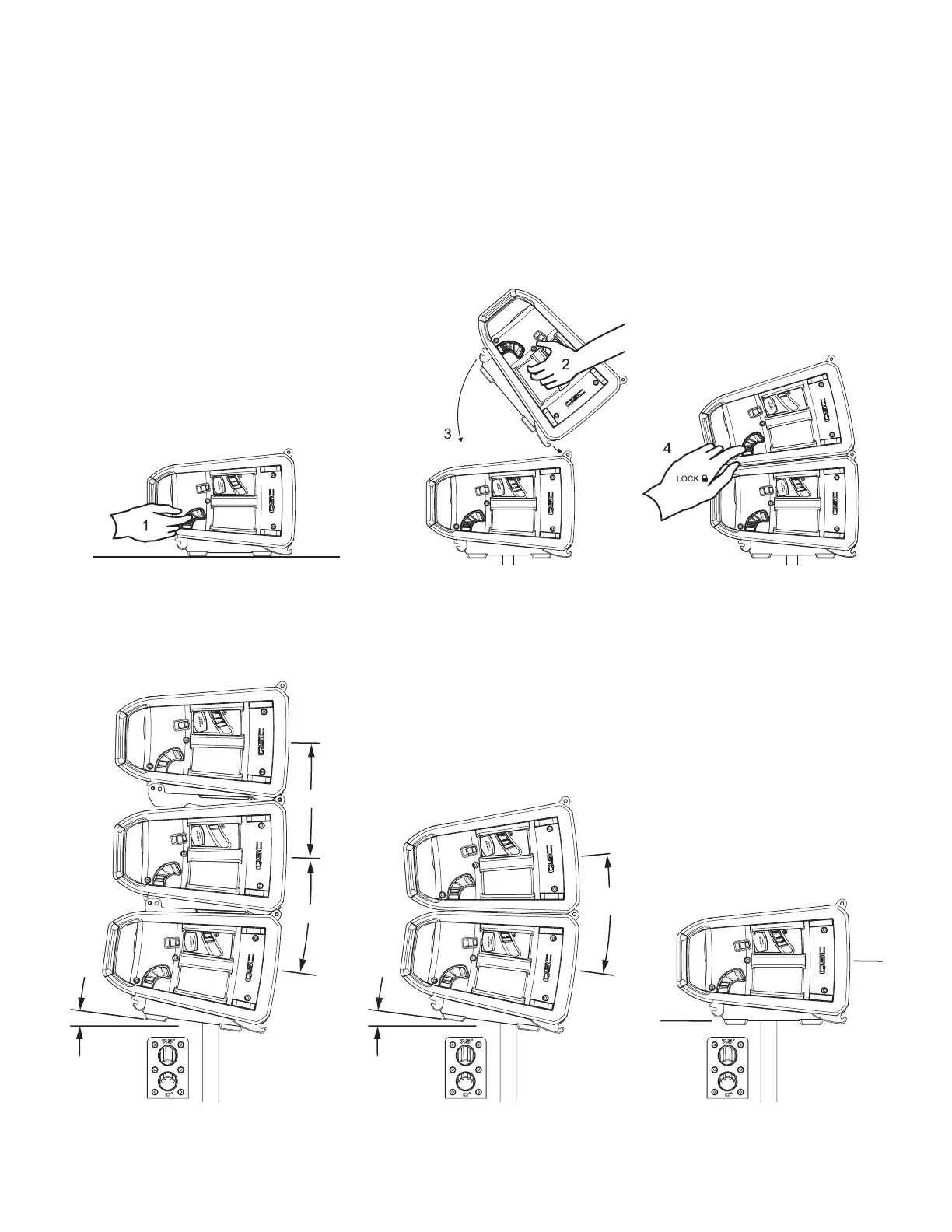

Stacking an Array on a Tripod Pole Mount
1. After securing the first loudspeaker to the pole, set the Locking Levers on both sides of the new loudspeaker to the middle (ADD+)
position.
2. Hook both Front Strikes of the new loudspeaker onto the Front Hooks of the loudspeaker mounted to the pole.
3. Lower the back side of the loudspeaker until the new loudspeaker connects with the loudspeaker mounted to the pole, making a
click sound.
4. Push Locking Levers down (LOCK) to secure the new loudspeaker on both sides.
5. Repeat steps 1-4, until array is complete.
—Figure12—
Splay Angle Adjustment on a Tripod Mount
Along with the 0° and -7.5° angle options on a pole mount, splay angle of individual loudspeakers can be adjusted further
to1.5°,6°, and 12°.
0°
7.5°
7
.5°
12°
1.5°
6°
—Figure13—
NOTE: See the section on “Understanding Splay Angles” for further details.
