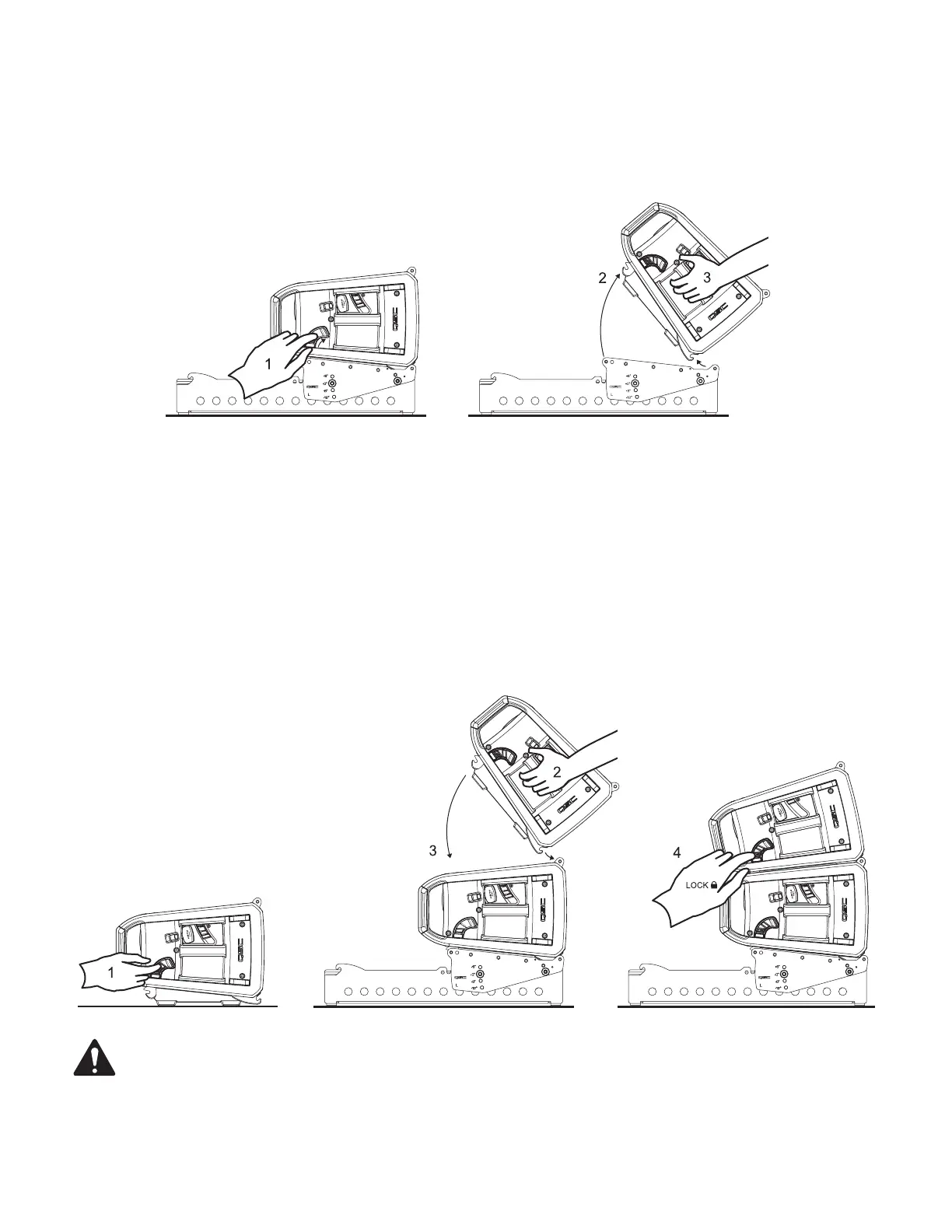

Detaching a Loudspeaker from a Subwoofer
1. Set the Locking Levers on both sides of the loudspeaker to the up (REMOVE) position.
2. Lift backside of the loudspeaker away from the Angle Arms.
3. Lift loudspeaker off Array Frame Front Hooks to fully detach.
—Figure31—
Stacking an Array of Loudspeakers on a Subwoofer
1. After securing the first loudspeaker to the Array Frame and stack adapter, set the Locking Levers on both sides of the new
loudspeaker to the middle (ADD+) position.
2. Hook both Front Strikes of the new loudspeaker onto the Front Hooks of the loudspeaker mounted to the pole.
3. Lower the back side of the loudspeaker until the new loudspeaker connects with the loudspeaker mounted to the pole, making a
click sound.
4. Push Locking Levers down (LOCK) to secure the new loudspeaker on both sides.
5. Repeat steps 1-4, until array is complete.
—Figure32—
WARNING!: Make sure the loudspeakers are physically, properly aligned; if not, the latching system may not properly
engage, and the loudspeakers could separate causing physical damage, and/or personal injury.
