QSC RMX Series Technical & Service Manual

34 QSC Audio Products, LLC
CHASSIS
SCREW
4 REQD
WIRE ASSY
NUT
SCREW
5 REQD
SCREW
6 REQD
KNOB
2 REQD
D
SCALE
1/2
SHEET
2 OF 2
DWG NO.
PA-002450-00
REV
DWG NO.
PA-002450-00
2
SH
REV
87654321
87654321
A
B
C
D
A
B
C
D
THIS DOCUMENT CONTAINS PROPRIETARY
INFORMATION WHICH IS THE PROPERTY
OF QSC AUDIO PRODUCTS, THAT MAY NOT
BE DISCLOSED, REPRODUCED OR USED
WITHOUT EXPRESS WRITTEN CONSENT FROM
QSC AUDIO PRODUCTS.

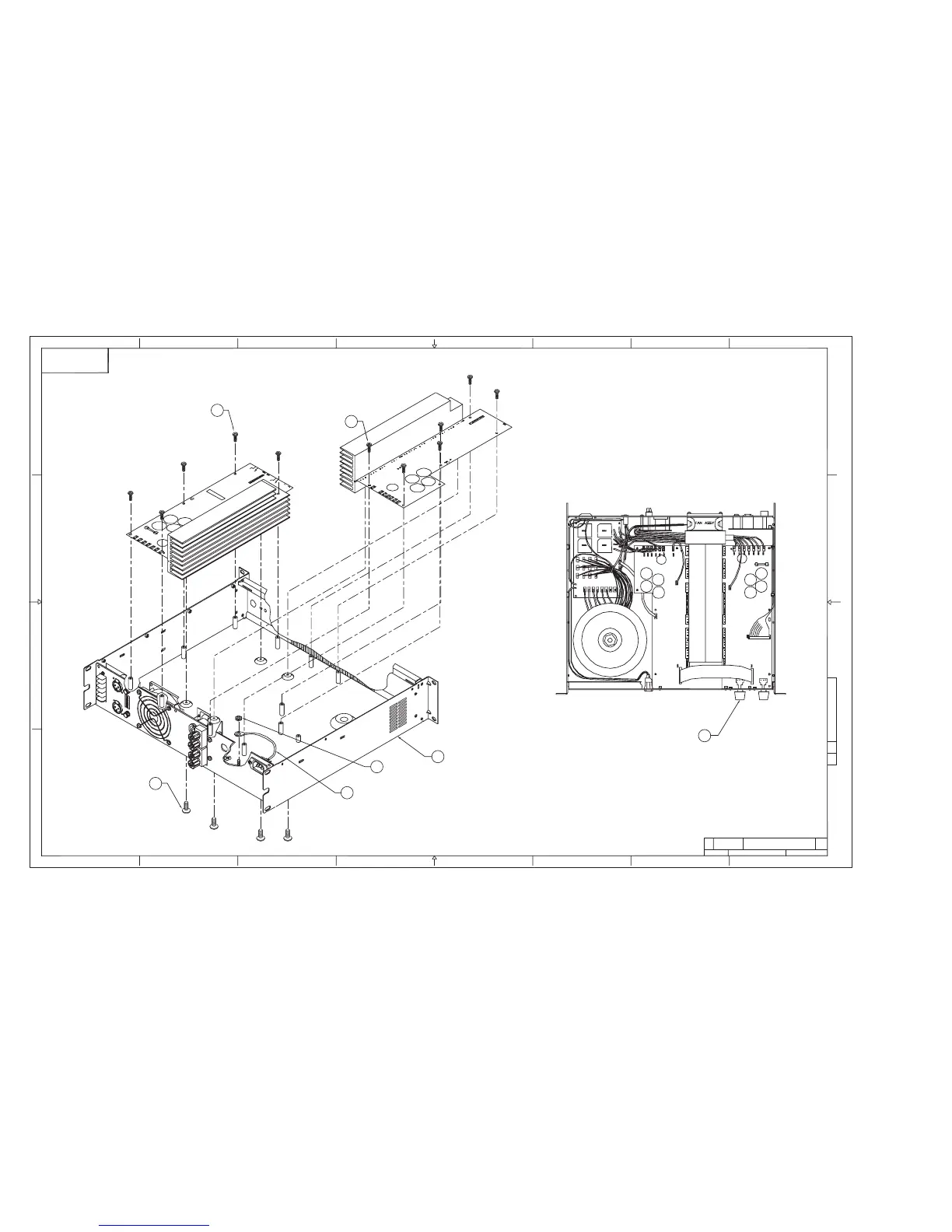

7.2 RMX Assembly/Disassembly Diagram 2 of 2
(All models)
CHANNEL MODULES
RMX 850: WP-008503-00; was PCB-QZ010C-PWR1 (left or Channel 1)
RMX 1450: WP-014502-00; was PCB-QZ020C-PWR1 (left or Channel 1)
RMX 1850HD: WP-018504-00; was PCB-QZ100C-PWR1 (left or Channel 2)
RMX 2450: WP-002454-00; was PCB-QZ030C-PWR1 (left or Channel 2)
CHANNEL MODULES
RMX 850: WP-008504-00; was PCB-QZ010C-PWR2 (right or Channel 2)
RMX 1450: WP-014503-00; was PCB-QZ020C-PWR2 (right or Channel 2)
RMX 1850HD: WP-018503-00; was PCB-QZ100C-PWR2 (right or Channel 1)
RMX 2450: WP-002453-00; was PCB-QZ030C-PWR2 (right or Channel 1)

QSC RMX Series Specifications

General

Series	RMX
Channels	2
Frequency Response	20Hz - 20kHz (+0/-1dB)
Signal to Noise Ratio	100 dB
Input Impedance	20k ohms (balanced), 10k ohms (unbalanced)
Cooling	Variable speed fan
Protection	Thermal, short circuit, DC, ultrasonic, RF
Connectors	Input: XLR and 1/4" TRS, Output: Binding posts and Speakon
