Installation Manual
4. Power on and Run Router 36
www.qtech.ru

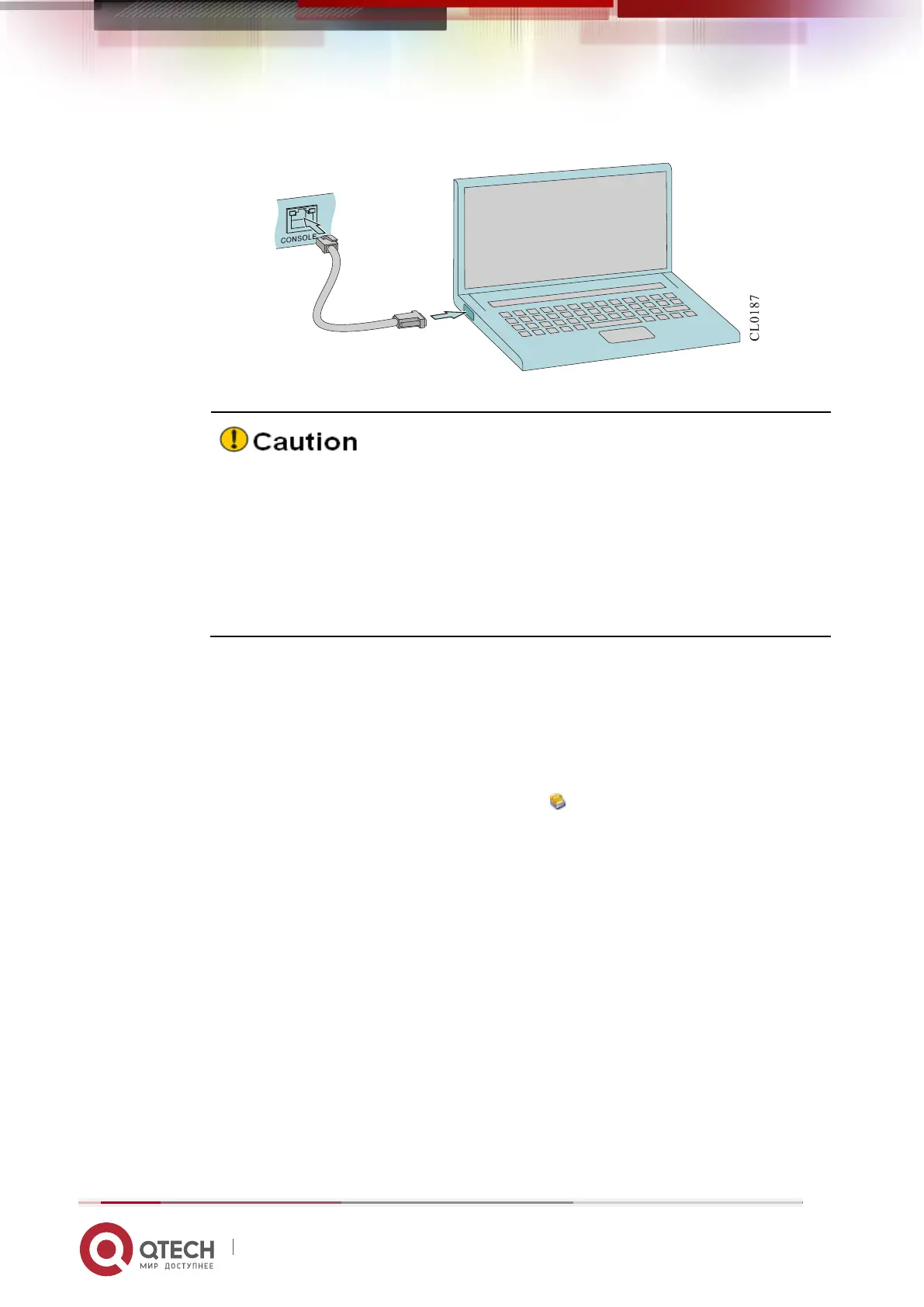

Figure 4-2 Connect the router and PC via the Console port
When the PC (or laptop) is connected with the router via the configuration
cable, first connect the DB-9 side of the configuration cable to the serial
interface of the PC and then connect the RJ-45 connector of the
configuration cable to the Console port of the router.
When removing the configuration cable that connects the PC (or laptop)
with the router, first remove the RJ-45 connector of the configuration
cable, and then remove the DB-9 side of the configuration cable.
2.4.1. Set PC HyperTerminal Parameters
The following takes running Windows XP HyperTerminal on the PC (or laptop) as an example to
describe the setting of the serial interface parameters of the PC (or laptop).
Enable the PC (or laptop), select Start > All Programs > Accessories >
Communication > HyperTerminal, and click to set up the new connection as
shown in Figure 4-5. If it is the first time to set the Hyperterminal, the system
displays the interface of Location Information, as shown in Figure 4-3. Fill in
according to the red indication in the fiugre and click OK.
