QTech QSR-2920 Series User Manual

Installation Manual
4. Power on and Run Router 38
www.qtech.ru

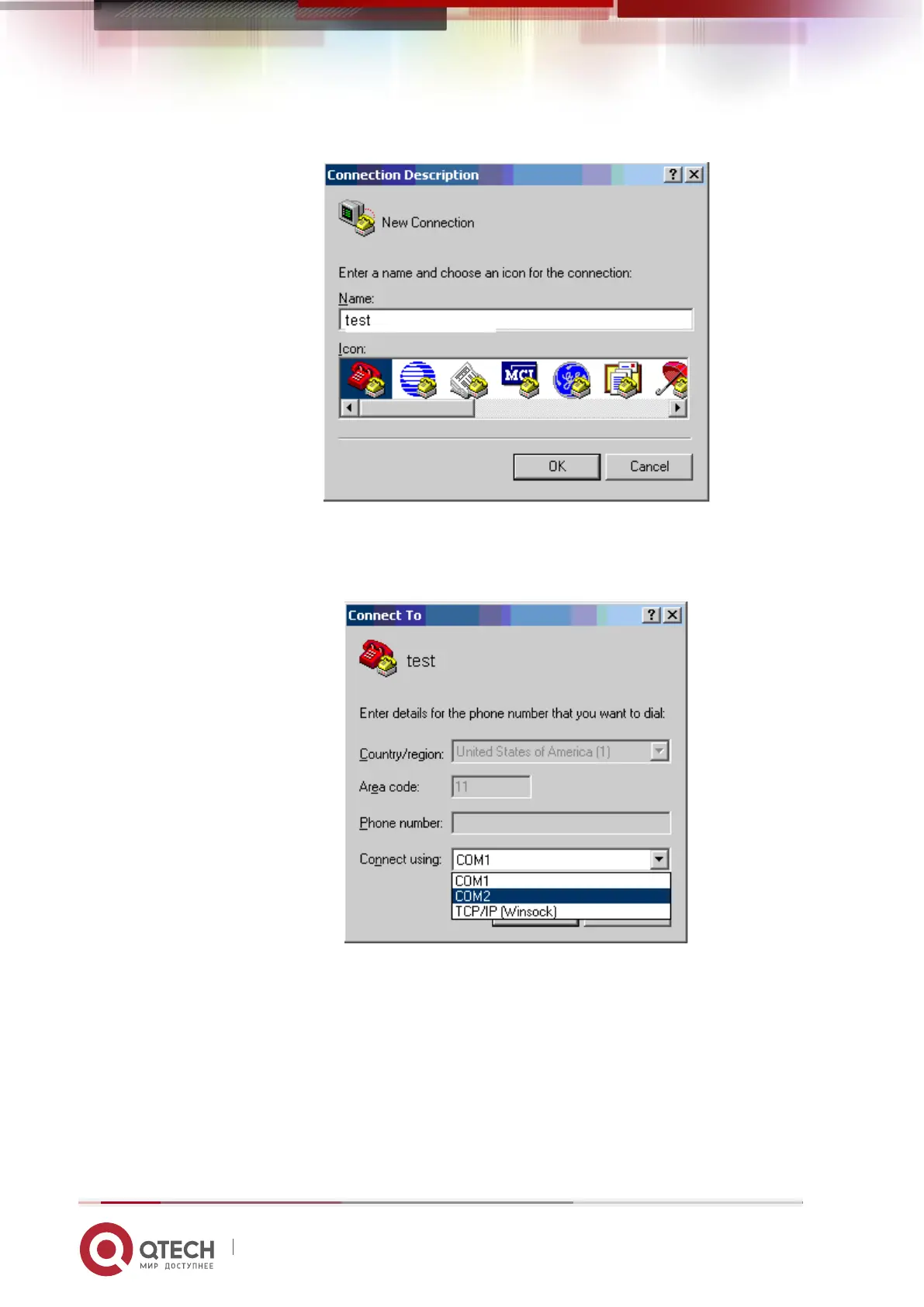

Figure 4-5 “Connection Description” interface
Step 4:
Display the following Connect to interface, select the serial interface used by the
connection in the Connect using, and click OK.
Figure 4-6 “Connect to” interface
Step 5:
Display the following COM1 Properties interface, set the baud rate as 9600, data
bit as 8, parity check as none, stop bit as 1, and data flow control as none, and
then click OK.
