MT. VERNON E2-C

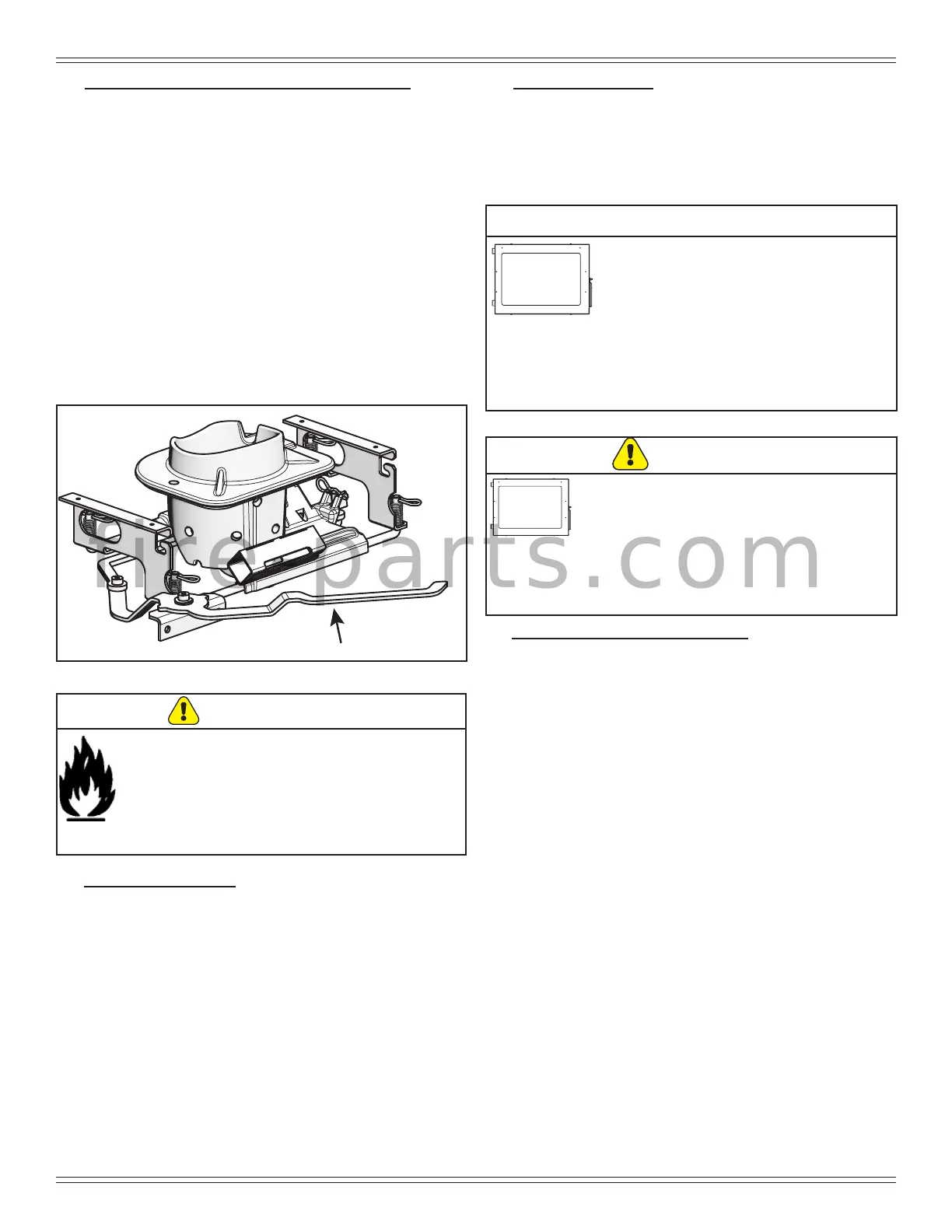

Figure 24.1
Ash Dump Lever
7. Cleaning the Glass
• Frequency: See chart on page 21
• By: Homeowner
a. Be sure the appliance is allowed to cool.
b. Clean glass with a non-abrasive commercially available
cleaner. Wipe down with dry towel.
5. Ash Removal System Inspection & Cleaning
• Frequency: Monthly or after burning 50 bags
• By: Homeowner
a. Be sure the appliance is allowed to cool.
b. Open the front cast door and cycle the ash removal
handle - these should be inspected for functionality
c. Inspect for any degradation or deformation.
• As the springs heat up and cool down they can
lose tension
• If there is a gap showing above the re pot bottom,
approximately 1/16 inch (1.59mm) or more, it
means the springs have lost their tension
• Lost tension cannot keep the oor in the proper
position causing ignition problems and fuel falling
into the ash pan. If noted, call your dealer to
replace the springs.
8. Door Latch & Gasket Inspection
• Frequency: See chart on page 21
• By: Homeowner
The door latch is non-adjustable but the gasket between
the glass and rebox should be inspected periodically to
make sure there is a good seal. If the gasket is frayed or
damaged, replace with a new one.
WARNING
Risk of re!
Do NOT store fuel:
• Closer than required clearances to
combustibles to appliance.
• Within space required for loading or ash
removal
Handle glass assembly with care.
When cleaning glass door:
CAUTION
• Avoid striking, scratching or slamming glass.
• Do NOT clean glass when hot.
• Do NOT use abrasive cleaners.
• Use a hard water deposit glass cleaner on white lm.
Refer to maintenance instructions.
Handle glass doors with care.
• Inspect the gasket to ensure it is
undamaged.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass
door removed, cracked, broken or
scratched.
WARNING
6. Cleaning the Hopper
• Frequency: See chart on page 21
• By: Homeowner
a. Be sure the appliance is allowed to cool.
b. After burning approximately 1 ton of fuel you will need to
clean the hopper to prevent sawdust and/or nes build-
up.
c. A combination of sawdust/nes and pellets on the auger
reduces the amount of fuel supply to the re pot.
d. This can result in nuisance shut downs and mis-starts
• Empty the hopper of any remaining pellets.
• Vacuum the hopper and feed tube.
