August 13, 2018 7036-187M 43
MT. VERNON AE INSERT
Service Parts
R
MT VERNON INSERT-AE
Beginning Manufacturing Date: Sept. 2006
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
30 Combustion Blower Assembly 7034-033 Y
Gasket, Blower, Combustion (Between …) ...Housing & Stove SRV7000-332 Y
Gasket, Motor, Blower, Combustion (Between …)
...Housing & Motor SRV7000-714 Y
Pkg of 10 SRV7000-714/10 Y
31 Control Board Assembly SRV7000-456 Y
Fuse 15A Slow Iec Glass Pkg of 10 7000-491/10 Y
32 Convection Blower SRV7000-260 Y
33 Gasket, Blower, Convection SRV7000-329
34 Detent Pin
Pre 00700201366 7000-376
Post 00700201366 7000-393
35 Exhaust Transition & Flue Assembly SRV7036-029
Gasket, Flue Adapter SRV240-0850 Y
Latch, Draw 229-0230
36 Snap Disc, Manual Reset ( #3 ) SRV230-1290 Y
37 Bracket, Hopper Magnet 7036-149
38 Feed Assembly SRV7034-004 Y
38.1 Feed Spring Assembly (Only) SRV7001-046 Y
38.2 Bearing, Feed System, Nylon SRV7000-598 Y
38.3 Gasket, Feed Motor SRV7034-144
38.4 Bracket, Motor, Feed 7034-143
38.5 Optical Switch Assembly SRV7034-038 Y
38.6 Feed Motor DC SRV7000-313 Y
Collar, Set, 7/8 229-0520
Additional service part numbers appear on following page.
38.1
38.2
38.3
38.4
38.5
38.6

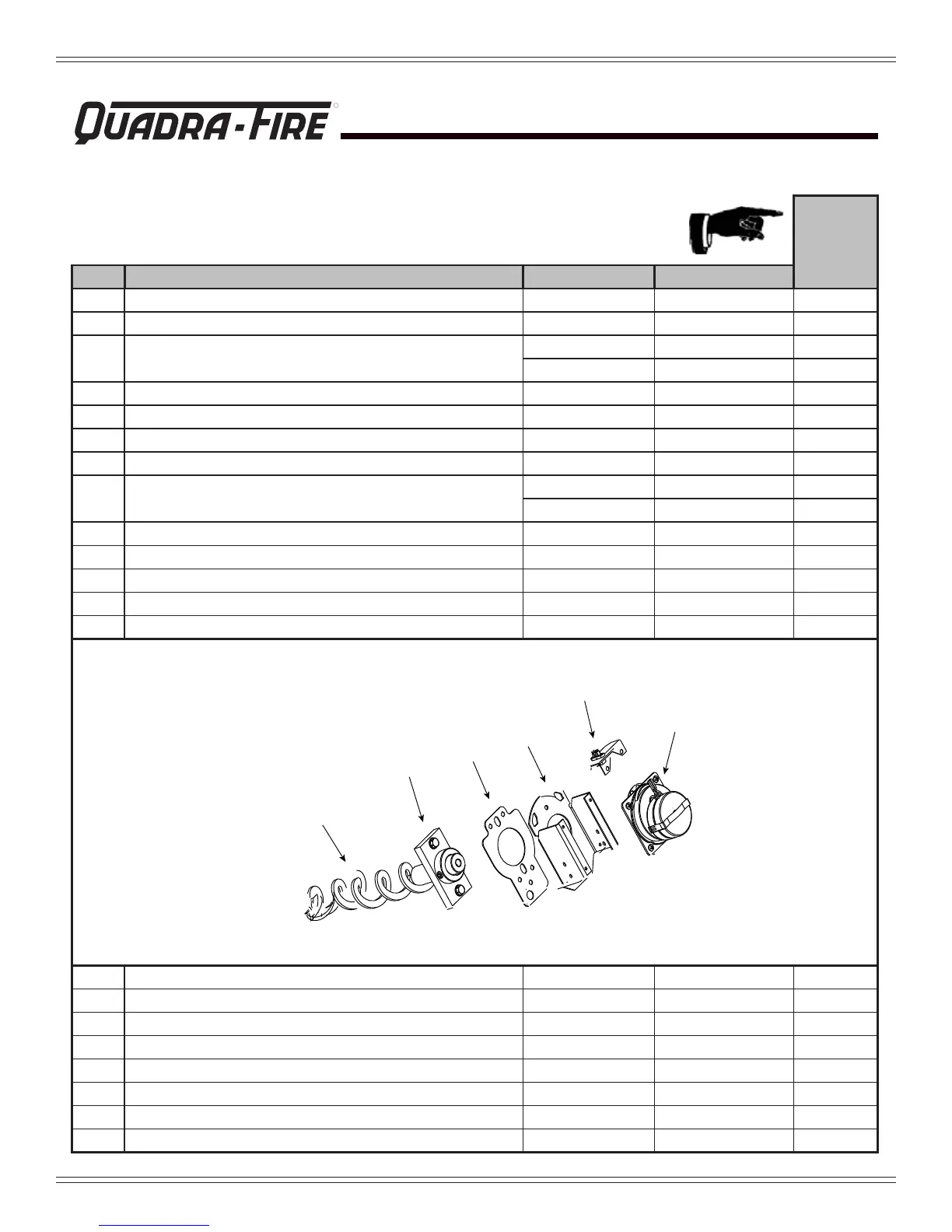

#38 Feed Assembly
To Next Page
