Quadra-Fire MT VERNON - Service Parts List; #39 Firepot Riser Assembly; #40 Auto-Clean Motor;Arm Assembly

44 7036-187M August 13, 2018
MT. VERNON AE INSERT
Service Parts
R
MT VERNON INSERT-AE
Beginning Manufacturing Date: Sept. 2006
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and
Home Technologies does not sell directly to consumers. Provide model number and serial number when
requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
39 Firepot Riser Assembly SRV7034-002
39.1 Thermocouple, K SRV7034-247 Y
39.2 Half Clip 7000-321
39.3 Thermocouple Protection Tube
SRV7034-186 Y
Pkg of 10 SRV7034-186/10
39.4 Firepot Assembly SRV7034-072B Y
39.5 Gasket, Firepot SRV7034-190 Y
39.6 Auto-Clean Link Arm 7034-176 Y
39.7 Plow Weldment, Auto-Clean SRV7034-024 Y
39.8 Rail, Auto-Clean SRV7034-152 Y
39.9 Spring Pkg of 4 7000-513/4 Y
39.10 Hitch Pin Clip 3/32 Pkg of 10 7000-374/10 Y
39.11 Firepot Bottom SRV7034-153 Y
Auto-Clean Bottom Assembly (Includes Auto Clean Plow
7034-021 Y
Weldment, Link Arm, Firepot Bottom & Hitch Pin Clip)
Firepot Riser Clamp Assembly (Includes Clamp and
7034-012
Hex Nut)
40 Auto-Clean Motor/Arm Assembly SRV7034-020 Y
40.1 Auto-Clean Lever 7034-158 Y
40.2 Micro Switch No SRV7000-327 Y
40.3 Gear Motor 12V SRV7000-502
40.4 Grommet, Motor, Auto-Clean 7034-188 Y
40.5 Cam, Switch, Auto-Clean SRV7034-187 Y
40.6 Bearing 7000-333 Y
40.7 Gasket, Auto-Clean SRV7034-165 Y
Additional service part numbers appear on following page.

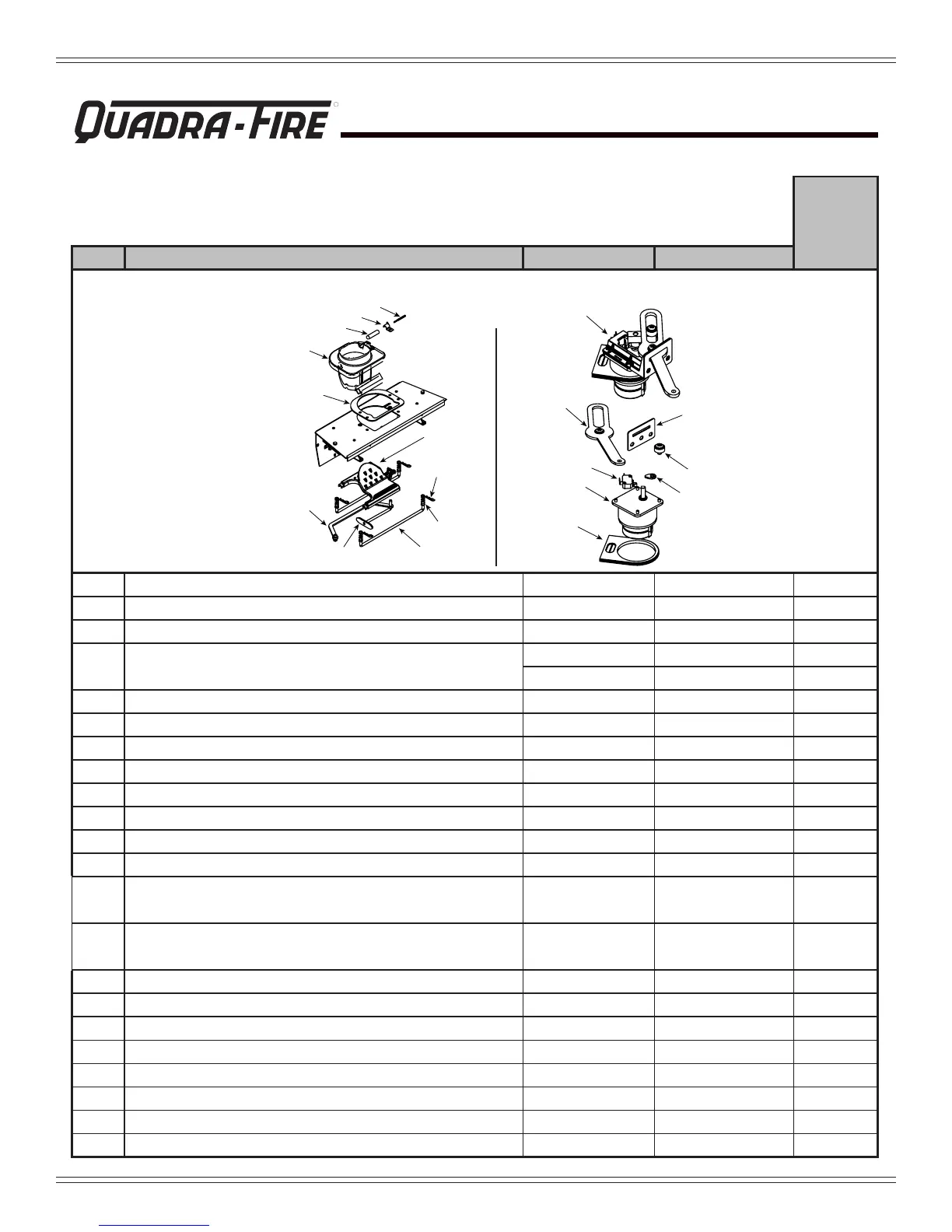

#39 Firepot Riser Assembly #40 Auto-Clean Motor/Arm Assembly
39.1
39.2
39.3
39.4
39.5
39.6
39.7
39.8
39.9
39.10
39.11
40
40.1
40.2
40.3
40.4
40.5
40.6
40.7
