QUADRAX Q-LOCK - Secure the Plow Blade Assembly to the ATV

Secure the plow blade assembly to the A
ASSEMBLAGE
TV

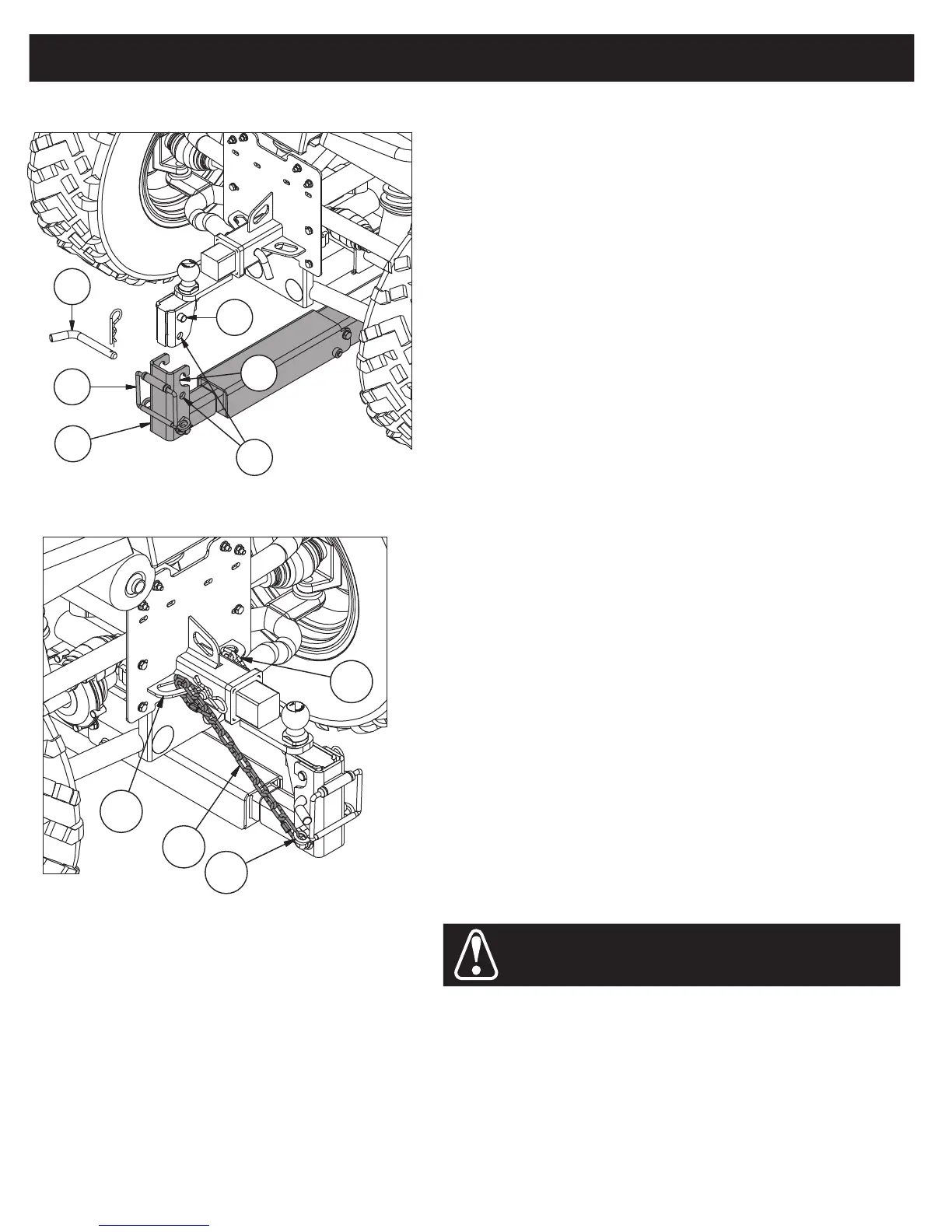

Step.7
Move the vehicle over the frame channel.
Lift frame channel using the coupling hook handle (A), then slide the two
top notches (C) of the coupling hook (B) on the two pins of he hook
(D).
Align the holes (F) and lock into place with the hitch pin and clip (E).
Step.8
Attach one end of the retaining chain assembly (A) to the two “L”
brackets holes (B) using the quick connecting links.
Then wrap the other end into the rings of the hitch receiver (C) or the frame
of the ATV, lock in place using the quick connecting links.
Continued on next page.
ATTENTION: You must ensure that the chains do not come
into contact with moving parts of the ATV.
15
A
C
B
D
F
E
A
C
B
C
ASSEMBLY
