QUADRAX Q-LOCK - Operation; To Turn the Plow

Operation of plow rotation system

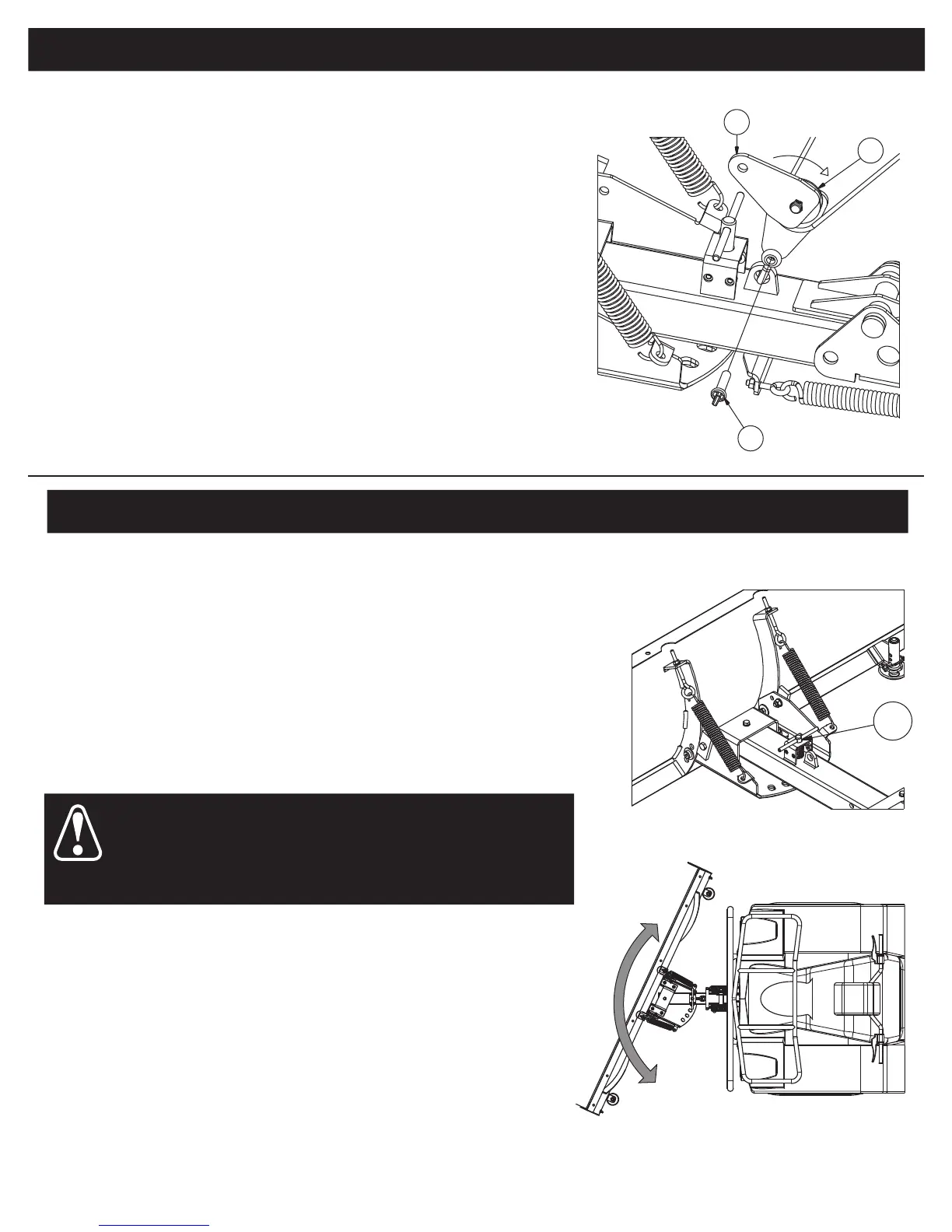

Installing pulley 165-35120
18
Step.11 Continued
J
K
H
To turn the plow.
Locate T-handle pin (A).
Lift T-handle pin to release rotation plate.
Rotate to desired angle and realese T-handle pin to lock in place.
Note: You can add the cable remote control kit 165-1000 (sold separately).
This optional accessory is for controlling the locking action of the T-handle pin in order to
A
Pull out the winch cable.
Attach the hook (B) to the strap (A).
Make a bend (C) with the cable above the lifting plate of the plow arm.
CAUTION : Before using or lifting the plow, rotate the plow from left
to right and make sure it does not come in contact with the tires,
tracks or any other part of the ATV.
Failure to follow this step could cause serious damage to the plow
or ATV.
ASSEMBLY
OPERATION
