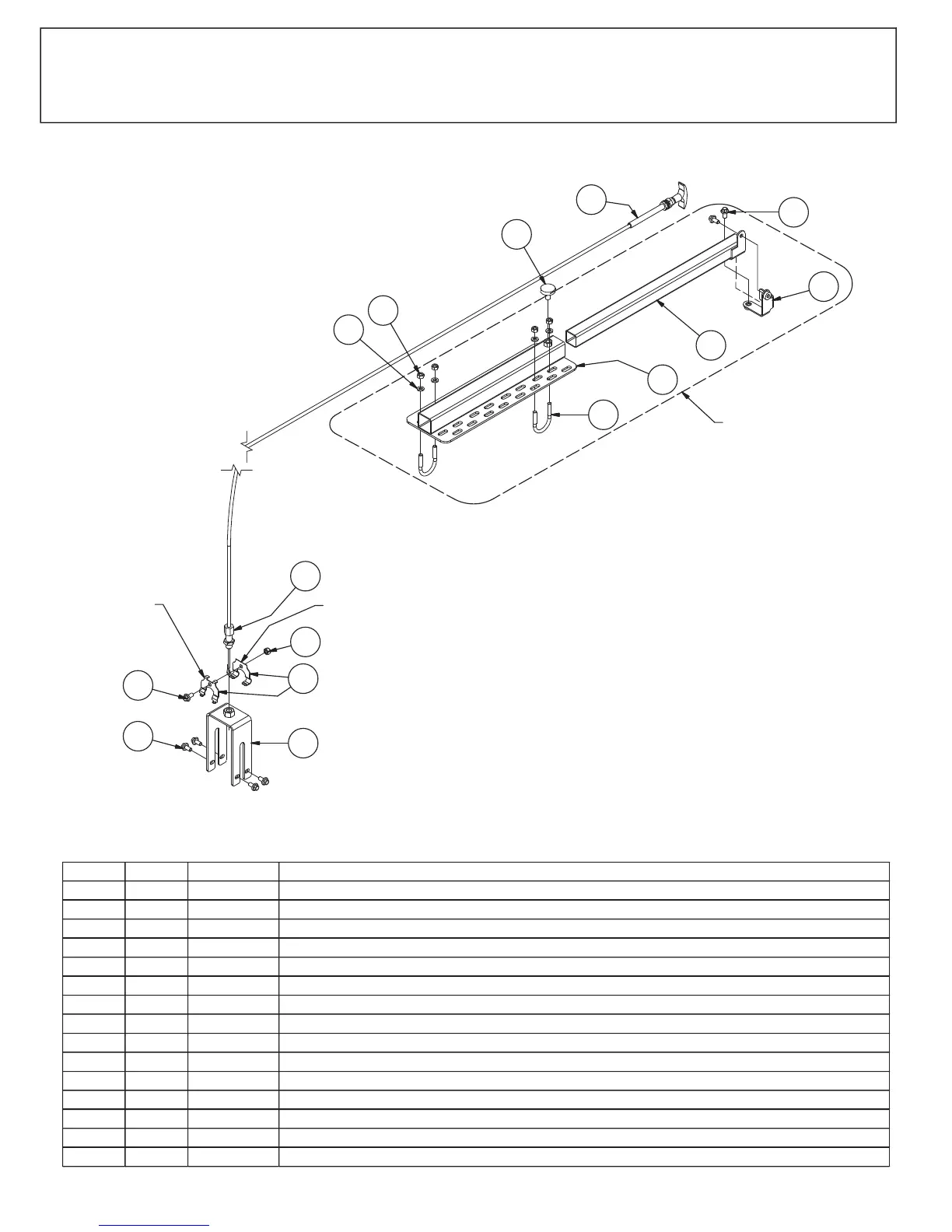

CABLE REMOTE CONTROL KIT
ately
Cable remote kit, is sold separately.
This optional accessory is for controlling the locking action of the T-handle pin
so as to adjust the angle of the plow blade without leaving the seat of your ATV.
28
4
9
11
6
7
10
12
13
8
3
12
2
1
11
11
5
165-1002A
165-1002B
ITEM
QTY PART NUM DESCRIPTION
1
1 165-1001 Cable clamp retaining bracket
2
1 165-1002 Cable clamp assembly
1 165-1002A Clamping plate ext
1 165-1002B Clamping plate int
3
1 165-1003 Cable adjuster
4
1 165-1004 Cable and handle assembly
5
1 165-1005 Adjustable cable command assembly
6
1 165-1006 Cable locking bracket
7
1 165-1007 Inner tube
8
1 165-1008 Outer tube w anchor base
9
1 165-B8400 Knob screw
10
2 165-B8401 U bolt M6
11
7 165-B8420 Flanged bolt M6x12
12
5 165-B8451 Locknut M6
13
4 165-B8490 Washer M6
