QUADRAX Q-LOCK - Chains Stabilizer and Bracket

CHAINS STABILIZER AND BRACKET

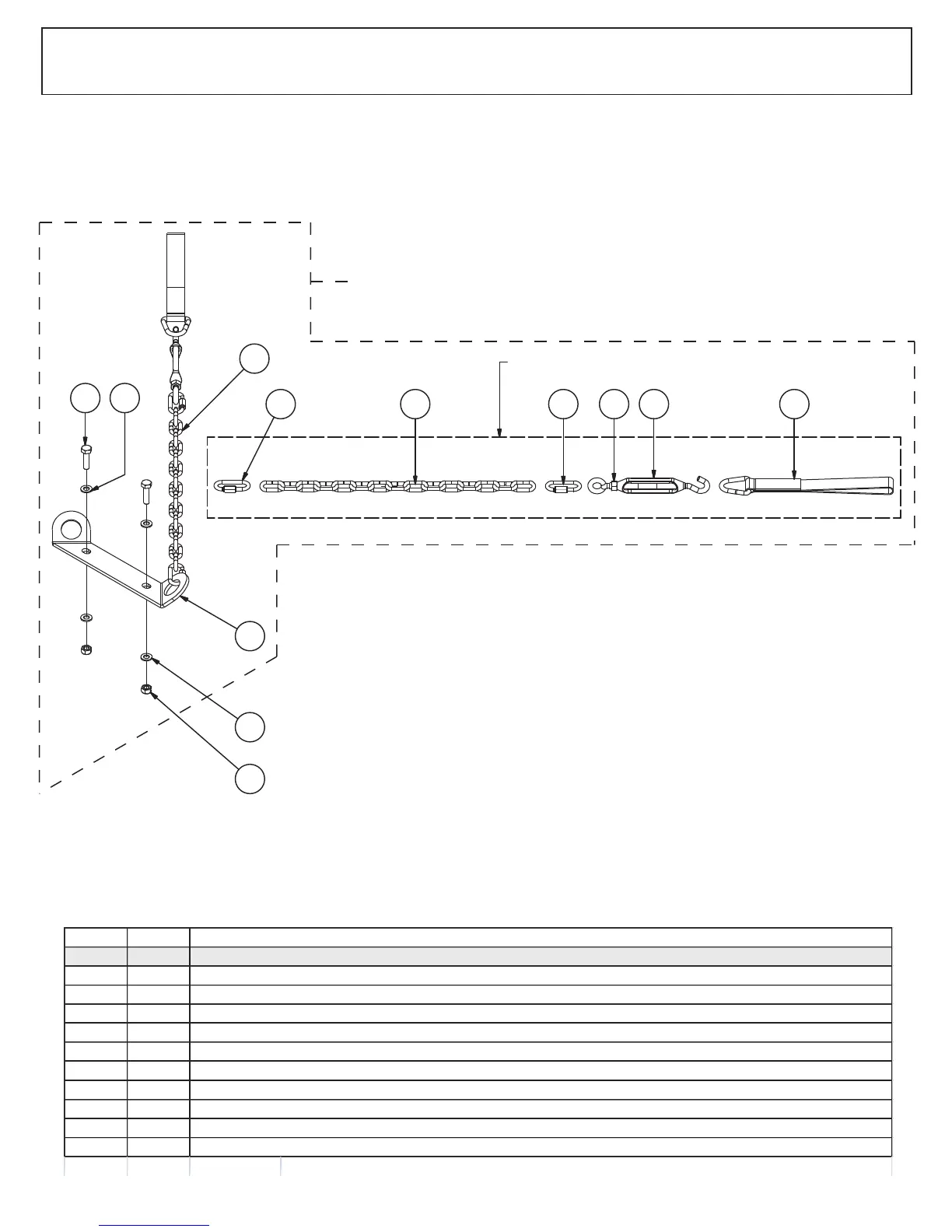

PARTS BREAKDOWN
23
1
4
2
4 5
3
8 11
6
11
9
11
1
165-1250
ITEM
QTY PART NUM DESCRIPTION
1 165-1250 Chains stabilizer & anchorage bracket assembly
1
2 165-1237 Chains stabilizer assembly
2
2 165-1238 Chains (15 links)
3
2 165-1239 A-arm mounting strap
4
4 165-1241 Quick connecting link
5
2 165-1242 Turnbuckle
6
1 165-1251 Chains anchorage brkt upper
8
2 165-B8433 Hex bolt M8x25
9
1 165-B8454 Nut M8
10
2 165-B8457 Locknut M8
11
4 165-B8492 Washer M8
