QUADRAX Q-LOCK - Installing Pulley (Continued)

Installing pulley 165-35120
17
A
B
C
D
E
ATTENTION : A winch positioned too low on the ATV / UTV will give too low an angle to the cable.
Which would pull back the plow instead of lifting it and cause damage to the frame of the plow or ATV / UTV.

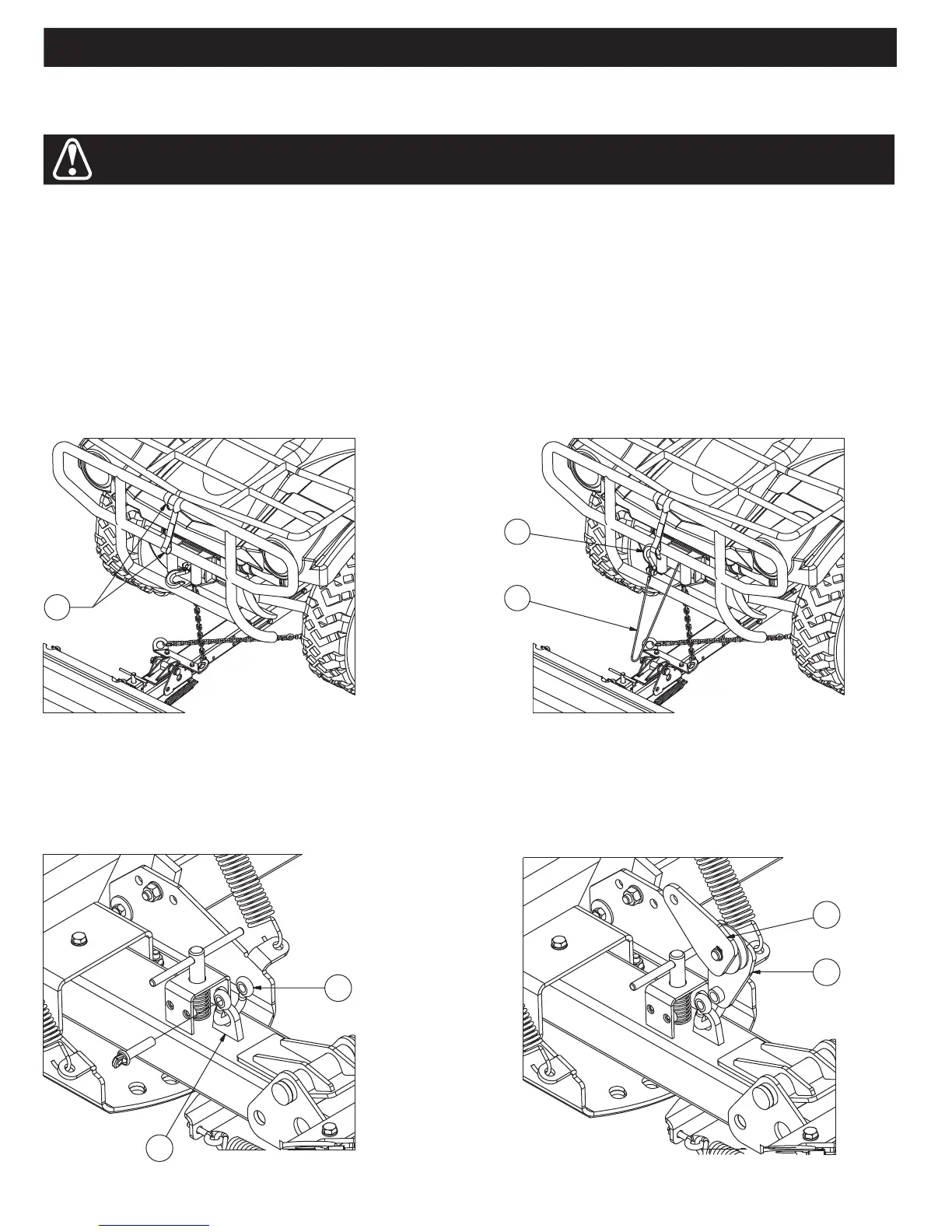

Slide the push tube under and at the center of the vehicle.
Attach the strap (A) to the tube of the front bumper in a loop around
the pipe.
Pull out the winch cable.
Attach the hook (B) to the strap (A).
Make a bend (C) with the cable above the lifting plate of the plow arm.
Insert the shackle (D) in the hole of the lifting plate (E) of plow arm. Rotate upwards plate (G).
Insert pulley assembly (F) in the shackle.
F
G
Step.11
ASSEMBLY
