165-931
Quadrax Q-LOCK Push tube with universal attachement and articulated arm.
You must add a 2” receiver hitch on the ATV to install the Q-Lock universal mounting kit. (Not included).
Works with all Quadrax plows.

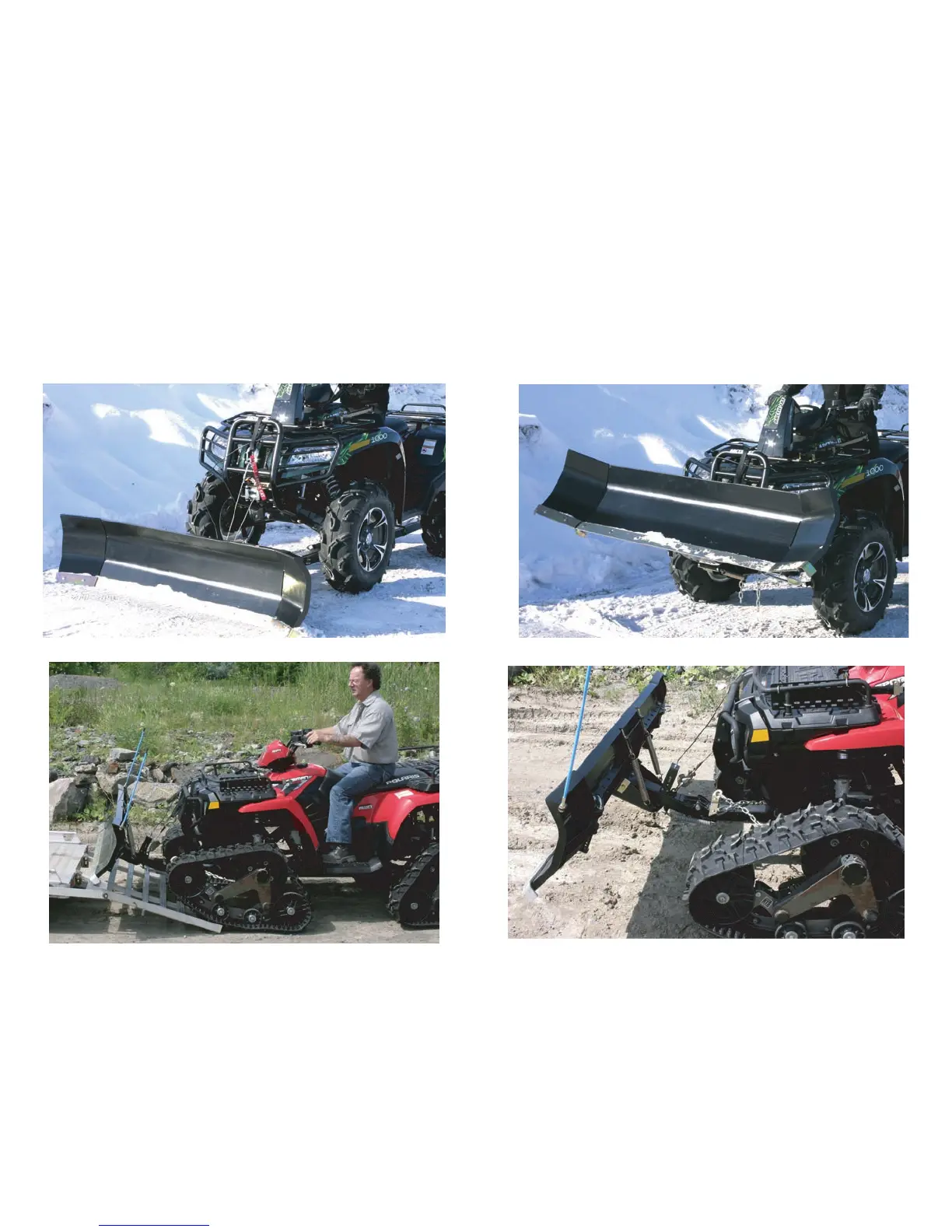

Raises the shovel 25 degrees higher than conventional plow systems. The only arm that allows you to load a vehicle (ATV or UTV) equipped with a plow
on a trailer or truck. In addition, thanks to the articulation of the arm, you can push the snow further up your snowbanks.
The frame is equipped with a shock absorbing device that minimizes the possibility of damages that might be caused to the ATV in the event of
a collision between the plow and a fixed object.
The length of the frame is adjustable from 85” to 114”, allowing installation on most ATV models. For UTVs or ATVs equipped with a track system
(like Camoplast’s Tatoo kit), an frame extension is available as a option (see page 31), changing the lengths of the frame for 114” to 144”.
We strongly recommend the use of the pulley assembly for vehicles with a winch positioned too low.
You will find in these pages the assembly information and use of the push tube.
