Chapter 2
21
QBOX-1010 User’s Manual
Connecting USB mouse & keyboard
Your QBOX-1010 does not come with a keyboard and mouse, but you can use any
USB keyboard or mouse with your computer.

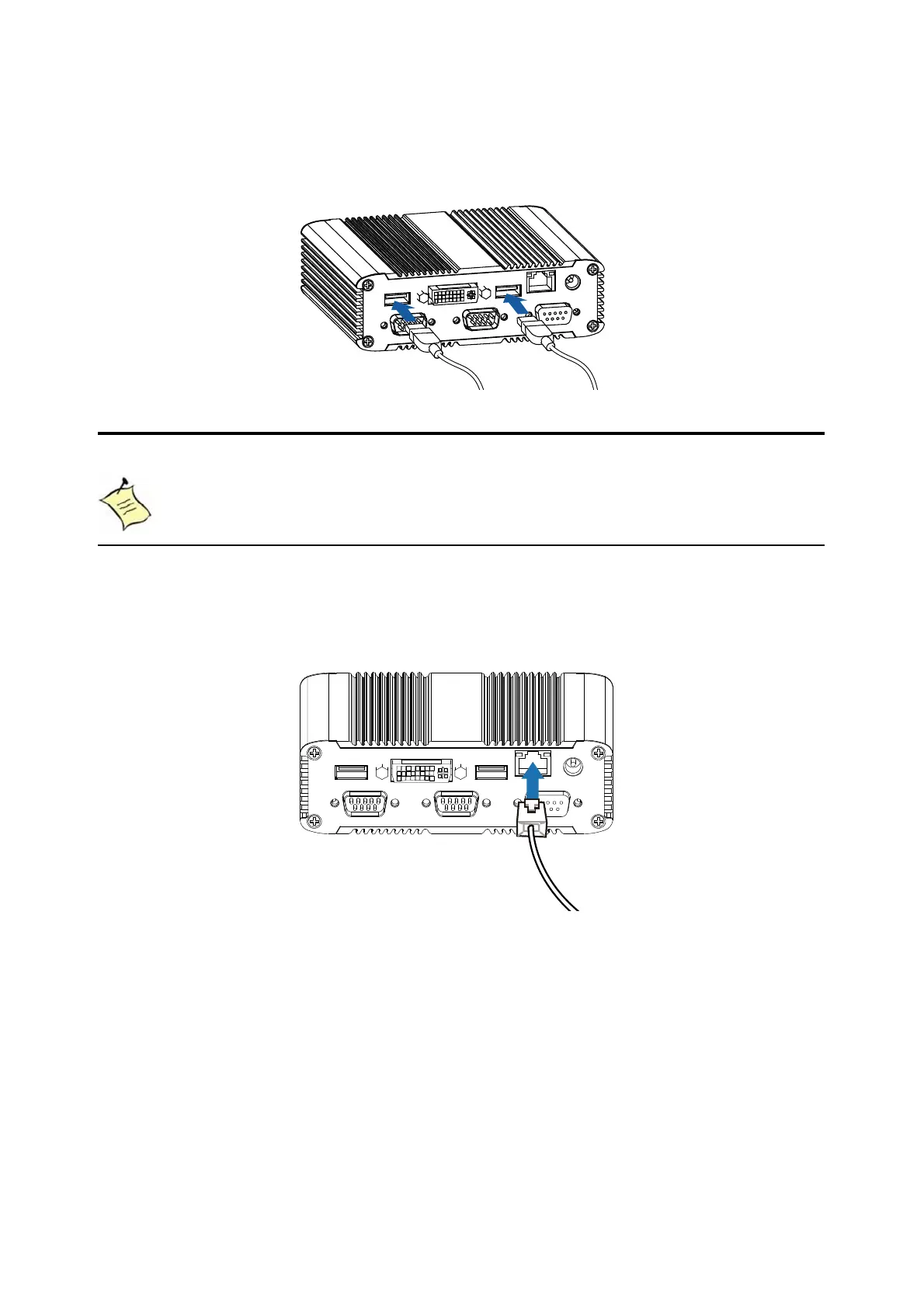

Figure 5 Connecting USB mouse & keyboard
NOTE
Using a third-party USB mouse or keyboard may require software drivers.
Check the manufacturer’s website for the latest software drivers.
 Connecting to a network device
Connect one end of a network cable to the LAN port on the system rear panel and
the other end to a hub or switch.
Figure 6 Network cable with RJ45 connector
 Turning on the system
1. Connect the power adapter cable to the DC jack (DC IN) of the QBOX-1010
2. Connect the power cable to the power adapter
3. Connect the power cable to a power outlet
4. Press the power switch on the front panel to turn on the system
