Chapter 2
24
QBOX-1010 User’s Manual

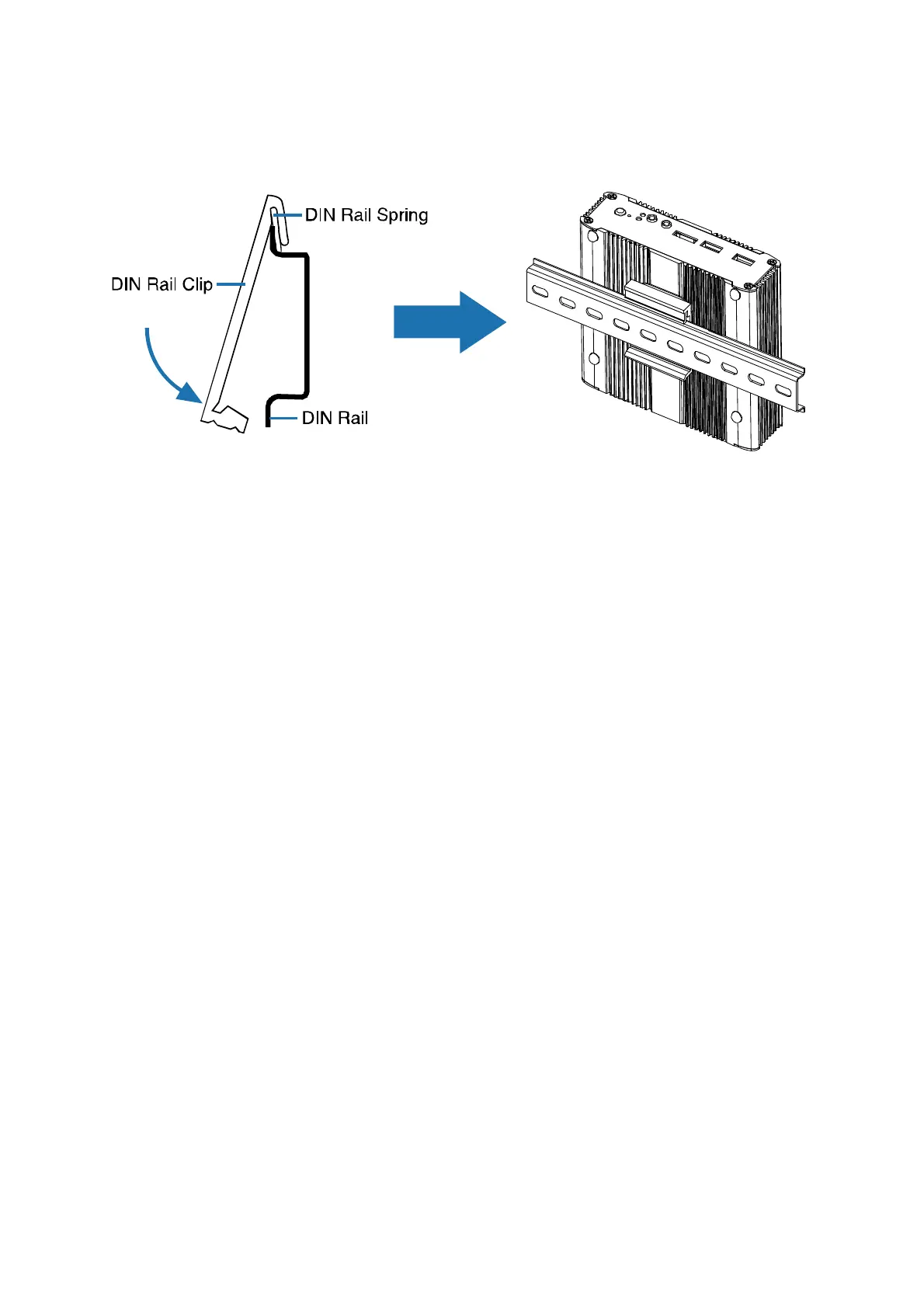

3. Clip the system onto the DIN rail as shown below.
Figure 11 DIN-Rail mounting (2)
