Quanmax QBOX-1010 - Install your DIN-Rail Mounting Kit

Chapter 2
23
QBOX-1010 User’s Manual

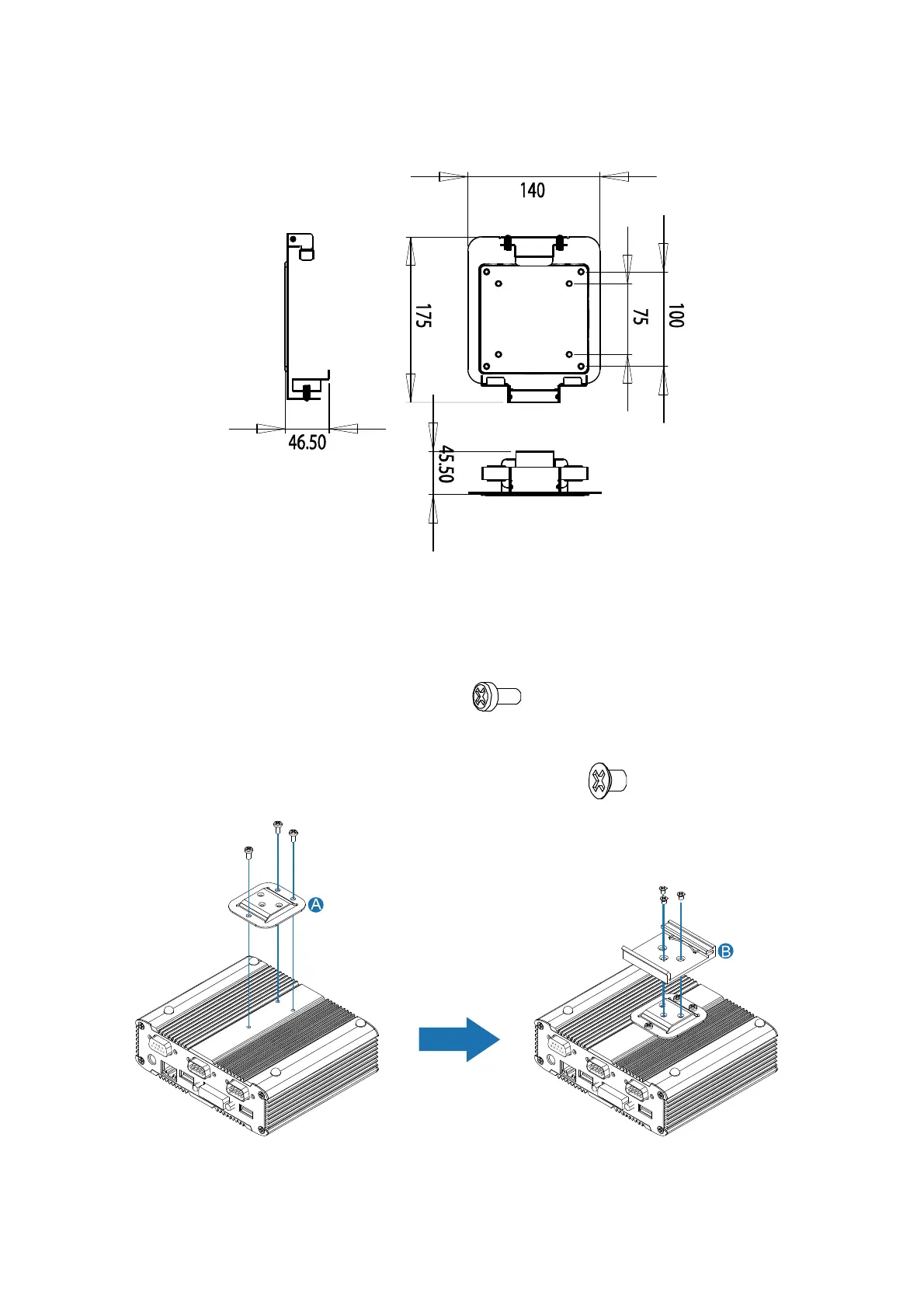

VESA Mounting Kit Dimension
 Install your DIN-Rail Mounting Kit
1. Secure the DIN-Rail mounting kit “A” (optional accessory) to your system
with 3x M3x6 round head screws.
2. Secure the DIN-Rail mounting kit “B” (optional accessory) to DIN-Rail
mounting kit “A” with 3x M3X4 flat head screws.
Figure 10 DIN-Rail mounting (1)
