Drive Dependent Configuration B-3
B-
Drive Dependent Configuration
This section describes the options you can select by installing
jumpers on the DLT Tape Drives.
SCSI Bus Parity
The following paragraphs detail information about parity
selection on different drive types.
DLT4000 Drives
If your host computer system does not generate SCSI bus
parity, you can disable parity checking in the DLT drives by
installing a jumper over two pins on the SCSI ID connector.
See Figure B-1 for location of the connector.

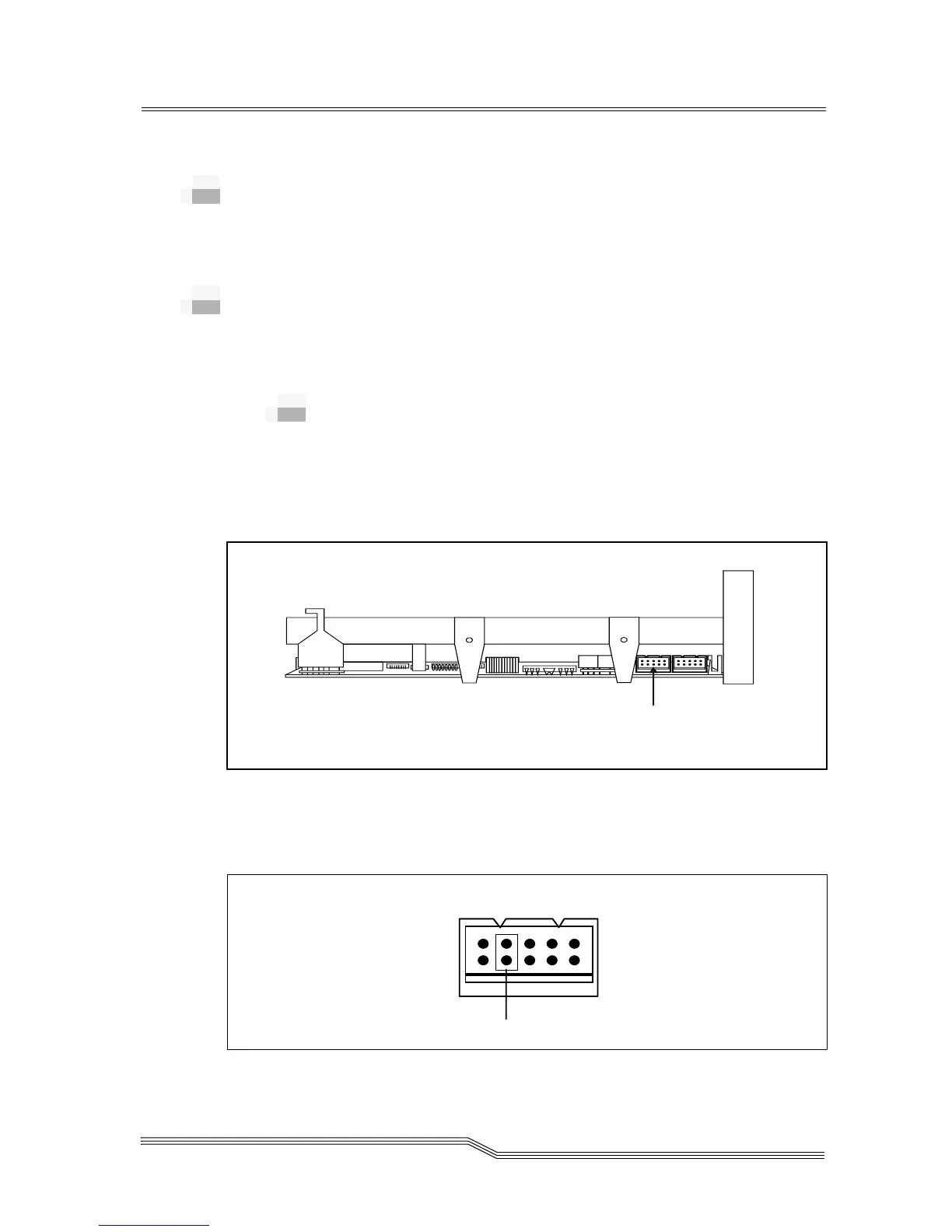

Figure B-1
DLT4000 Tape Drive Connectors (Left Side)
Figure B-2 shows which pins of the SCSI ID connector have to
be jumpered to disable parity.
Figure B-2
Disable Parity Pins on SCSI ID Connector
Left Side
SCSI ID
onnector
Front
Bezel
Disable
Parity
