SCSI Bus Termination and Terminator Power B-7
DLT7000 Drives
The DLT7000 drive can be configured to supply terminator
power, by jumpering specific pins on the TRM PWR
connector. See Figure B-7 and Figure B-8 for the location of the
TRM PWR connector.

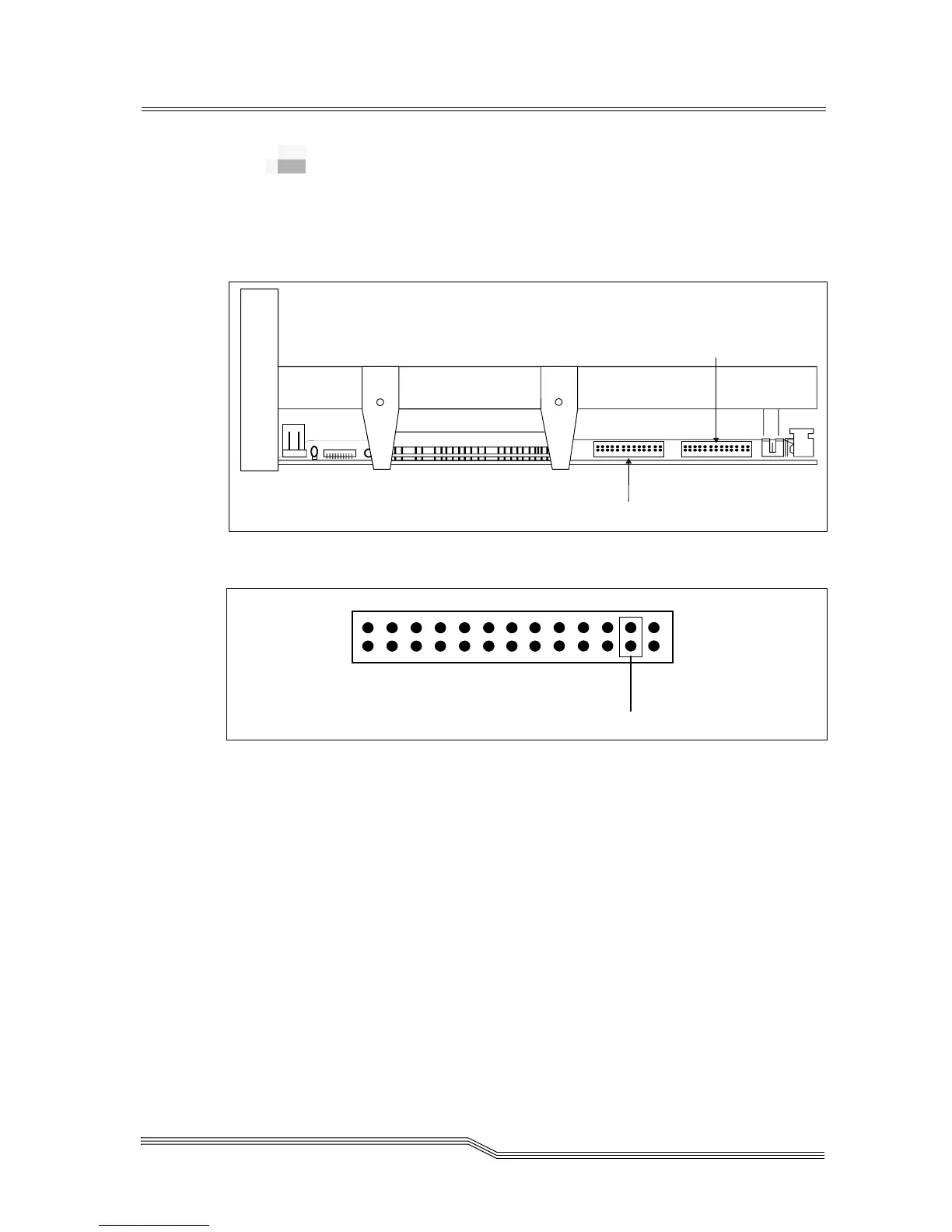

Figure B-7 DLT7000 Tape Drive Connectors (right side)
Figure B-8 Term Power Pins on TRM PWR Connector
Front
Bezel
Ri
ht Side
TRM PWR Connector
DFDT Connector
TERMPOWER
