Quantum DXi4700 Upgrade Guide

Installing Components in the Node
Quantum DXi4700 Capacity Upgrade Guide 15
Table 1: DXi4700 Node Hard Drive Configurations
DXi4700 Configuration Node Hard Drives Actions to Take
5 TB
11 TB
6 l Slots 0-5
19 TB
27 TB
45 TB
63 TB
81 TB
99 TB
117 TB
135 TB
12 l Slots 0-5
l Slots 6-11

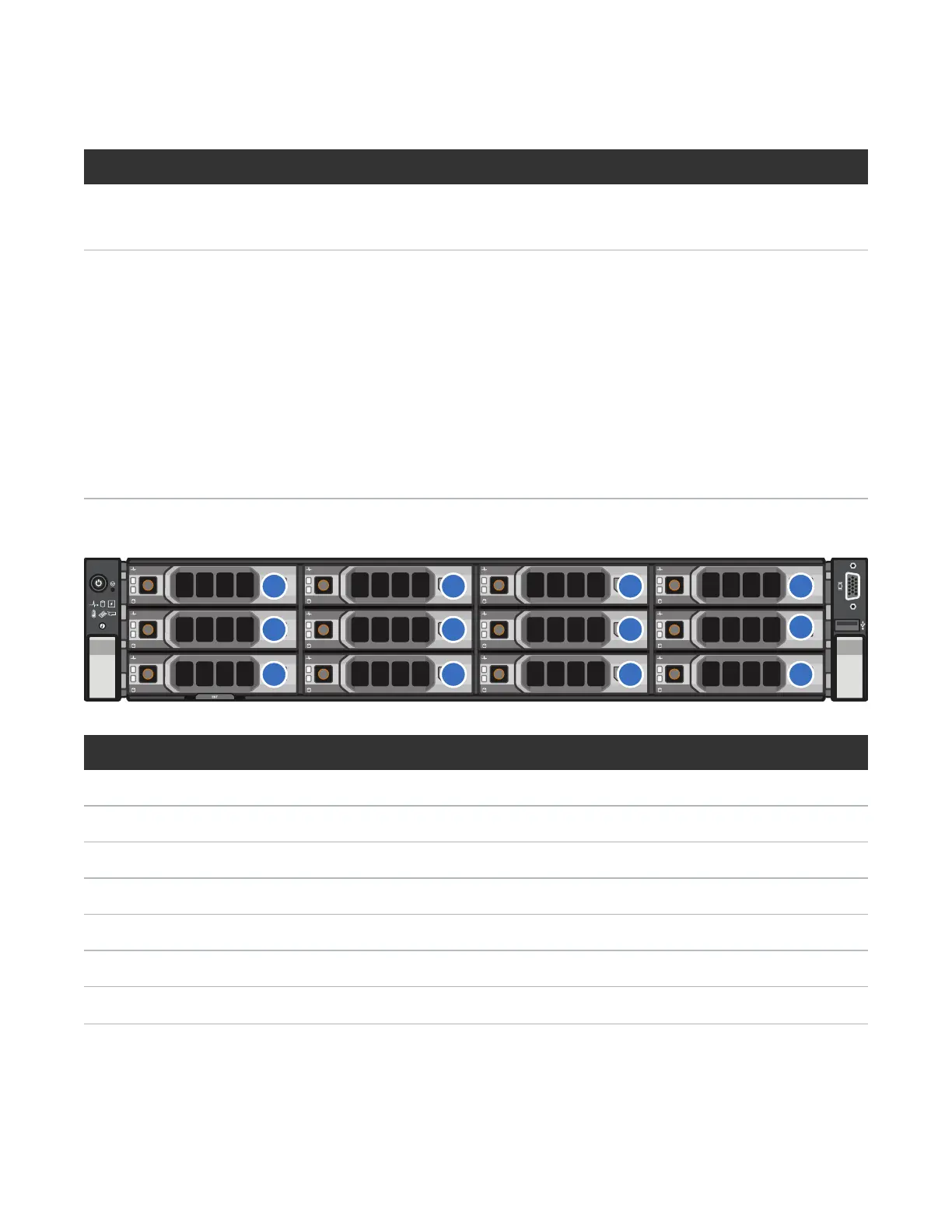

Figure 8: Node Hard Drive Locations
1
2
3
4
5
6
7
8
9
10
11
12
0
1
2
3
4
5
6
7
8
9
10
11
Item Description
0 HDD Slot 0 (Do not remove)
1 HDD Slot 1 (Do not remove)
2 HDD Slot 2 (Do not remove)
3 HDD Slot 3 (Do not remove)
4 HDD Slot 4 (Do not remove)
5 HDD Slot 5 (Do not remove)
6 HDD Slot 6
