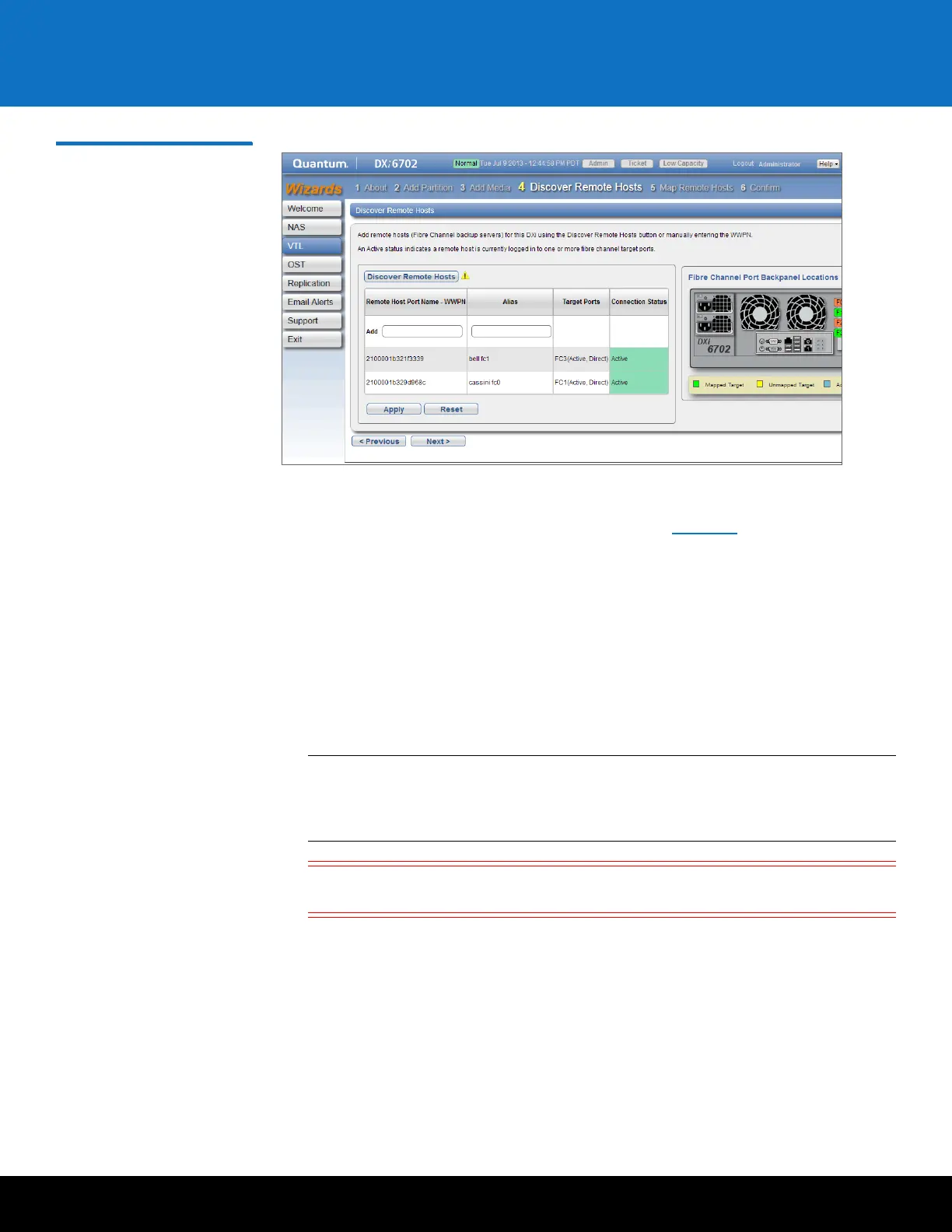

Figure 30 VTL Wizard: Discover
Hosts
Step 5: Map Hosts
1 Enter information about the host access group (see Figure 31):
• Group Name - Enter a name for the group.
• Partition - Select the partition to associate with the group.
• Remote Host - Select the host (initiator) to associate with the group.
• Ta r g et - Select the target (port) to associate with the group.
The Backpanel Locations section displays a graphical representation of the
Fibre Channel and Ethernet ports as they appear on the rear of the system. A
dark border displays around the currently selected target.
2 (Optional) Select the Use CCL check box to use the Command and Control LUN.
Note: The CCL (Command and Control LUN) is not used in most environments.
This option is recommended for host access groups that contain an HP-UX
host. It can also be used if hosts that are not assigned to any host access
group exist in the SAN. The CCL is accessible to hosts only through LUN 0.
Caution: If you are not sure if you should use CCL, contact Quantum Customer
Support before you enable this option.
3 Click Add.
4 (Optional) To map additional hosts, repeat Steps 1–3.
5 Click Next to continue.
