Chapter 2 Installation and Quick Start
Installing an Internal LTO-2 Half-Height Tape Drive
LTO-2 Half-Height Tape Drive User’s Guide 9

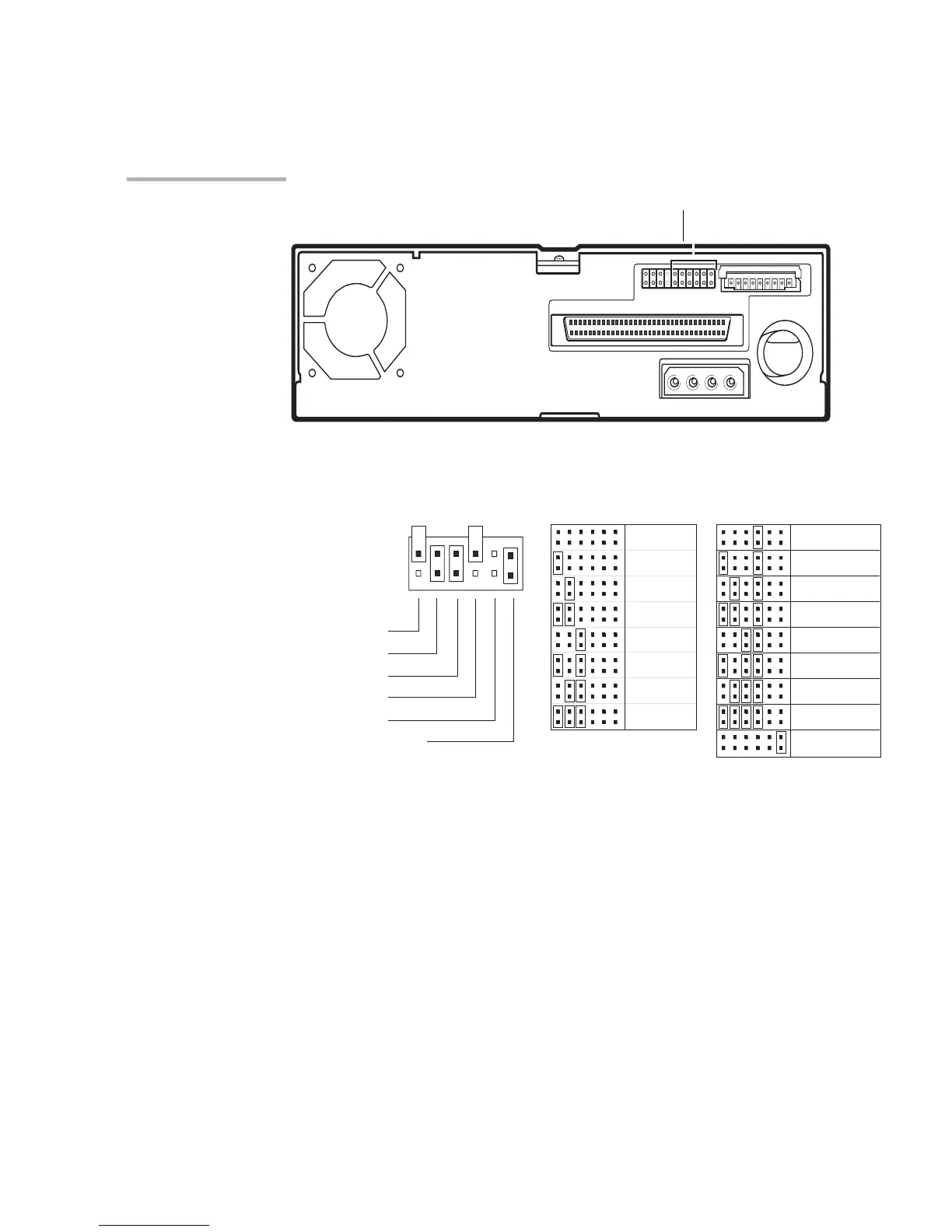

Figure 2 Internal
LTO-2 Half-Height
Tape Drive Jumper
Settings
SCSI ID=0
SCSI ID=1
SCSI ID=2
SCSI ID=3
SCSI ID=4
SCSI ID=5
SCSI ID=6
SCSI ID=7
SCSI ID=8
SCSI ID=9
SCSI ID=10
SCSI ID=11
SCSI ID=12
SCSI ID=13
SCSI ID=14
SCSI ID=15
Term. power
Drive Configuration Jumper Pins
Drive Configuration
Jumper Pins
Jumper Settings
Default
settings:
Pins: Function:
1-2 SCSI ID bit 0
3-4 SCSI ID bit 1
5-6 SCSI ID bit 2
7-8 SCSI ID bit 3
9-10 Reserved
11-12 Termination Power
