Chapter 3 Operation
Understanding the Front Panel Display
20 LTO-2 Half-Height Tape Drive User’s Guide
Understanding the Front Panel Display 3

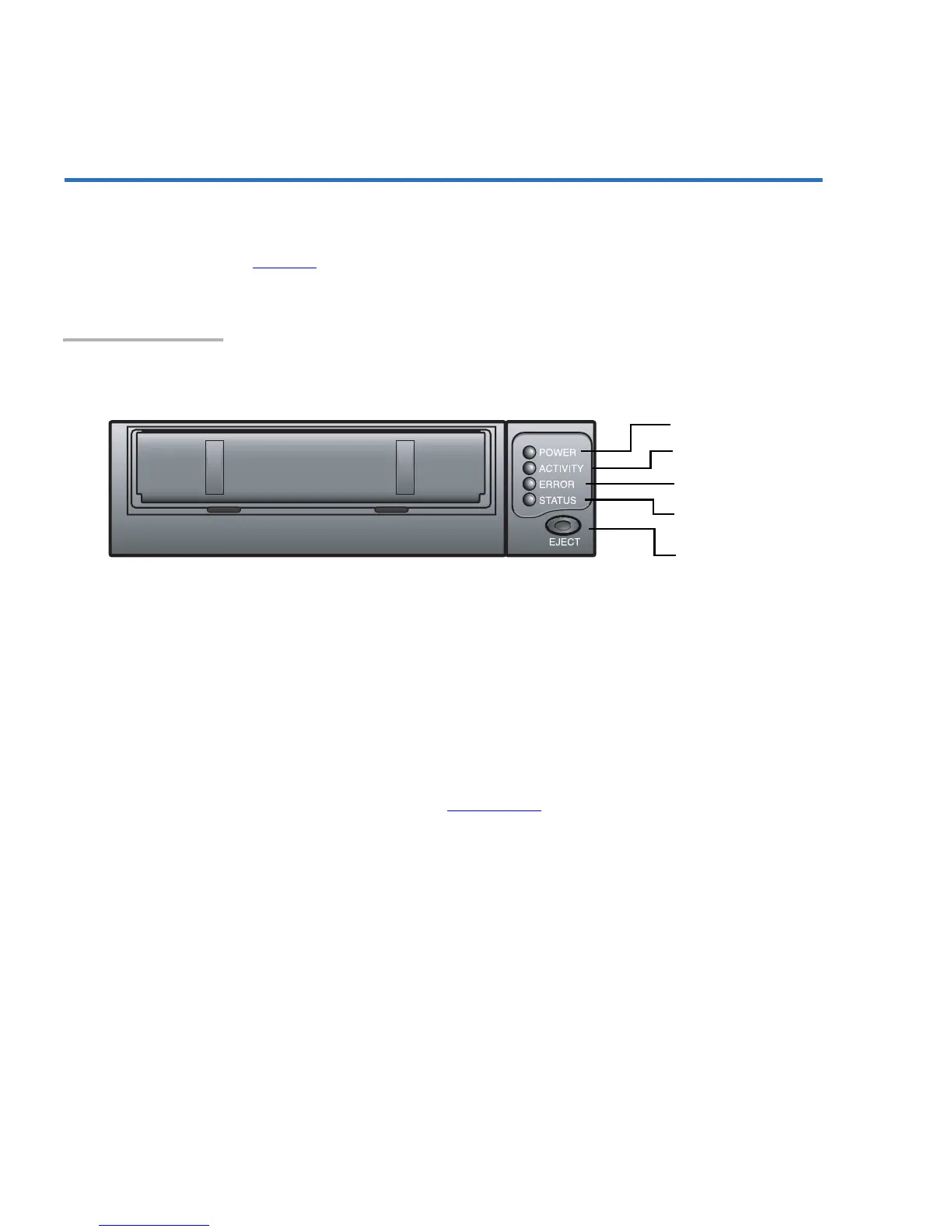

Figure 8 shows a generalized view of the LTO-2 Half-Height Tape Drive
front-panel display.
Figure 8 Generic
Front Panel Display
All drives have four LEDs on the front panel. The LED colors and
functions are as follows:
•
Power LED (green)
•
Activity LED (green)
•
Error LED (orange)
•
Status LED (amber)
The
Activity, Error, and Status LEDs blink or go on to indicate information
about the tape drive, see Blink Codes
.
Power LED
Activity LED
Error LED
Status LED
Tape Load/Unload
Button
