The logical status of digital input 1 will effect on the power output of PCU. Please refer to chapter
3.6 for detail.
The reference connection of digital input 1 is shown in following figure.

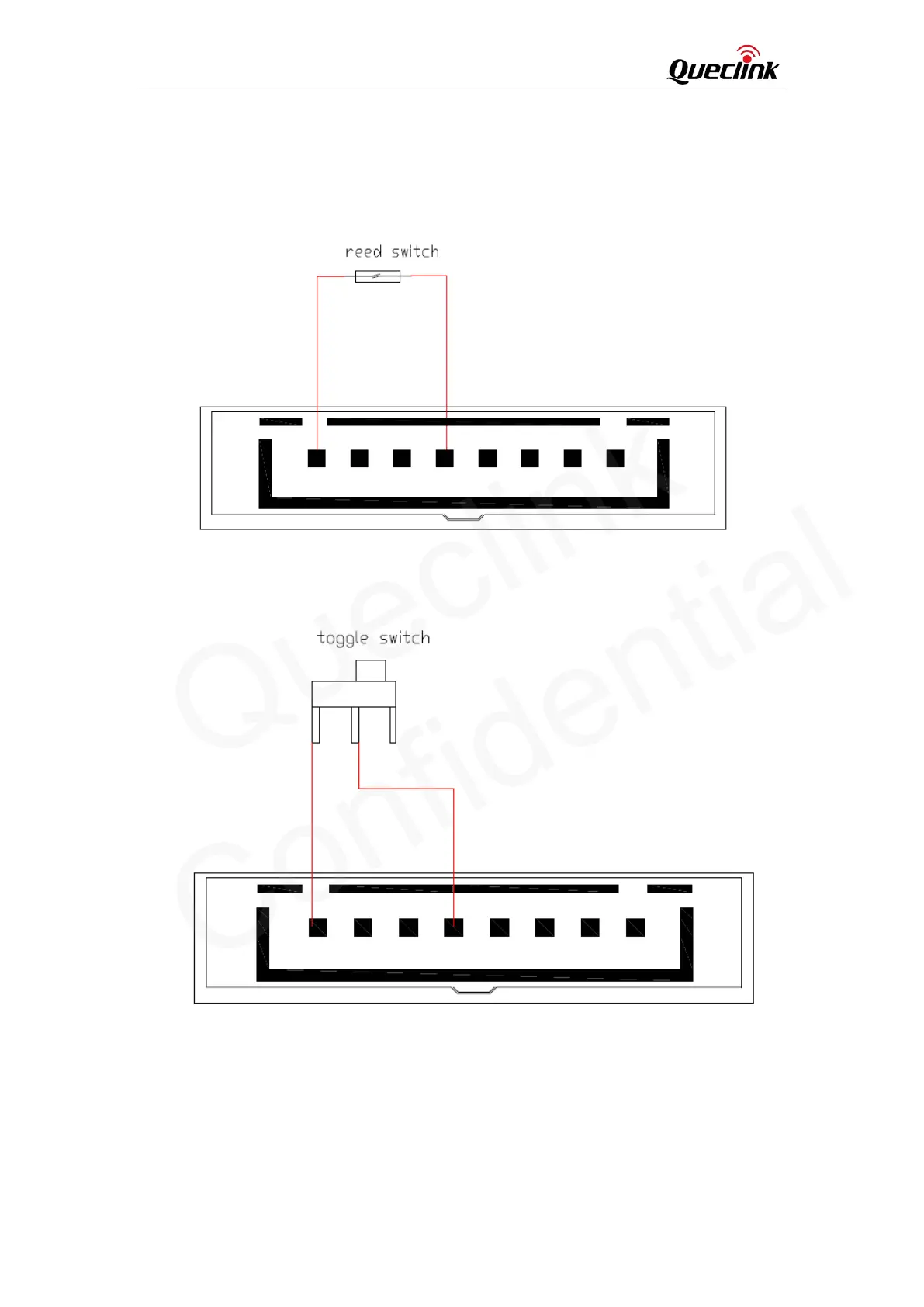

Figure 5: Digital Input 1 Connect to Reed Switch
Figure 6: Digital Input 1 Connect to Toggle Switch
3.2.2.2. Digital Input 2
Digital input 2 works as a trigger switch and it is recommended to connect it to a tact switch or a
reed switch.
