Queclink GV50 User Manual

GV50(P) User Manual
TRACGV50UM001 - 9 -
Figure 3. GV50 2-Pin Cable
Table 4. Description of 2-PIN Cable
Index
Description
Remark
1
VIN (red)
External DC power input, 8-32V
2
GND (black)
GND
2.3.2 GV50P External Interface
The GV50P has a 4-PIN cable. The pin definition of the 4-pin power cable is shown below.

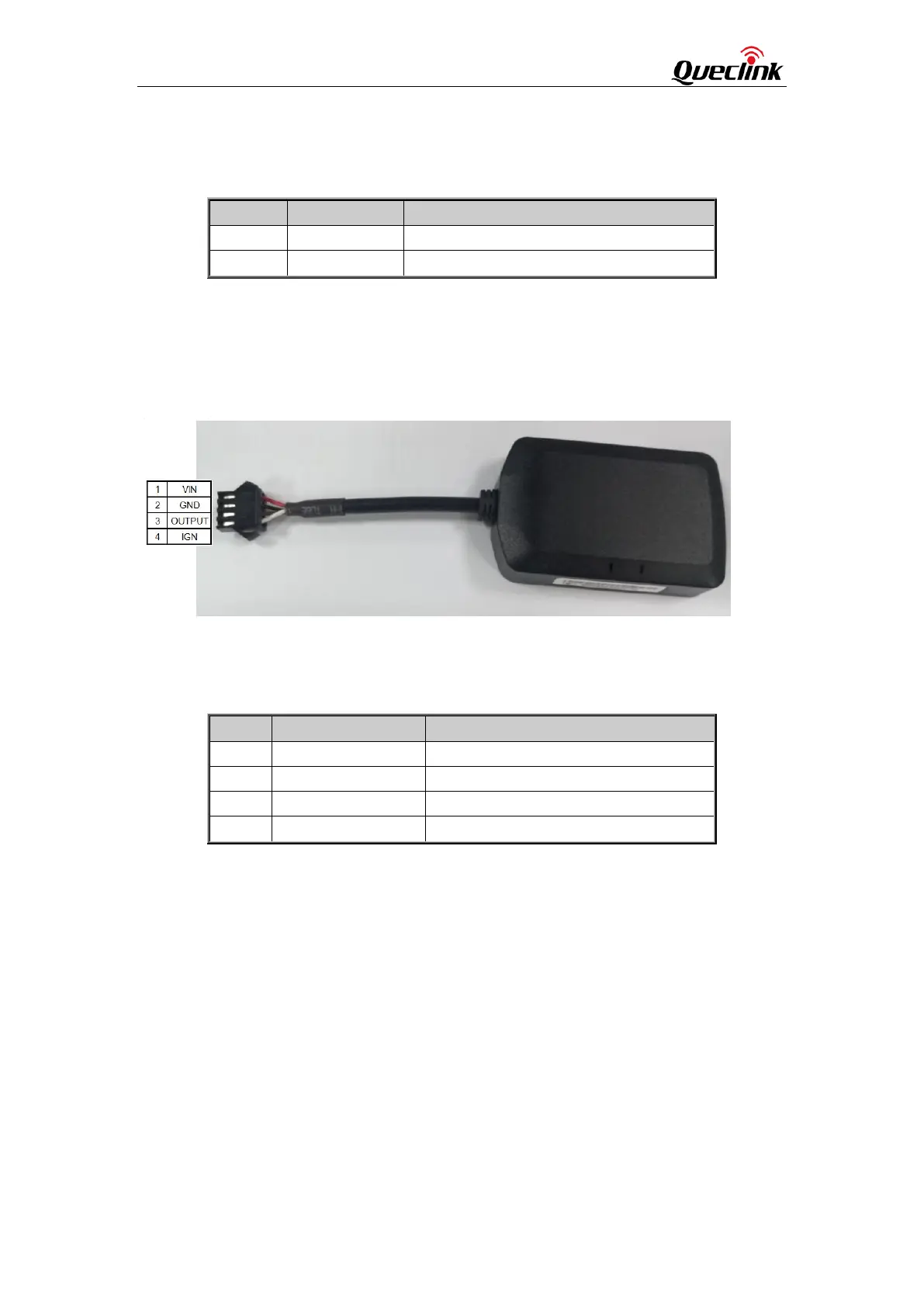

Figure 4. GV50P 4-Pin Cable
Table 5. Description of 4-Pin Cable
Index
Description
Remark
1
VIN (red)
External DC power input, 8-32V
2
GND (black)
GND
3
OUTPUT(brown)
Digital output
4
IGN (white)
Ignition
2.3.3 Internal Interface
GV50(P) has a Micro USB connector which is shown in the following figure.
