GV600MG User Manual

QSZTRACGV600UM0106 10

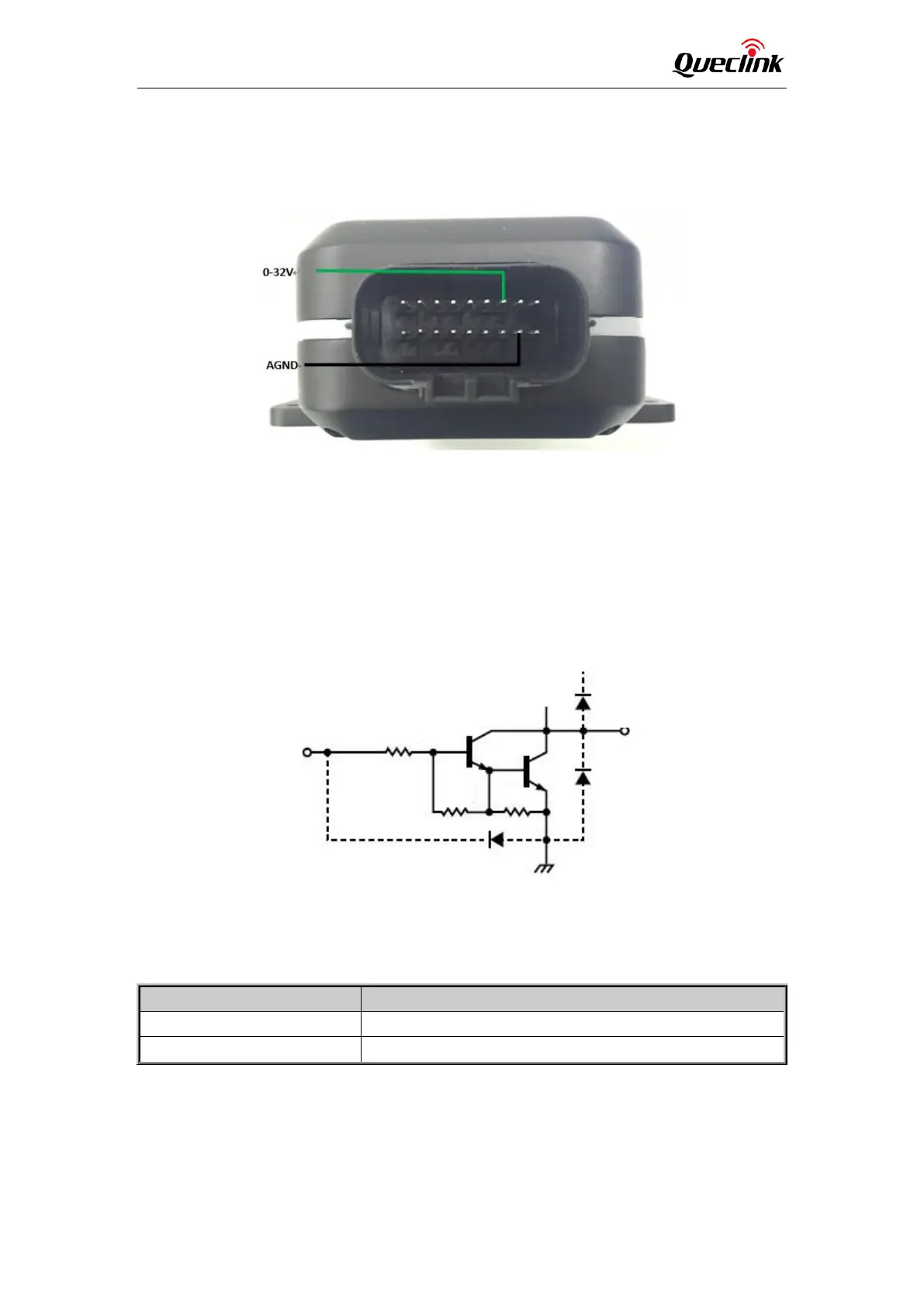

3.7. Analogue Inputs

There is one analogue input on GV600MG, and the analogue input voltage range is from 0

to 32V. The following picture shows the recommended connection.

Figure 8. Typical Analogue Input Connection

Note:

Pin 6 is a multifunction pin: it can be configured as an analogue input.

3.8. Digital Outputs

There are four digital outputs on GV600MG. All are of open drain type and the

maximum drain current is 150 mA. Each output has a built-in over current PTC resettable

fuse.

Figure 9. Digital Output Internal Drive Circuit

Table 9. Electrical Characteristics of Digital Outputs

Logical Status

Electrical Characteristics

Enable

<1.5V @150 mA

Disable

Open drain
