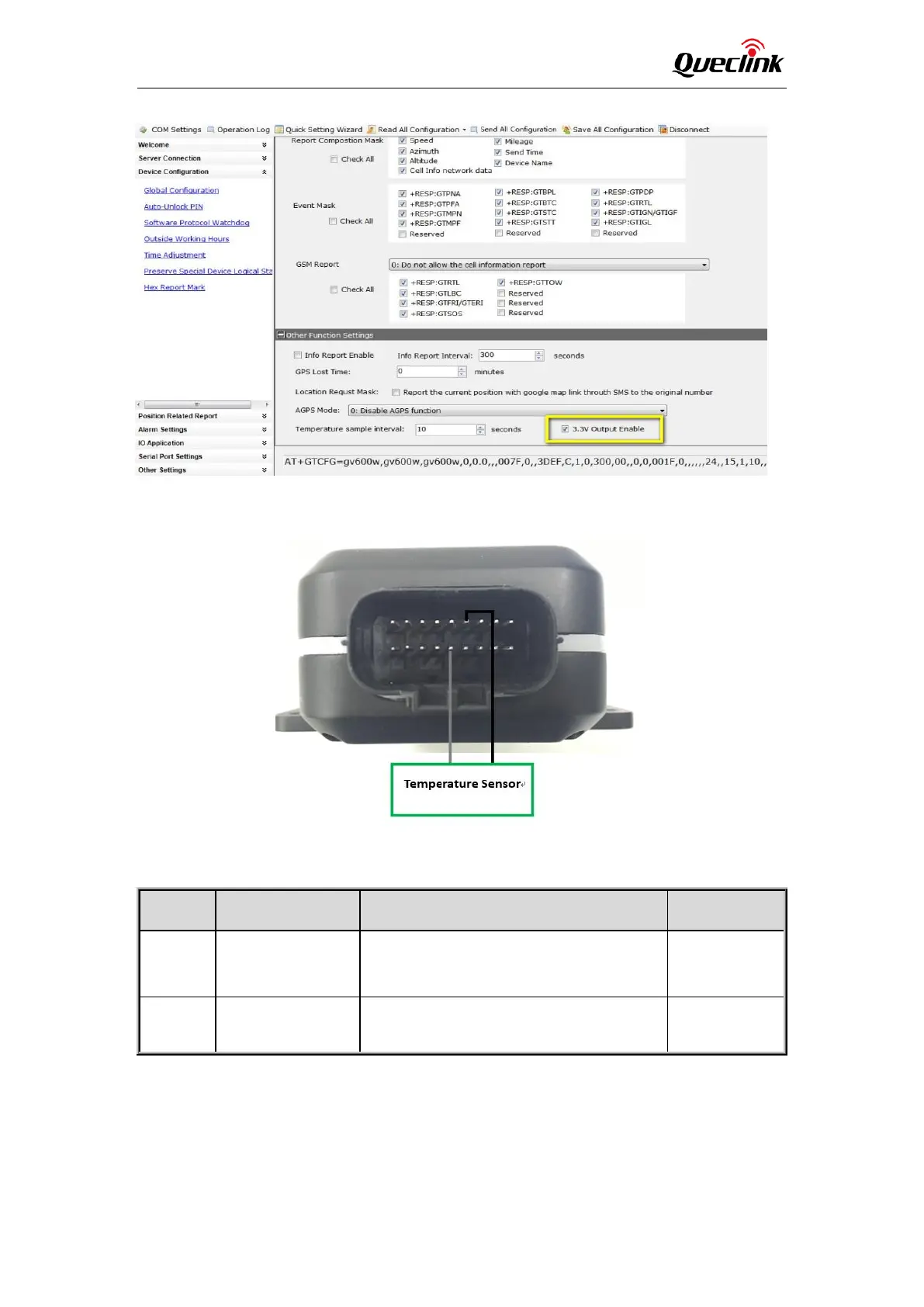

 If the cable of temperature sensor has two wires, connect the temperature sensor to GV600
following the diagram and table as below:
Figure 15. Typical Connection with a Temperature Sensor
GV600
18-Pin Cable Color
Description
Temp Sensor
GND
Black/White
(pin 8)
Connect the ground wire of temp sensor to
pin 8 of GV600
1-Wire ground
(Green)
1_WIRE
Gray
(pin 9)
Connect the data wire of temp sensor to
pin 9 of GV600
1-Wire data
(Yellow)
