6.3.2. Plastic Reel

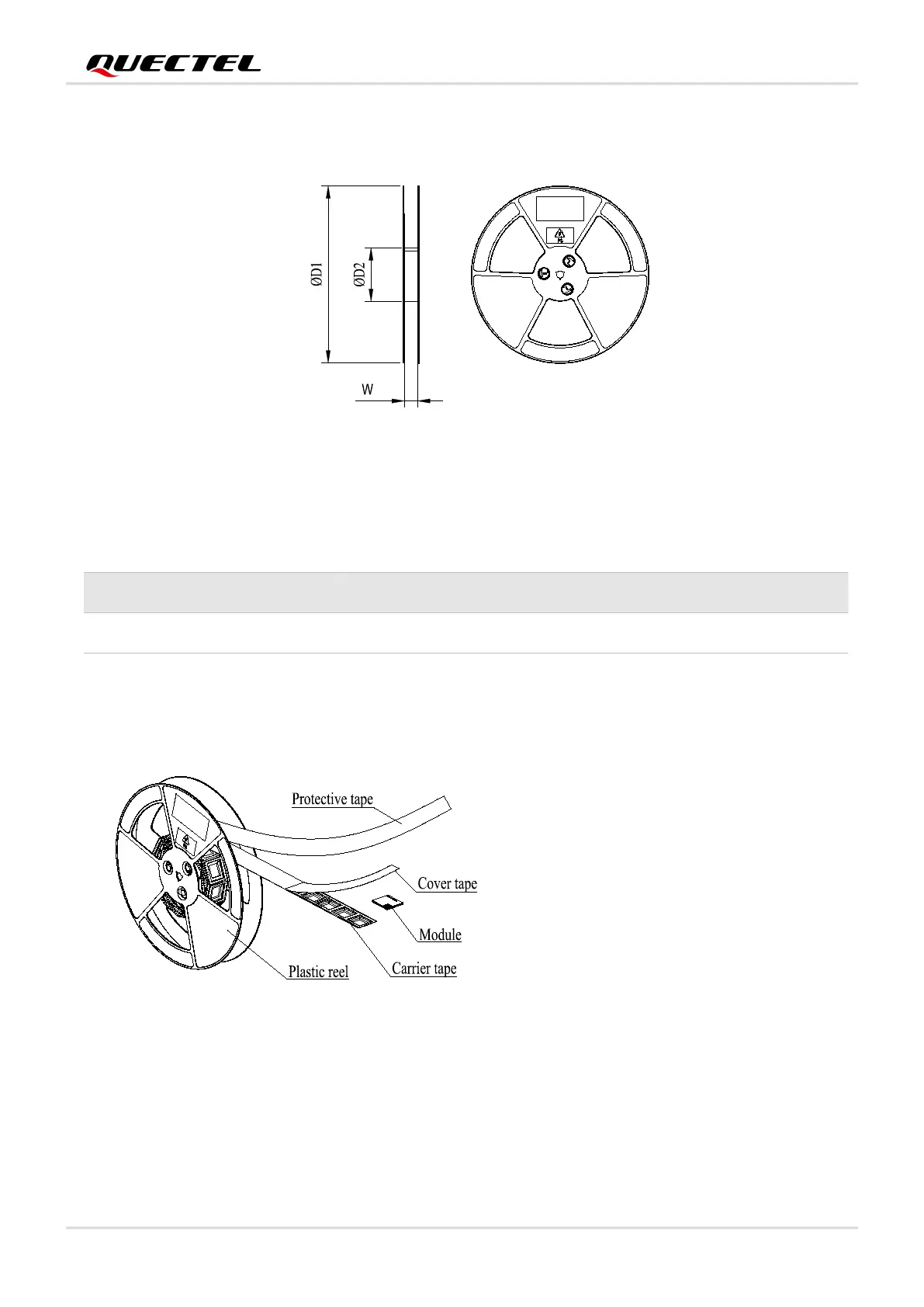

Figure 26: Plastic Reel Dimension Drawing
Table 27: Plastic Reel Dimension Table (Unit: mm)
6.3.3. Packaging Process
Place the module into the carrier tape and
use the cover tape to cover it; then wind the
heat-sealed carrier tape to the plastic reel
and use the protective tape for protection. 1
plastic reel can load 250 modules.
øD1
øD2
W
330
100
32.5
