4.5. Network Status Indication
BG95/BG96 provides one network status indication pin: NET_STATUS/NETLIGHT. The pin is used to
drive a network status indication LED. A reference circuit is shown in the following figure.
4.7K
47K
VBAT
2.2K
Module
BG96 NETLIGHT
BG95 NET_STATUS

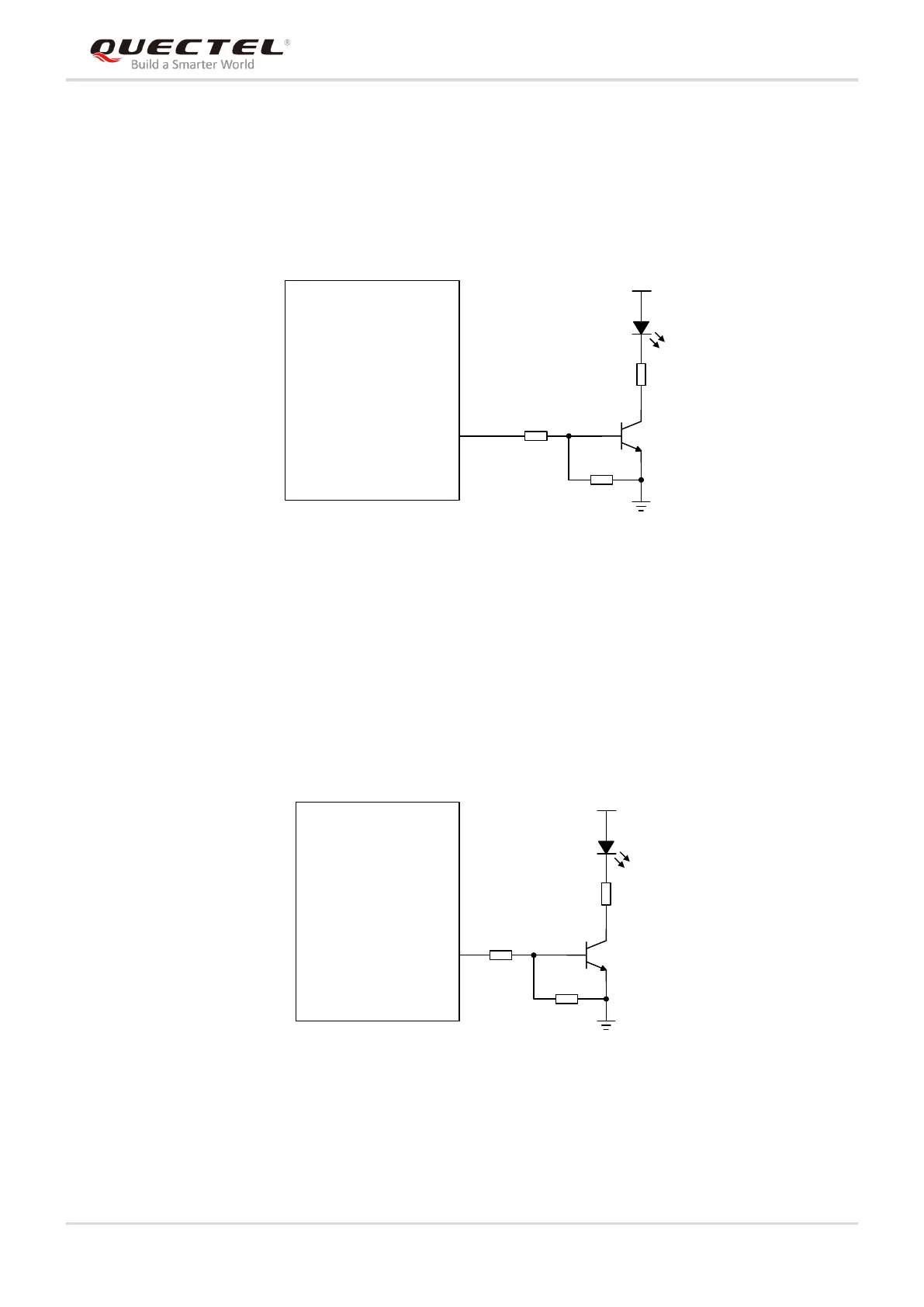

Figure 11: Reference Circuit of NETLIGHT
4.6. Operation Status Indication
BG95/BG96 provides a STATUS pin to indicate the module’s operation status. STATUS will output high
level when the module is powered on. The following figure shows a reference circuit of STATUS.
4.7K
47K
VBAT
2.2K
BG95/BG96
STATUS
Figure 12: Reference Circuit of STATUS

Quectel BG95 Specifications

General

Chipset	Qualcomm MDM9205
LTE Category	Cat M1/Cat NB2
GNSS	GPS/GLONASS/BeiDou/Galileo/QZSS
Operating Temperature	-40°C to +85°C
Storage Temperature	-45°C to +90°C
SIM Interface	1.8V/3V
Dimensions	23.6 mm × 19.9 mm × 2.2 mm
LTE Cat NB2 Data Rate	127kbps (DL), 158kbps (UL)
EGPRS Data Rate	296kbps (DL), 236.8kbps (UL)
Supply Voltage Range	3.3V to 4.3V
Power Consumption	PSM: 3.2 μA
Interfaces	UART, USB 2.0, I2C, SPI, GPIO, ADC
SMS	Text and PDU Mode
Protocols	TCP/UDP/PPP
Certifications	FCC, IC, CE, RCM, PTCRB, GCF
Frequency Bands	GSM: 850/900/1800/1900MHz
