Quectel BG95 User Manual

LPWA Module Series
BG95&BG96 Compatible Design
BG95&BG96_Compatible_Design 7 / 47
2 General Descriptions
2.1. Product Description
BG96 is an embedded LPWA (LTE Cat M1/LTE Cat NB1/EGPRS) wireless communication module. It
provides data connectivity on LTE-TDD/LTE-FDD/GPRS/EGPRS networks, and supports half-duplex
operation in LTE networks. It also provides GNSS
1)
and voice
2)
functionality to meet customers’ specific
application demands. For more details, please refer to document [1].
BG95 is an embedded LPWA (LTE Cat M1/LTE Cat NB2
3)
/EGPRS) wireless communication module. It
provides data connectivity on LTE-FDD/GPRS/EGPRS networks, and supports half-duplex operation in
LTE networks. It also provides GNSS and voice
2)
functionality to meet customers’ specific application
demands. BG95 includes seven variants: BG95-M1, BG95-M2, BG95-M3, BG95-N1, BG95-M4*,
BG95-M5* and BG95-MF
4)
. For more details, please refer to document [2].
BG95 and BG96 are designed as compatible products. Customers can choose a suitable module
according to specific application requirements. The compatible design guideline ensures a smooth
migration between the modules for customers’ products.

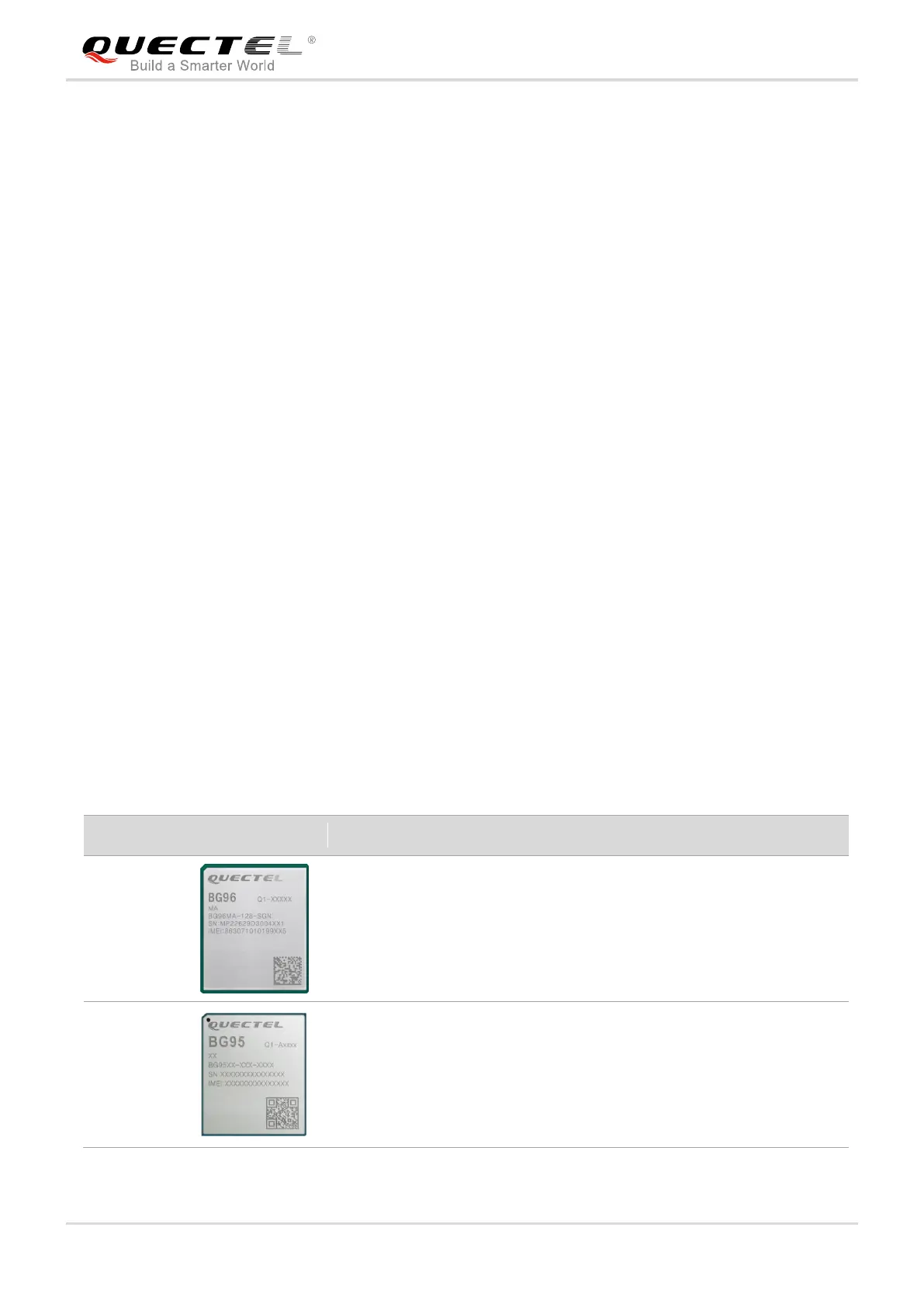

Table 1: Module General Information
Module
Appearance
Packaging
Dimensions (mm)
Description
BG96
102-pin LGA
26.5 × 22.5 ×2.3
LTE Cat M1/Cat NB1/
EGPRS module
BG95
102-pin LGA
23.6 × 19.9 × 2.2
LTE Cat M1/Cat NB2/
EGPRS module

Quectel BG95 Specifications

General

Chipset	Qualcomm MDM9205
LTE Category	Cat M1/Cat NB2
GNSS	GPS/GLONASS/BeiDou/Galileo/QZSS
Operating Temperature	-40°C to +85°C
Storage Temperature	-45°C to +90°C
SIM Interface	1.8V/3V
Dimensions	23.6 mm × 19.9 mm × 2.2 mm
LTE Cat NB2 Data Rate	127kbps (DL), 158kbps (UL)
EGPRS Data Rate	296kbps (DL), 236.8kbps (UL)
Supply Voltage Range	3.3V to 4.3V
Power Consumption	PSM: 3.2 μA
Interfaces	UART, USB 2.0, I2C, SPI, GPIO, ADC
SMS	Text and PDU Mode
Protocols	TCP/UDP/PPP
Certifications	FCC, IC, CE, RCM, PTCRB, GCF
Frequency Bands	GSM: 850/900/1800/1900MHz
