LPWA Module Series
BG95&BG96 Compatible Design
BG95&BG96_Compatible_Design 38 / 47
5 Recommended Footprint and Stencil
Design
This chapter mainly introduces the recommended footprint and stencil design for BG95 and BG96
modules. All dimensions are measured in millimeter (mm), and the dimensional tolerances are ±0.05mm
unless otherwise specified.
5.1. Recommended Compatible Footprint

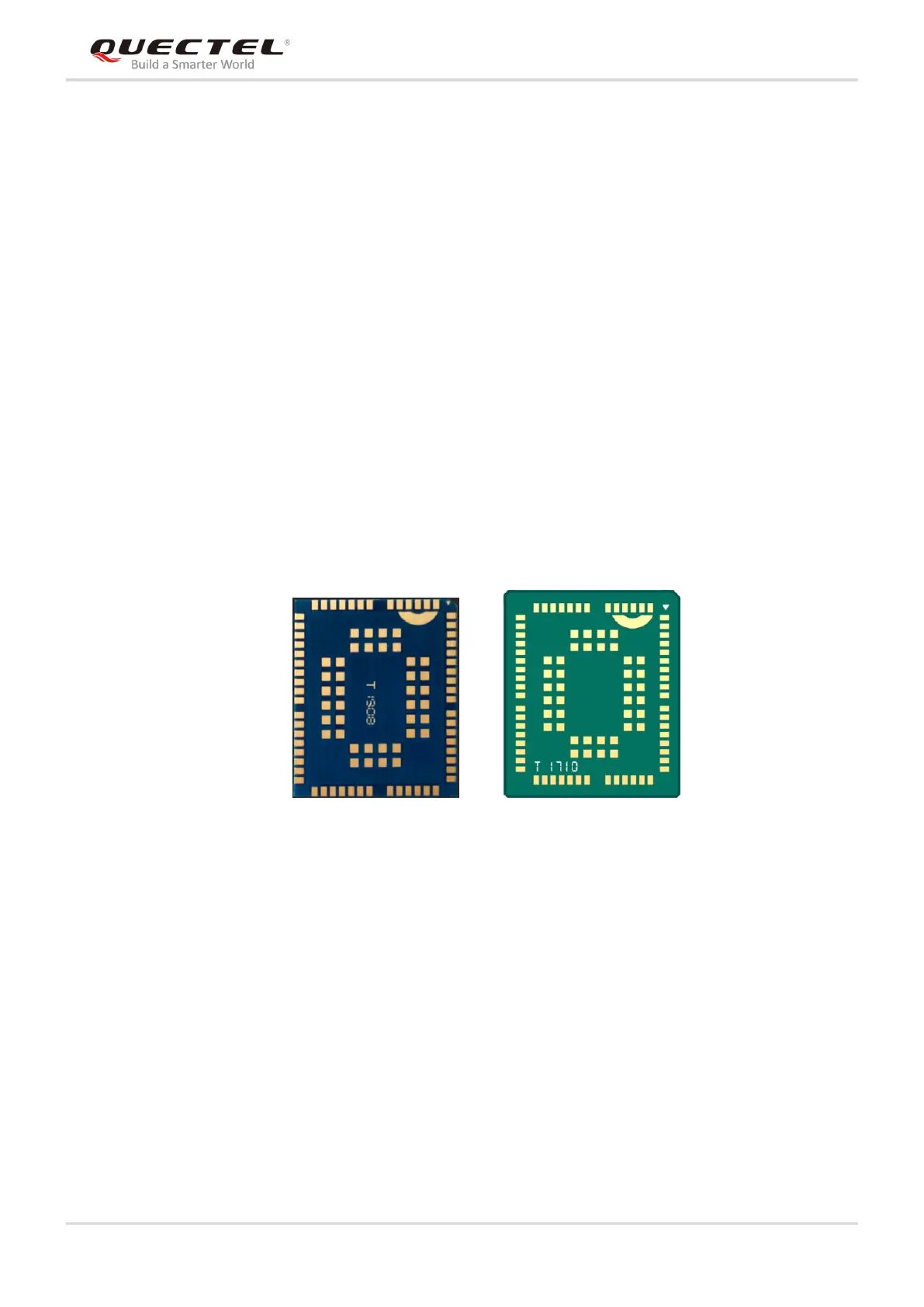

The following figure shows the bottom views of BG95 and BG96.
BG95 BG96
Figure 22: Bottom Views of BG95/BG96
The following figure shows the recommended compatible footprint of BG95 and BG96.
