7 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in mm,
and the dimensional tolerances are ±0.05mm unless otherwise specified.
7.1. Mechanical Dimensions of the Module
22.50±0.15
2.3±0.2
26.50±0.15

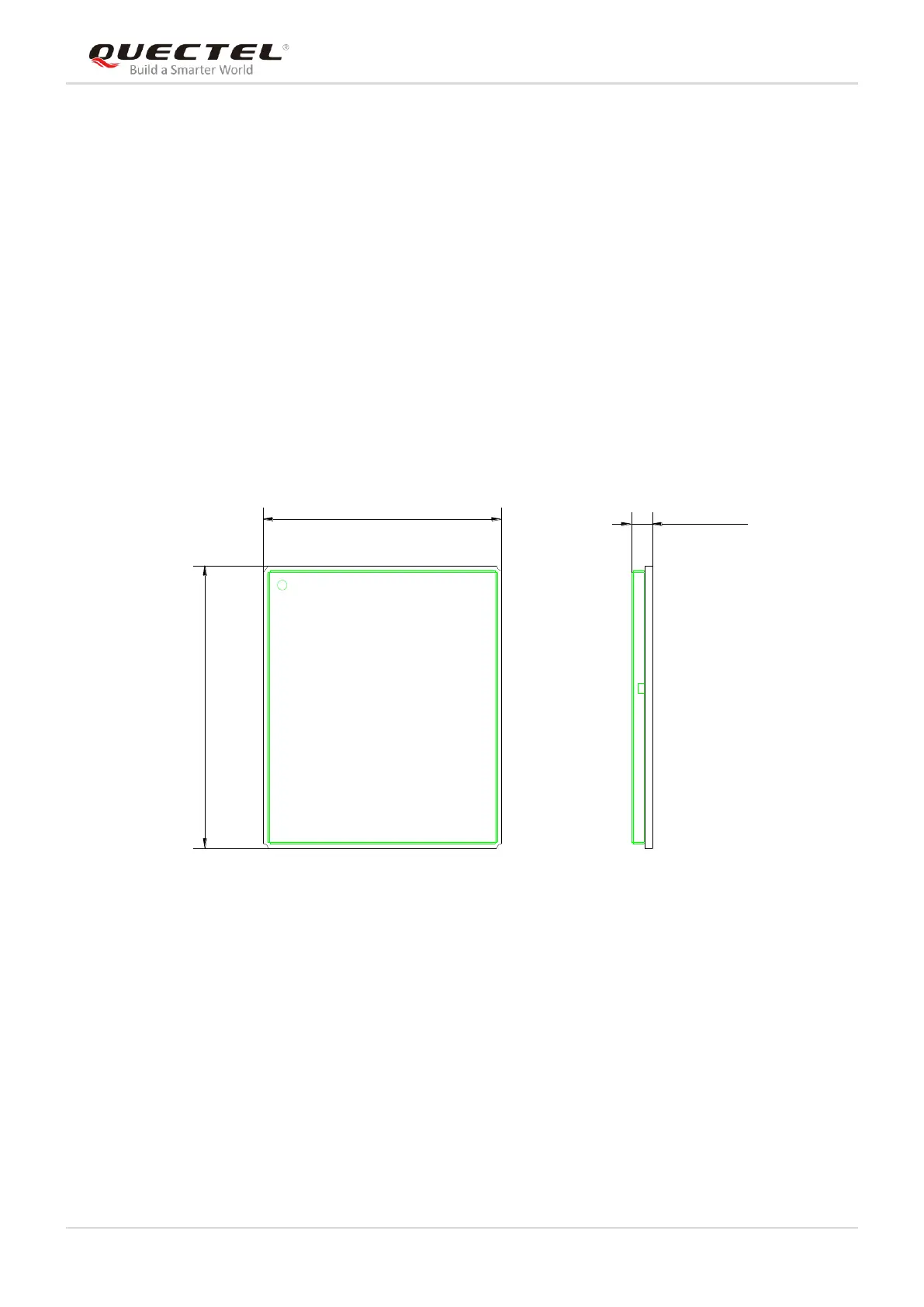

Figure 31: Module Top and Side Dimensions
Pin 1
