Quectel BG96 - Turn on and off Scenarios; Turn on Module Using the PWRKEY Pin

LPWA Module Series
BG96 Hardware Design
BG96_Hardware_Design 30 / 79
3.6. Turn on and off Scenarios
3.6.1. Turn on Module Using the PWRKEY Pin
The following table shows the pin definition of PWRKEY.
Table 7: Pin Definition of PWRKEY
When BG96 is in power off mode, it can be turned on by driving the PWRKEY pin to a low level for at least
500ms. It is recommended to use an open drain/collector driver to control the PWRKEY. After STATUS pin
outputs a high voltage level, PWRKEY pin can be released. A simple reference circuit is illustrated in the
following figure.
Turn on pulse
PWRKEY
4.7K
47K
≥500ms
10nF

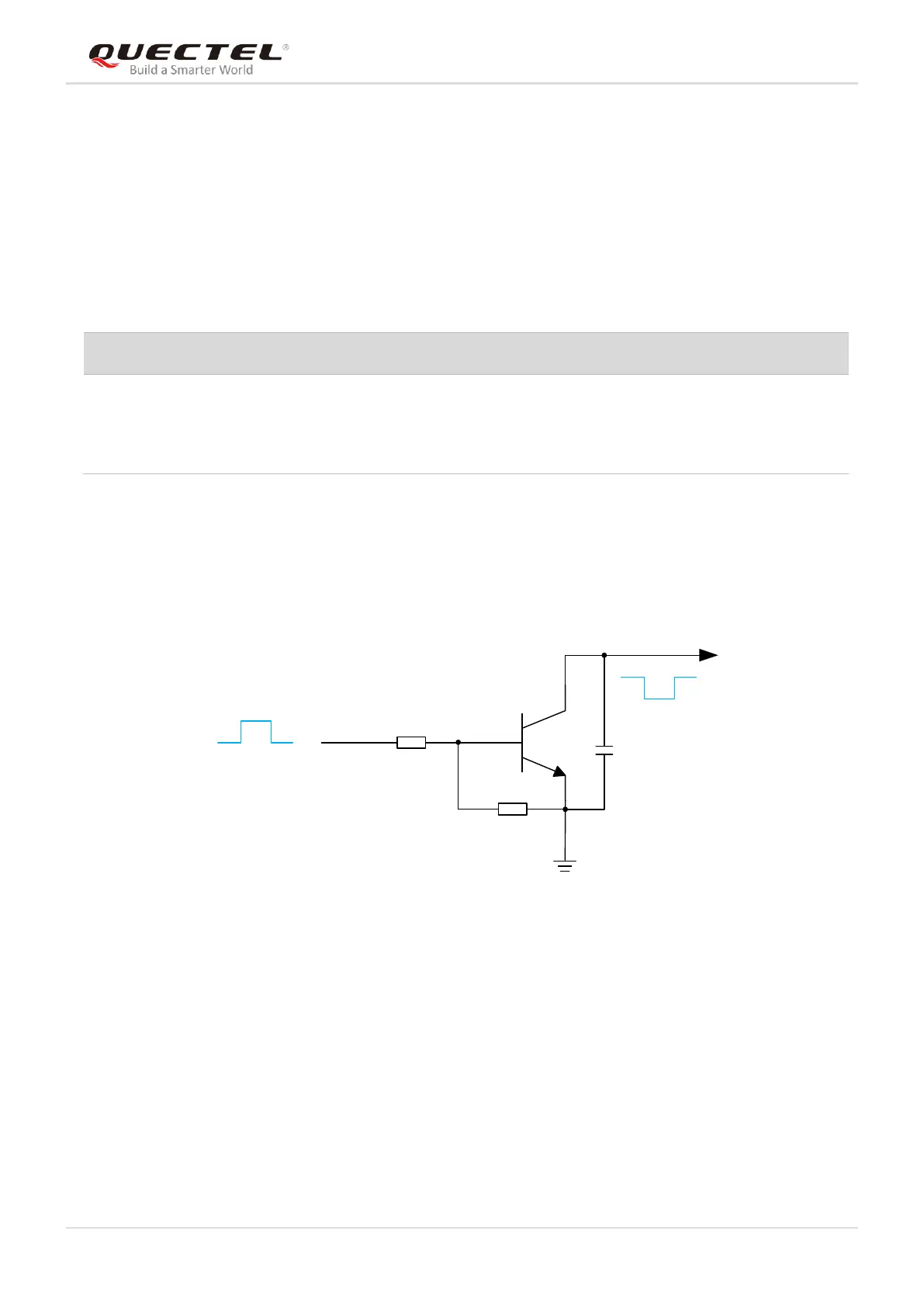

Figure 6: Turn on the Module Using Driving Circuit
Another way to control the PWRKEY is using a button directly. When pressing the key, electrostatic strike
may generate from the finger. Therefore, a TVS component is indispensable to be placed nearby the
button for ESD protection. A reference circuit is shown in the following figure.
Pin Name
Pin No.
Description
DC Characteristics
Comment
PWRKEY
15
Turn on/off the module
Vnorm=0.8V
V
IL
max=0.5V
The output voltage is
0.8V because of the
diode drop in the
Qualcomm chipset.
