7 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in mm,
and the tolerances for dimensions without tolerance values are ±0.05mm.
7.1. Mechanical Dimensions of the Module

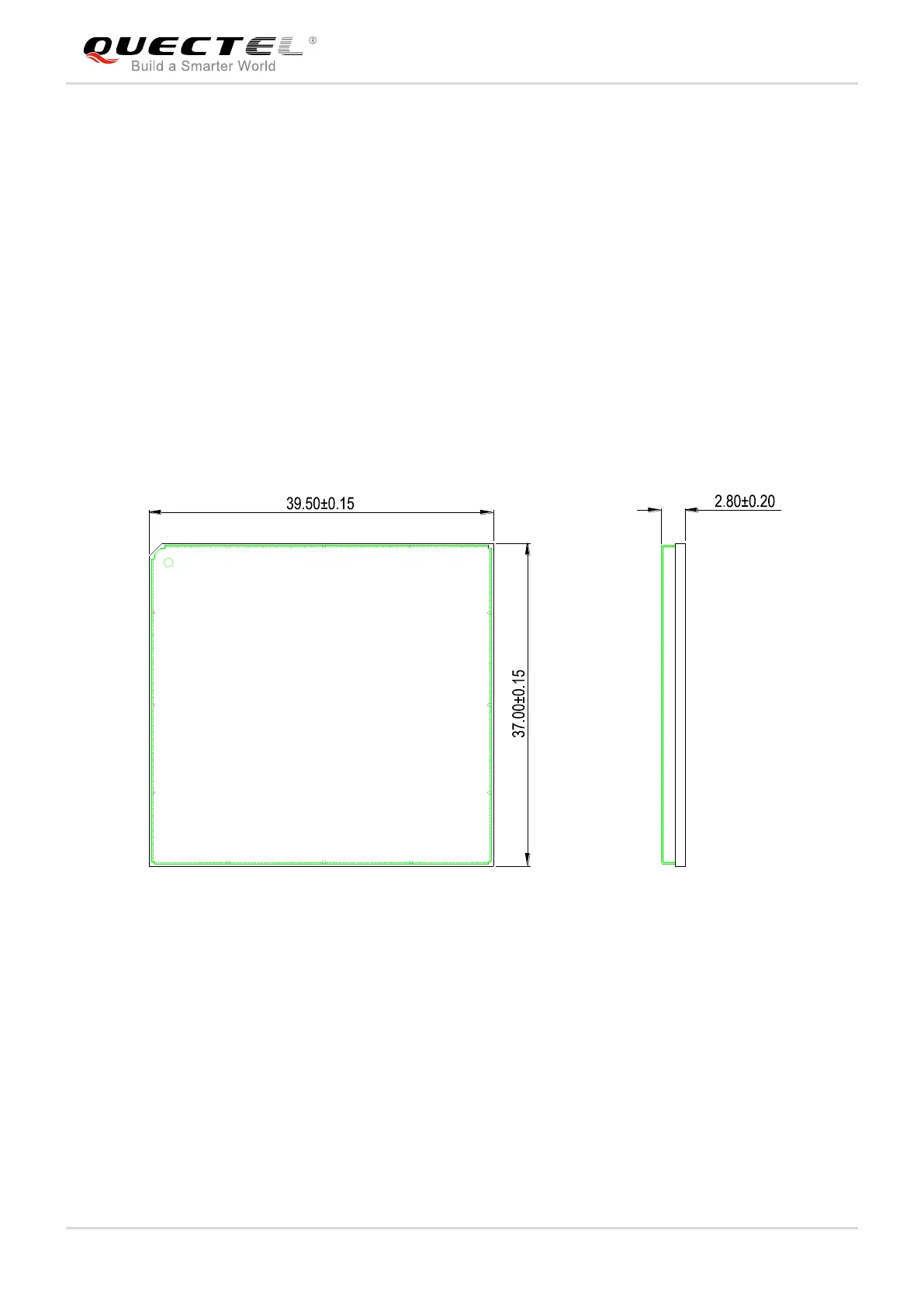

Figure 43: Module Top and Side Dimensions
